Wireless specifications | 2.4GHz 2*2: maximum rate 400Mbps; 5GHz 2*2: maximum rate 867Mbps |
Antenna: External 6dBi non-removable omnidirectional antennas | |
Support 802.11a/b/g/n/ac/ac Wave2, MU-MIMO | |
Frequency band: Independent 2.4GHz and 5GHz modules, supporting dual frequency integration | |
Support beamforming | |
Wi-Fi channel: | |
2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13 | |
5GHz Channel: 36,40,44,48,149,153,157,161,165 | |

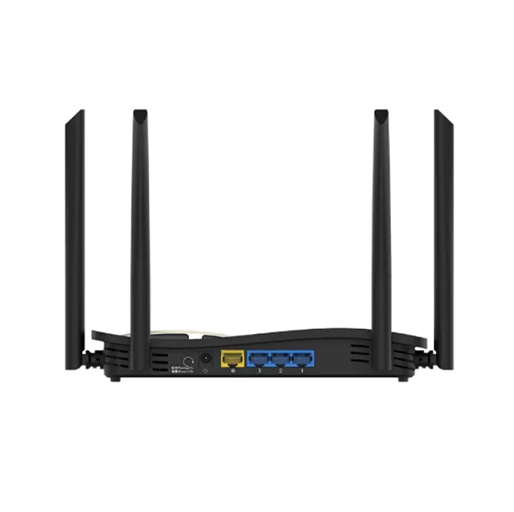

Ports | 1 10/100/1000M WAN port(Auto MDI/MDIX) |
3 10/100/1000M LAN ports(Auto MDI/MDIX) | |
1 blue system LED indicator, 4 network port LED indicators | |
1 device pairing/factory reset button | |
1 power input interface | |
Physical specifications | Dimensions:220x140x36mm (W×D×H, excluding antennas) |
Weight:0.98kg(entire equipment including packaging) | |
Power supply | Power specification: DC12V 1.5A |
Maximum power: <14W | |
Certification | CCC,SRRC |
Operating environment | Operating temperature: 0-45℃ |
Storage temperature: -40-70℃ | |
Operating humidity: 5%-95%RH (non-condensing) | |
Storage humidity: 5%-95%RH (non-condensing) |
