|Max Configurable Power (Watts)||865 Watts / 1.5kVA|
|Output Frequency (sync to mains)||50/60 Hz +/- 1 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised|
|Waveform type||Stepped approximation to a sinewave|
|Transfer Time||10 ms typical : 12 ms maximum|
|Input frequency||50 Hz +/- 1 Hz, 60 Hz +/- 1 Hz|
|Input voltage range for main operations||156 – 300 Adjustable, 176 – 294V|
|Batteries & Runtime|
|Typical recharge time||8hour(s)|
|Nominal Battery Voltage||24 V|
|Expected Battery Life (years)||3 – 5|
|Battery Charge Power (Watts)||23 Watts|
|Communications & Management|
|Interface Port(s)||Optional Simple Signalling RS232 cable, USB|
|Control panel||Multifunction LCD status and control console|
|Surge Protection and Filtering|
|Surge energy rating||441Joules|
|Data Line Protection||RJ11 modem/fax/DSL protection (two wire single line), RJ45 modem/fax/DSL protection (four wire dual line)|
Computers & Laptops, Power Accessories, UPS & Accessories

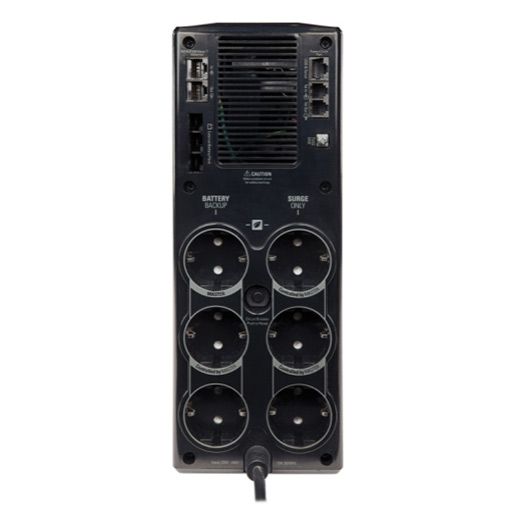

APC Power-Saving Back-UPS Pro 1500, 1500VA, 230V, LCD, 6 Schuko CEE 7 outlets
Out of stock
Out of stock
Order now & Get it delivered Today!!
- Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms
Provides notification of changing utility power and UPS power conditions
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Battery replacement without tools
Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
- Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
- Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- Extendable Run Time
Meet long run-time needs.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
- LCD display
Provides schematic overview of critical data for guided operation and troubleshooting on color LCD touch-screen.
- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Power-saving outlets
Automatically cuts power to idle equipment to conserve electricity.
- Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
- Safety-agency approved
The UPS is UL1778 Listed
- Serial connectivity
Provides management of the UPS via a serial port.
- Telephone dataline surge protection
Provides protection of connected equipment from power surges traveling on telephone lines.
- Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
- USB connectivity
Provides management of the UPS via a USB port (not available on all models).
- User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
