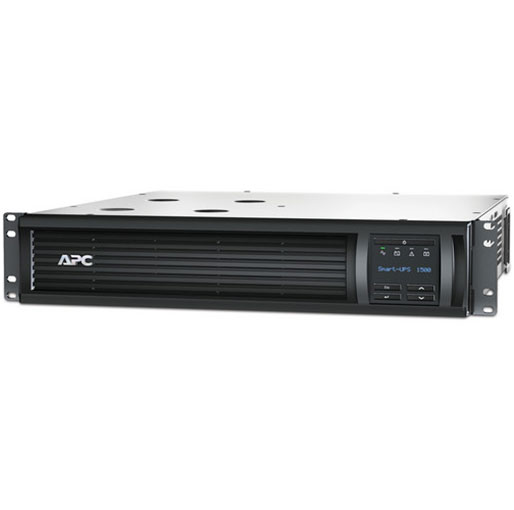

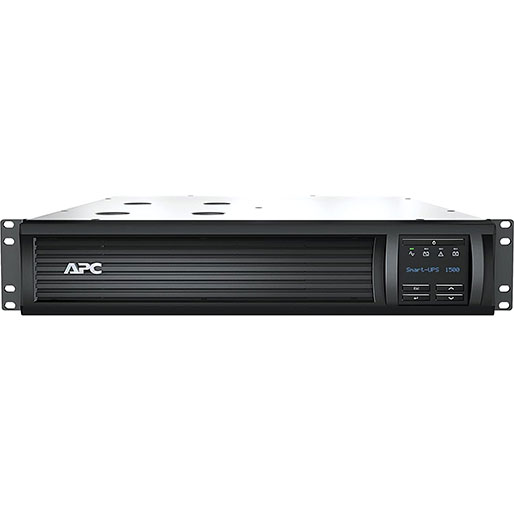

APC Smart-UPS 1500VA LCD Rack Mount 2U (230V)

QAR 3,299

Availability:

Out of stock

SKU: SMT1500RMI2U
MFR SKU: SMT1500RMI2U
Categories: , ,

  • Output: 1000W / 1500VA
  • Input: 230V
  • 4 x Battery-Powered Outlets
  • 4 x IEC 320 C13, 2 x IEC Jumpers
  • Recharge Time 3 Hours
  • Audible Alarm
  • SmartSlot x 1, RJ-45, USB
  • LED Status Indicators
  • Cold Start / Hot Swap Batteries
  • Delivers Battery Powered AC
  • Output: 1000W / 1500VA
  • Input: 230V
  • 4 x Battery-Powered Outlets
  • 4 x IEC 320 C13, 2 x IEC Jumpers
  • Recharge Time 3 Hours
  • Audible Alarm
  • SmartSlot x 1, RJ-45, USB
  • LED Status Indicators
  • Cold Start / Hot Swap Batteries
  • Delivers Battery Powered AC

QAR 3,299

Out of stock

Order now & Get it delivered Today!!

Total Outlets 4 x IEC-320 C13
Plug Type IEC-320 C14
SmartSlot Interface 1
Data Line Protection RJ45
Communications Serial via RJ45
USB via Type-B
Emergency Power Off (EPO) Support Yes
Noise Filtering 0.3%

Power

Surge Energy Rating 459 Joules
Maximum Wattage 1000 W
Nominal Input Voltage 230 VAC
Input Voltage Adjustable Range 151 to 302 VAC
Input Frequency 50/60 Hz ± 3 Hz (Auto Sensing)
Output Voltage Range 220 to 240 VAC
Output Frequency 50/60 Hz ± 3 Hz
Voltage Distortion <5%
Load Capacity 1500 VA
Thermal Dissipation 90 BTU/Hour
Waveform Sine Wave

Battery

Cells 1
Chemistry Lead-Acid
Recharge Time 3 Hours

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 95%
Storage Temperature 5 to 113°F / -15 to 45°C
Storage Humidity 0 to 95%
Operating Altitude 10,000′ / 3000 m
Storage Altitude 50,000′ / 15,000 m
Noise Level 46 dBA
Certifications REACH, RoHS, as per Manufacturer

Physical

Rackmount Size 2 RU (with Included Hardware)
Dimensions (W x H x D) 17 x 3.5 x 18″ / 432 x 89 x 457 mm
Weight 63 lb / 28.6 kg

The APC Smart-UPS 1500VA LCD Rack Mount 2U (230V) offers efficient network power protection to your servers, point-of-sale, routers, switches, hubs, and other network devices. With Automatic Voltage Regulation, the unit offers higher application availability by correcting low and high voltage conditions without utilizing the battery. Its intuitive LCD interface offers precise data in multiple languages along with the ability to configure the equipment locally with easy to use navigation keys. Additionally, the unit features a Green operating mode that bypasses unused electrical components in good power conditions to attain high operating efficiency without compromising with any protection.

With an intelligent battery management, the APC Smart-UPS 1500VA LCD Rack Mount 2U (230V) maximizes battery performance, life, and reliability via precision charging. The unit houses a power condition that offers protection for connected loads from surges, spikes, lightning, and other power disturbances. It boasts temperature-compensated battery charging capability to enhance battery life by controlling the charge voltage as per battery temperature. Apart from battery failure notification, the Smart-UPS also conducts a periodic battery self-test to ensure early detection of a battery that needs to be replaced. It comes with pure sine wave output on battery that simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Featuring an automatic self-test, the Smart-UPS automatically starts up the connected equipment upon the return of utility power and restarts loads after it is shutdown. With network manageability, the unit provides remote management over the network. It features audible alarms that actively inform you whether the unit is on battery, the battery is low, or if there is an overload condition. The equipment has an energy meter that displays actual kilowatt hours of usage.

Through LED status indicators, the Smart-UPS updates you on the unit and power status. In addition to serial connectivity for managing the UPS via a serial port, the unit has USB connectivity that enables you to manage the UPS via a USB port. Hot-swappable batteries ensure clean, uninterrupted power to protect equipment while batteries are being replaced. The UPS comes with resettable circuit breakers for a quick recovery from overloaded events.

The Smart-UPS X 1500 VA Rack/Tower LCD 230 V has a single switched outlet group that can be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. High on online efficiency, the UPS reduces utility costs and generates less heat. The SmartSlot customizes UPS capabilities with management cards. As the unit is cold-start capable, it offers temporary battery power when the utility power is out.

With adjustable voltage-transfer points, Smart-UPS widens the input voltage window or tightens the output voltage regulation for maximizing useful battery life. You can also use this equipment for optimal performance with adjustable voltage sensitivity in some specific power environments or generator applications. The unit has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Network Power Protection
Offers efficient network power protection to your servers, point-of-sale, routers, switches, hubs, and other network devices

AVR
Automatic Voltage Regulation – provides higher application availability by correcting low and high voltage conditions without utilizing the battery

LCD Interface
Intuitive LCD interface – offers precise data in multiple languages along with the ability to configure the equipment locally with easy to use navigation keys

Battery Management
Intelligent battery management – maximizes battery performance, life, and reliability via precision charging

Protected Power
Power condition – offers protection for connected loads from surges, spikes, lightning, and other power disturbances

LED Status
LED status indicators – update you on the unit and power status

4 x IEC 320 C13
Single switched outlet group – can be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding

Alarmed
Audible alarms to send notifications of changing utility power and UPS conditions

Circuit Breakers Reset
Resettable circuit breakers for a quick recovery from overloaded events

SmartSlot
SmartSlot – customizes UPS capabilities with management cards

Cold Start
Cold-start capability – offers temporary battery power when the utility power is out
