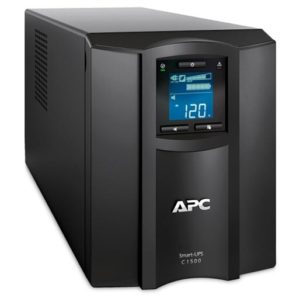

APC Smart-UPS C 1500VA LCD 230V with SmartConnect

Availability:

Out of stock

SKU: UPS-APC-SMT-1500VA
MFR SKU: SMC1500IC
Categories: , ,

  • Cold-start capable
  • Green mode
  • High online efficiency
  • LCD Status Display
  • Pure sine wave output on battery
  • SmartConnect
  • Temperature-compensated battery charging

QAR 2,099

Out of stock

Order now & Get it delivered Today!!

Output
Output power capacity900Watts / 1.5kVA
Max Configurable Power (Watts)900Watts / 1.5kVA
Nominal Output Voltage230V
Output Voltage DistortionLess than 5 %
Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages220, 240
Topology Line interactive Waveform typeSine wave
Output Connections(8) IEC 320 C13 (2) IEC Jumpers
Transfer Time6 ms typical

10 ms maximum

Input
Input frequency50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations170 – 300 Adjustable, 180 – 287V
Other Input Voltages220, 240
Batteries & Runtime
Battery typeLead-acid battery
Typical recharge time3hour(s)
Replacement BatteryRBC6
Expected Battery Life (years)3 – 5
RBC Quantity1
Battery Charge Power (Watts)96Watts
Battery Volt-Amp-Hour Capacity288
Communications & Management
Interface Port(s)USB
Control panelMultifunction LCD status and control console
Audible AlarmAlarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rating459Joules
FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height219MM, 21.9CM
Maximum Width171MM, 17.1CM
Maximum Depth439MM, 43.9CM
Net Weight20.1KG
Shipping weight22.64KG
Shipping Height330MM, 33.0CM
Shipping Width330MM, 33.0CM
Shipping Depth590MM, 59.0CM
ColorBlack
Master Carton Units1.0
Units per Pallet18.0
Environmental
Operating Temperature0 – 40 °C
Operating Relative Humidity0 – 95 %
Operating Elevation0 – 3048meters
Storage Temperature-15 – 45 °C
Storage Elevation0 – 15240meters
Audible noise at 1 meter from surface of unit45.0dBA
Online thermal dissipation135.0BTU/hr
Conformance
ApprovalsC-Tick, CE, GOST, UL 1778, VDE
Sustainable Offer Status
RoHSCompliant

APCâ„¢ award-winning Smart-UPSâ„¢ is the most popular UPS in the world for servers, storage and network power protection. Smart-UPS provides availability and manageability to your network allowing you to focus on business growth instead of business downtime. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power.
Connected Smart-UPS units boast an ingenious networking feature that makes Smart-UPS even more adaptable and easier to deploy: APC SmartConnect — a feature which allows you to view the status of your UPS through a secure web portal. Through this innovative remote monitoring interface, you’ll receive automatic notifications, firmware updates, and advanced support. APC SmartConnect’s easy-to-use network connectivity provides added value — and more important — added peace of mind.

Key Features

  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utility costs, generates less heat.
  • LCD Status Display
    Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • SmartConnect
    Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.

Adaptability

  • Adjustable voltage sensitivity
    Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Adjustable voltage-transfer points
    Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Availability

  • Power conditioning
    Protects connected loads from surges, spikes, lightning, and other power disturbances.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.
  • Disconnected battery notification
    Warns when a battery is not available to provide backup power.
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Automatic restart of loads after UPS shutdown
    Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test
    Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Boost and Trim Automatic Voltage Regulation (AVR)
    Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Manageability

  • USB connectivity
    Provides management of the UPS via a USB port (not available on all models).
  • Network manageable
    Provides remote power management of the UPS over the network.
  • Serial connectivity
    Provides management of the UPS via a serial port.
  • Audible alarms
    Provides notification of changing utility power and UPS conditions.
  • LED status indicators
    Quickly understand unit and power status with visual indicators.

Serviceability

  • User-replaceable batteries
    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Hot-swappable batteries
    Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Predictive failure notification.
    Provides early-warning fault analysis ensuring proactive component replacement.
  • Resettable circuit breakers
    Enables a quick recovery from overload events.

Safety

  • Safety-agency approved
    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
