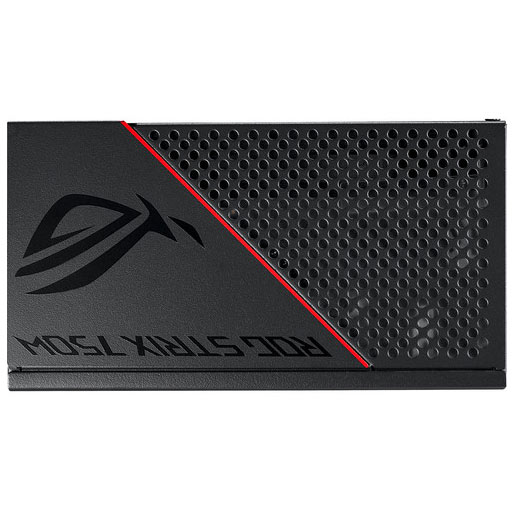

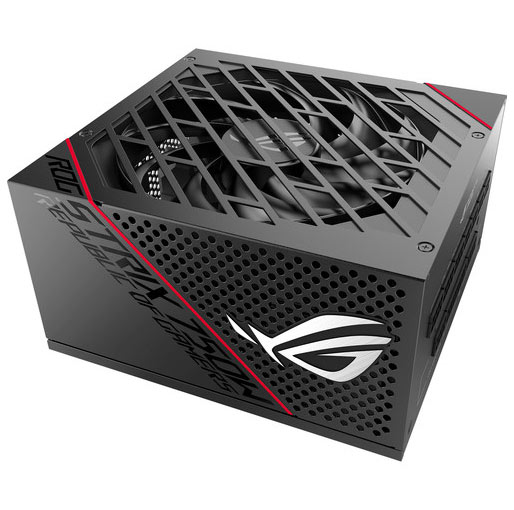

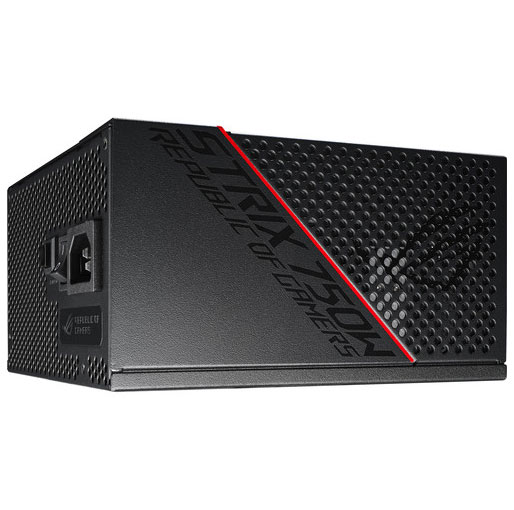

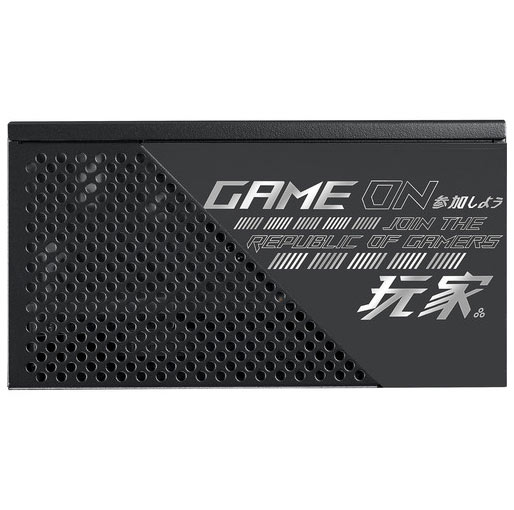

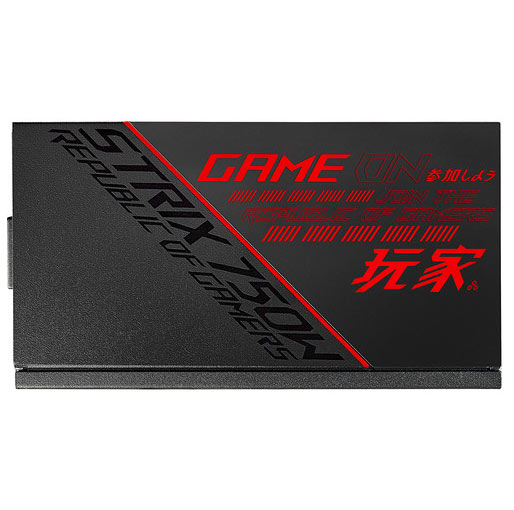

ASUS Republic of Gamers ROG STRIX 750W 80 Plus Gold Modular ATX Power Supply

QAR 699

Availability:

Out of stock

SKU : SMPS-ASUS-ROG-STRIX-750G • MFR SKU : ROG-STRIX-750G

  • 750W Single +12V Rail
  • 135mm Cooling Fan
  • 4 x 6+2-Pin PCIe Connectors
  • 8 x SATA Connectors
  • 3 x 4-Pin Peripheral Connectors
  • Fully Modular Cables
  • Cosmetic Customization
  • 750W Single +12V Rail
  • 135mm Cooling Fan
  • 4 x 6+2-Pin PCIe Connectors
  • 8 x SATA Connectors
  • 3 x 4-Pin Peripheral Connectors
  • Fully Modular Cables
  • Cosmetic Customization

QAR 699

Out of stock

Brand ASUS
Connectivity

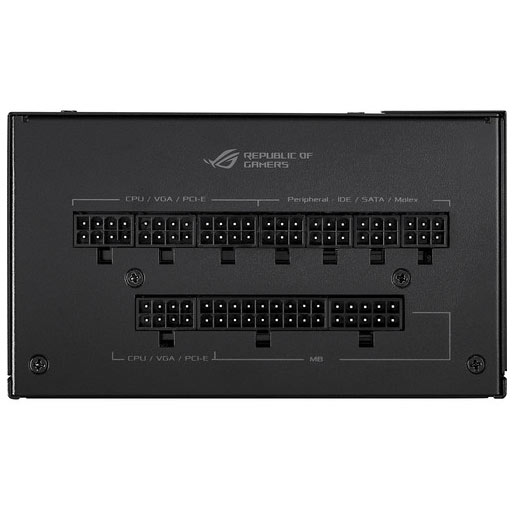

Total Connectors 1 x 24-Pin Motherboard

2 x 4+4-Pin CPU

4 x 6+2-Pin PCIe

8 x 15-Pin SATA

3 x 4-Pin Peripheral / Molex

Cable Design Modular
PCIe Connector Distances 26.6″ / 675 mm
SATA Connector Distances 31.9″ / 810 mm
Peripheral Connector

Distances

17.7″ / 450 mm
ATX Connector Distance 24″ / 610 mm
EPS Connector Distances 39.4″ / 1000 mm
Electrical
Total Wattage 750 W
Number of +12 V Rails 1
Max Load for +12 V 62 A
Max Load for +3.3 V 20 A
Max Load for +5 V 20 A
Max Load for +5 Vsb 3 A
Max Load for -12 V 0.3 A
AC Input Power 100 to 240 VAC, 50 / 60 Hz
General
Efficiency Rating 80 PLUS Gold

Cooling

Fan Size 135 mm
Bearing Type Ball
Physical
Form Factor ATX
Compliance ATX 12 V
Protection Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection
Weight 4.01 lb / 1.82 kg

The ASUS Republic of Gamers STRIX 750W 80 Plus Gold Modular ATX Power Supply features efficient power delivery, 0 dB technology, and cosmetic customization. Thanks to its fully modular design, users can store unused cables to eliminate clutter and improve airflow within their system. It has a total of one 24-pin motherboard connector, two 4+4-pin CPU connectors, four 6+2-pin PCIe connectors, eight SATA connectors, and three 4-pin peripheral/Molex connectors. With these, it’s well suited for most gaming and enthusiast setups. Moreover, integrated heatsinks help to further dissipate heat and reduce fan noise, which only kicks in when your system hits 40% TDP. A few magnetic stickers are included for users to customize its appearance.

ROG Heatsinks
The ROG STRIX Power Supply is equipped with ROG heatsinks to help dissipate heat from internal components. This in turn enables the fan to run slow and generate less noise.

Axial-Tech Fan Design
The Axial-tech fan design features a smaller fan hub, long blades, and a barrier ring to increase downwards air pressure, which helps to keep things cool at low rpms.

Dual Ball Fan Bearings
Dual ball bearing design extends the fan’s lifespan for longer user.

0dB Technology
To keep things quiet, the fan is programmed to turn on only after your system reaches 40% TDP.

80 Plus Gold
An 80 Plus Gold certification ensures high efficiency and increased reliability.

Cosmetic Customization
The ROG STRIX comes with a few sets of magnetic stickers that users can attach to the power supply.
