|Graphic Engine||AMD Radeon RX VEGA56|
|Bus Standard||PCI Express 3.0|
|Video Memory||8GB HBM2|
|Engine Clock||GPU Boost Clock : 1573 MHz GPU Base Clock : 1297 MHz|
|Memory Speed||800 MHz|
|Resolution||Digital Max Resolution 7680 x 4320|
|Interface||Yes x 1 (Native DVI-D)
Yes x 2 (Native HDMI2.0b)
Yes x 2 (Native DisplatPort 1.4)
|Maximum Display Support||4|
|Accessories||1 x ROG Velcro Hook & Loop
1 x Quick Guide
1 x Power cable
|Software||ASUS GPU Tweak II & Drivers: please download all software from the support site.|
|Dimensions||11.73 ” x 5.47 ” x 2.07 ” Inch 29.8 x 13.9 x5.28 Centimeter|
|Graphics Card Power Consumption||Above 300W|
|Power Connectors||2 x 8-pin|

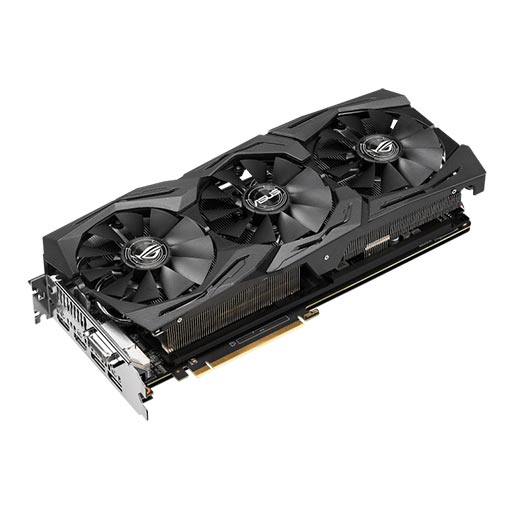

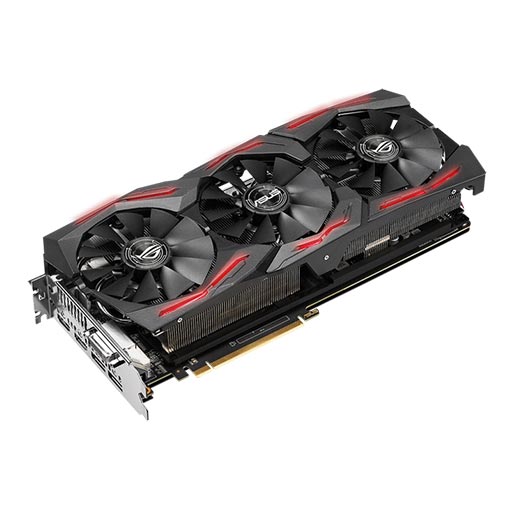

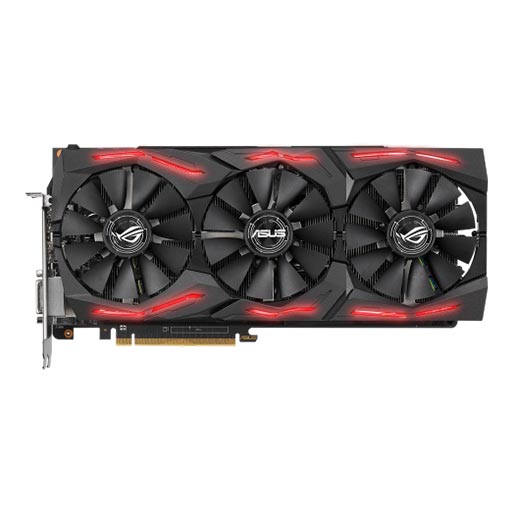

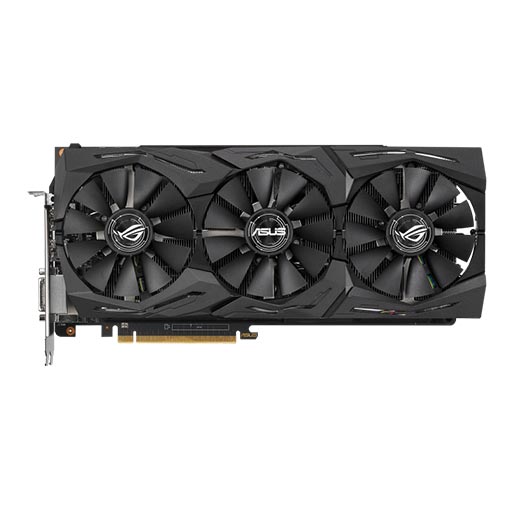

ASUS ROG Radeon RX Vega 56 STRIX-RXVEGA56-O8G-GAMING 8GB 2048-Bit HBM2 PCI Express 3.0 HDCP Ready CrossFireX Support Gaming Video Graphics Card
Out of stock
Out of stock
Send me an Email when the product is back in stock:
OUTSHINE THE COMPETITION
ROG Strix RX VEGA56 gaming graphics cards are packed with exclusive ASUS technologies, including all-new MaxContact Technology that is 2X more contact with GPU for improved thermal transfer, and Patented Wing-Blade IP5X-Certified Fans for maximum airflow and longer fan lifespan. While ASUS FanConnect II features 4-pin, hybrid-controlled headers connected to system fans for optimal system cooling. ASUS Aura Sync RGB LED synchronization enables a gaming system personalization and VR-friendly HDMI ports let gamers easily enjoy immersive virtual reality experiences. ROG Strix RX VEGA56 also has GPU Tweak II with XSplit Gamecaster that provides intuitive performance tweaking and instant gameplay streaming.
PERSONALIZED GAMING STYLE
Featuring Aura RGB Lighting on both the shroud and backplate, ROG Strix graphics cards are capable of displaying millions of colors and six different effects for a personalized gaming system. ROG Strix graphics cards also feature ASUS Aura Sync, RGB LED synchronization technology that enables complete gaming system personalization when the graphics card is paired with an Aura-enabled gaming motherboard.
40% More Heat Dissipation Area
20%* Cooler and 3X Quieter Gaming Performance
New ROG Strix graphics are constructed with a 2.5-slot width, providing 40% more heat sink surface area for heat dissipation compared to previous 2-slot designs for dramatically cooler and quieter performance.
2X More Contact with GPU for Improved Thermal Transfer
MaxContact is an industry-first GPU cooling technology, featuring an enhanced copper heat spreader that directly contacts the GPU. MaxContact utilizes precision machining to provide a surface that makes up to 2X more contact with the GPU than traditional heat spreaders, resulting in improved thermal transfer.
Patented Wing-Blade Design
Max Air Flow with 105% More Air Pressure
Patented wing-blade fans delivers maximum air flow and 105% greater static pressure over the heat sink, while operating at an up to 3X quieter volume than reference cards.
Game in Complete Silence
Innovative 0dB technology stops the fan completely when the GPU temperature remains below a set level*, letting you enjoy light gaming in complete silence.
IP5X-Certified Dust Resistance
Longer Fan Lifespan
The fans in ROG Strix graphics cards are certified under the International Protection Marking (IP code) as IP5X dust resistant for improved reliability and a longer lifespan. This stringent certification process ensures ROG Strix graphics cards provide optimal fan performance, even under severe conditions.
ASUS FanConnect II
Optimal System Cooling
ASUS FanConnect II features two 4-pin, hybrid-controlled headers that can be connected to both PWM and DC system fans for optimal system cooling. The connected fans reference both the GPU and CPU, operating automatically based on the one with the higher temperature. A comprehensive set of tuning options allow you to tune fan speeds for efficient cooling.
Industry-only 100% Automated Production Process
All ASUS graphics cards are now produced using Auto-Extreme Technology, an industry-exclusive, 100% automated production process that incorporates premium materials to set a new standard of quality. Auto-Extreme Technology ensures consistent graphics card quality as well as improved performance and longevity. Since the introduction of Auto-Extreme technology, reliability has improved by 30%. This new manufacturing process is also environmentally friendly, eliminating harsh chemicals and reducing power consumption by 50%.
Super Alloy Power II
Enhanced Durability and Efficiency
ASUS engineers have integrated premium alloy components into their graphics card designs to reinforce overall reliability. Super Alloy Power II components greatly enhance efficiency, reduce power loss and achieve thermal levels that are approximately 50% cooler than previous designs.
VR-friendly HDMI Ports
Easily Enjoy Immersive Virtual Reality Experience
ROG Strix graphics cards have two HDMI ports for connecting a VR device and display at the same time, so you can enjoy immersive virtual reality experiences anytime without having to swap cables.
Your Need for Speed, Fulfilled
The Best Combo Ultra-smooth Gameplay
AMD FreeSync™ technology resolves the communication issues between processor and monitor, eliminating image tears and choppiness for effortlessly smooth gameplay. With ROG Strix gaming graphics cards and ASUS MG gaming monitors, scenes appear instantly, objects look sharper, and gameplay is super smooth, giving you a stunning visual experience and a serious competitive edge.
GPU Tweak II with XSplit Gamecaster
Intuitive Performance Tweaking
Redesigned with an intuitive, all-new UI, GPU Tweak II makes overclocking easier and more visual than ever, while still retaining advanced options for seasoned overclockers. With one click, the new Gaming Booster function maximizes system performance by removing redundant processes and allocating all available resources automatically.
