Asus ROG STRIX B550-XE GAMING WIFI Motherboard

QAR 1,399

Availability:

In stock


  • AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

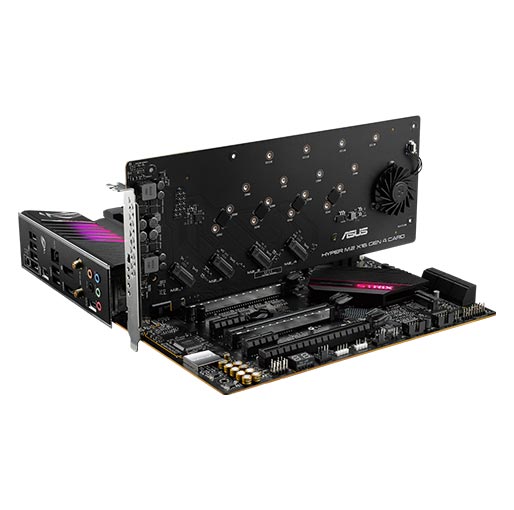

  • Best gaming connectivity: PCIe® 4.0-ready, two onboard M.2 slots and four additional M.2 slots on the bundled ASUS Hyper M.2 x16 Gen 4 Card, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort™ 1.2 output
  • Robust power solution: 14+2 power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
  • Comprehensive cooling: Actively cooled VRM heatsinks with L-shaped heatpipe and integrated aluminum I/O cover, plus dedicated M.2 heatsinks
  • Superfast networking: Onboard WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
  • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-Code and FlexKey
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and addressable Gen 2 RGB headers
  • Industry-leading Gaming Audio: Audio USB Type-C®, AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio
  • AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Best gaming connectivity: PCIe® 4.0-ready, two onboard M.2 slots and four additional M.2 slots on the bundled ASUS Hyper M.2 x16 Gen 4 Card, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort™ 1.2 output
  • Robust power solution: 14+2 power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
  • Comprehensive cooling: Actively cooled VRM heatsinks with L-shaped heatpipe and integrated aluminum I/O cover, plus dedicated M.2 heatsinks
  • Superfast networking: Onboard WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
  • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-Code and FlexKey
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and addressable Gen 2 RGB headers
  • Industry-leading Gaming Audio: Audio USB Type-C®, AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio

QAR 1,399

In stock

Order By Call
Brand ASUS
Series ROG
Model Strix B550-XE Gaming WiFi
CPU Socket Type AM4
CPU Type AMD AM4 Socket for AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series Desktop Processors
Chipset AMD B550
Number of Memory Slots 4×288pin
Memory Standard AMD Ryzen 5000 Series / 3000 Series Desktop Processors:
4866(O.C)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C)/ 4133(O.C)/ 4000(O.C)/ 3866(O.C)/ 3600(O.C)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory
AMD Ryzen 4000 G-Series Desktop Processors:
DDR4 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Maximum Memory Supported 128GB
Channel Supported Dual Channel
PCI Express 4.0 x16 AMD Ryzen 5000 Series / 3000 Series Desktop Processors*
2 x PCIe 4.0 x16 SafeSlots (support x16 or x8/x8 modes)
AMD Ryzen 4000 G-Series Desktop Processors
2 x PCIe 3.0 x16 SafeSlots (support x16 or x8/x8 modes)
PCI Express 3.0 x16 AMD B550 chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
* PCIEX16_3 shares bandwidth with PCIEX1_1 and PCIE X1_2.
PCI Express x1 2 x PCIe 3.0 x1 slots
SATA 6Gb/s 6 x SATA 6Gb/s
M.2 AMD Ryzen 5000 Series / 3000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen 4000 G-Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)AMD B550 chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

* When M.2_2 slot is populated, SATA6G_5/6 ports will be disabled

SATA RAID 0/1/10
Onboard Video Chipset Supported only by CPU with integrated graphic
1 x DisplayPort 1.2
1 x HDMI 2.1 (4K@60HZ)
* Graphics specifications may vary between CPU types.
Audio Chipset ROG SupremeFX Surround Sound High Definition Audio CODEC S1220A
Audio Channels 7.1 Channels
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 7.1-Channel audio.
LAN Chipset Intel I225-V
Max LAN Speed 10/100/1000/2500Mbps
Wireless LAN Intel Wi-Fi 6 AX200
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4/5GHz transfer speed
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth Bluetooth v5.1
* BT 5.1 function will be ready in Windows 10 build 19041 or later
Back I/O Ports 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
4 x USB 2.0 ports
1 x USB 2.0 port (1 x audio USB Type-C)
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB 1 x USB 3.2 Gen2 connector support additional 1 USB ports (20-pin, Type-C)
1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors 1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
1 x Thunderbolt header(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x Q-Code
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
Features Multi-GPU Support:
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX TechnologySoftware Features:
ROG Exclusive Software
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS Sound Unbound
– Overwolf
– Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
– Aura Creator
– Aura Sync
Ai noise cancelling microphone
AI Suite 3:
– 5-way Optimization
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo APP
– EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
FlexKey

ASUS Special Features:
Aura Sync
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)
ASUS Q-Design
– ASUS Q-CODE
– ASUS Q-DIMM
– ASUS Q-LED (DRAM [yellow], CPU [red], VGA [white], Boot Device [yellow green)
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS Flashback button
-BIOS FlashBack LED
-Clear CMOS header
-Procool
-Pre-mounted I/O shield
– SafeSlot
Rear audio USB Type-C connector

BIOS:
256MB Flash ROM, UEFI AMI BIOS

Manageability:
WOL by PME, PXE

Operating System:
Windows 10 64-bit

AMD B550 Ryzen AM4 ATX Gaming motherboard with PCIe® 4.0, 16 power stages, Intel® 2.5 Gb Ethernet, WiFi 6 (802.11ax), two onboard M.2 slots and four additional M.2 slots on the bundled ASUS Hyper M.2 x16 Gen 4 Card, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting.

Unleash Unlimited Performance
ROG Strix B550-XE Gaming WIFI provides robust power delivery and comprehensive cooling to handle the latest Ryzen processors. It also supports faster memory and superfast high-capacity storage, providing everything you need to create a PC that’s ready to play in the big leagues.

PCIe 4.0-Ready
ROG Strix B550-XE Gaming WIFI features two onboard M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the latest AMD Ryzen processors. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

Play Your Own Style
The cyberpunk-inspired aesthetics of ROG Strix B550-XE Gaming WIFI are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.

UNDENIABLY ROG STRIX
ROG Strix B550-XE Gaming WIFI embodies the ROG spirit with eye-catching aesthetics. Parallel strakes cutting across the upper-left to the bottom-right of the board add a ferocious look, while embedded Aura RGB LEDs illuminate the aluminum I/O shroud and Strix logo. The LEDs can be synced with other Aura-compatible hardware for a unified look. These new design features move ROG Strix boldly into the future, while clearly reflecting the series’ gaming roots.
