|CPU||Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core , Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
|Memory||5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Supports Intel® Extreme Memory Profile (XMP)
|Expansion Slots||Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot(s)*
– Intel® 11th Gen processors supports PCIe 4.0 x16 mode
|Storage||Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel®11th Gen Processors
Intel® Z590 Chipset
|Wireless & Bluetooth||Intel® Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2 hardware ready**
|USB||1 x Thunderbolt™ 4 port(s) (1 x USB Type-C®) with up to 5V/3A, 15W charging support
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
4 x USB 2.0 port(s) (4 x Type-A)
Front USB:Total 5 ports
1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
– Audio Shielding
– ALC4080 + Savitech SV3H712 AMP
– LED-illuminated audio jacks
– Premium Japanese audio capacitors
|Intrernal I/O Connectors||Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connectorStorage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s portsUSB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 portsMiscellaneous
1 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
|Special Features||Extreme Engine Digi+
– 5K Black Metallic CapacitorsASUS Q-Design
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-SlotASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– Skived Fin heatsinkASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool II
– Pre-mounted I/O shield
– SafeSlotAURA Sync
– AURA RGB header(s)
– Addressable Gen 2 RGB header(s)ASUS HYDRANODE
– 1 x Chassis fan support* (CHA_FANP)
|Software Features||ROG Exclusive Software
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Anti-virus softwareASUS Exclusive Software
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA SyncTwo-Way AI Noise Cancelation
AI Suite 3
– 5-Way Optimization with AI Overclocking
Fan Xpert 4
– EZ update
AI Overclocking Guide
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
|BIOS||256 Mb Flash ROM, UEFI AMI BIOS|
|Manageability||WOL by PME, PXE|
4 x SATA 6Gb/s cables
1 x Panel cable
1 x ROG USB2.0 splitter cableMiscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
2 x M.2 SSD screw package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG thank you cardInstallation Media
1 x Support DVDDocumentation
1 x User manual
|Operating System||Windows 10 64bit|
|Form Factor||Mini ITX; 17cm x 17cm|

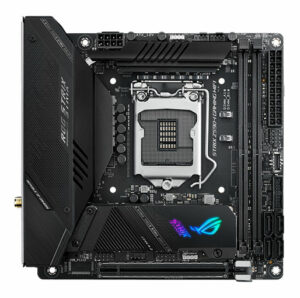

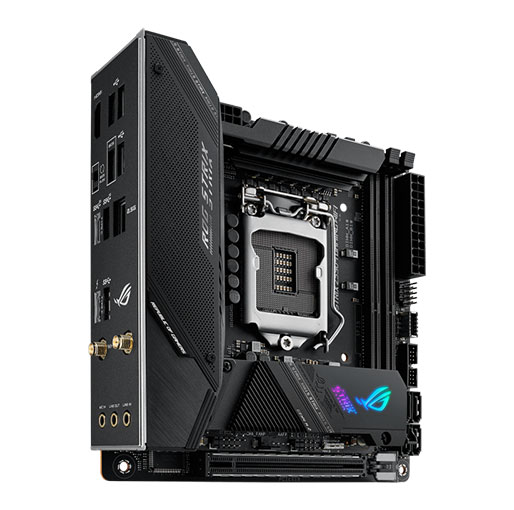

ASUS ROG STRIX Z590-I GAMING WIFI (90MB1680-M0EAY0) LGA 1200 Intel Z590 SATA 6Gb/s Mini ITX Intel Motherboard
Order now & Get it delivered Today!!
ROG STRIX Z590-I GAMING WIFI
Intel® Z590 LGA 1200 ITX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel® 2.5 Gb Ethernet, two M.2 slots with heatsinks, Thunderbolt™ 4 USB Type-C®, USB 3.2 Gen 2×2 USB Type-C®, SATA and Aura Sync RGB lighting
- Ready for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Optimal Power Solution: 8+2 power stages with ProCool II power connector, high-quality ferrite chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: VRM and aluminum I/O heatsink with two skived fins, L-shaped heatpipe, two onboard M.2 heatsinks, including an M.2 backplate and a skived fin for the PCIe 4.0 M.2 slot
- High-performance Networking: On-board Intel® WiFi 6E AX210 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI™ 2.0, two M.2 slots and USB 3.2 Gen 2×2 USB Type-C®
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation to simplify setup and improve performance
- DIY Friendly Design: Pre-mounted I/O shield, BIOS FlashBack™ and FlexKey
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and Gen 2 addressable header
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Any Mini-ITX build with the ROG Strix Z590-I Gaming WiFi motherboard as its backbone is going to punch well above its weight. With boosted power delivery and innovative cooling utilizing a skived-fin design, ROG Strix Z590-I Gaming WiFi is the perfect compact platform for 11th Generation Intel® Core™ processors.
ROG Strix Z590-I Gaming WiFi helps you get the most out of your gaming build with up-rated power delivery, optimized cooling, and intelligent controls that let you manage overclocking, cooling, networking and audio settings.
Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.
Teamed Power Stages
8+2 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.
Ferrite Chokes and Capacitors
Superior chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
The PCB design quickly dissipates heat around the VRM to improve overall system stability and provide the CPU with more overclocking headroom.
ProCool II Power Connector
The ASUS ProCool II socket is built to tight specifications to ensure flush contact with the PSU power lines. Metal armor improves heat dissipation, and lower impedance helps prevent hotspots and improves reliability.
Digi+ Power Control
The built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.
ROG Strix Z590-I Gaming WiFi includes the latest connectivity for supersmooth online experiences and blisteringly fast large file transfers. Superior audio performance gives you a massive advantage, allowing you to pick up on the smallest audio cues for a completely immersive gaming experience.
A Thunderbolt™ 4 USB Type-C® port delivers up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices and drives. In PCIe mode, the port provides 32 Gbps of bandwidth, which is ample to drive two external 4K displays.
PLAY IN STYLE
Pair ROG Strix Z590-I Gaming WiFi with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
Futuristic cybertext and diagonal mesh lines add a dash of aesthetic flair to the exemplary cooling and engineering that lies beneath, leaving no doubt Strix Z590-I Gaming WiFi is ROG.
ROG GIVES YOU MORE
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix.
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics.
