|Dimensions||16 x 15 x 8.6 Centimeter|
|Efficiency||80Plus Platinum (At 20%/50%/100% load AC 115V 60Hz and AC 230V 50Hz, the power efficiency is 90%/92%/89%.)|
|AC Input Range||100-240Vac|
|RGB Connector||Aura Sync|
|Thermal Features||ROG Thermal Solution|
|DC Output Voltage||+3.3V +5V +12V -12V +5Vsb|
|Maximum Load||20A 20A 71A 0.3A 3A|
|Package Contents||Power Cord x 1
Motherboard Power Cable (24-pin) x 1
CPU Cable (4+4-pin) x 2
PCI-E Cable (6+2-pin) x 3
SATA Cable x 3
Peripheral x 2
SATA to Peripheral Cable x 1
Addressable RGB Cables x 2
ROG Sticker x 1
ROG Cable Tie x 4
Sleeved Cable Combs (6-pin) x 2
Sleeved Cable Combs (8-pin) x 6
Sleeved Cable Combs (24-pin) x 2
Chassis Screws Package x 1
Cable Tie x 10
User Manual x 1
ASUS ROG Thor 850W Platinum Power Supply Unit with Aura Sync and OLED Display, 80 Plus Platinum Certification, Wing Blade Fan With 0db Technology
ASUS ROG Thor 850 80+ Platinum 850W Fully Modular RGB Power Supply with LIVEDASH OLED Panel and 10 Year Warranty
- 80+ Platinum certification for energy efficiency, built with 100% Japanese capacitors for stability and durability
- 0db cooling with dustproof IP5X wing-blade fans and integrated ROG heatsinks for cooler operation
- OLED Power Display : Real-time power draw monitoring with OLED Power Display
- Aura Sync addressable RGB lighting features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products

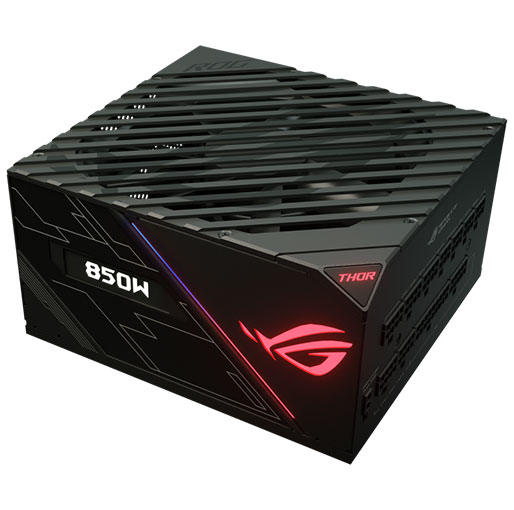

Inside and out, our first PSU is packed with innovative ideas. Externally, Aura Sync RGB illumination and an integrated OLED information panel enable unique customization and monitoring options for your ROG gaming rig. Under the hood, high-quality capacitors, a 135mm Wing-blade fan, and large heatsinks allow the ROG Thor 850W to achieve LAMBDA A+ and 80 PLUS® Platinum certifications, making it ideal for PC enthusiasts who demand performance perfection.
ASUS Aura Sync is an illumination ecosystem that lets you synchronize lighting effects across your gaming rig, components, and peripherals. The ROG Thor lets you take full control with internal Aura RGB LEDs that connect to the 4-1 addressable RGB header on select motherboards.
OLED POWER DISPLAY
The ROG Thor 850W Platinum is the first PC PSU in the world to feature an integrated OLED panel, offering a real-time display of power draw. Now you can see at a glance how much juice your rig is using.

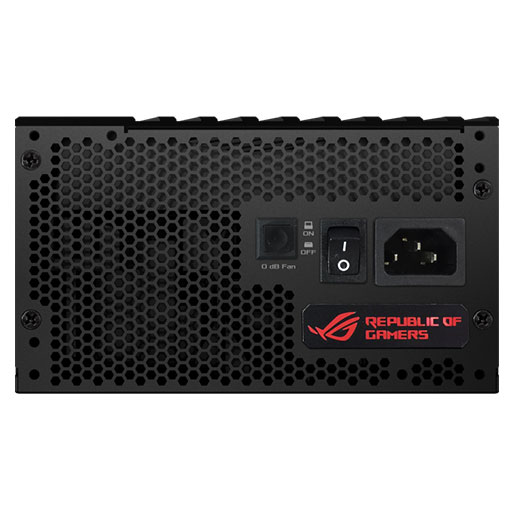

We’ve equipped the ROG Thor 850W Platinum with a 135mm patented Wing-blade fan to maximize component lifespan. IP5X dust-resistance keeps it spinning freely and 0dB technology utilizes thermal sensors to allow the fan to switch off completely at lower wattages — enabling totally silent operation.
The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in 20% lower temperatures inside the ROG Thor 850W Platinum. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise never exceeds 20dB, allowing ROG Thor to achieve LAMBDA A+ certification.
80 PLUS PLATINUM CERTIFICATION
The ROG Thor 850W Platinum utilizes top-end Japanese capacitors to ensure efficient operation. This has earned an 80 PLUS Platinum certification, which guarantees 89% efficiency at 100% load and 92% at 50% load. The increased efficiency produces less heat, reducing fan noise and increasing reliability.

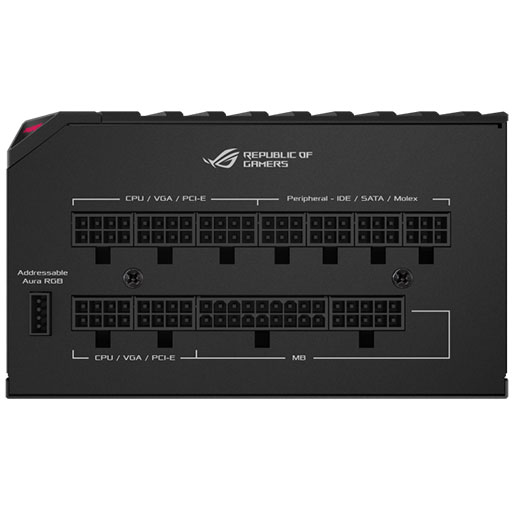

We know you’ll want to get building right away, so we’ve included high-quality sleeved and standard cables. The sleeved cables include one 24-pin, two 6+2-pin PCI-e cables and two 8-pin CPU cables. We’ve also included an RGB connector that plugs into the addressable RGB header on your ASUS motherboard.
The ROG Thor comes with two types of PCI-E power cables in the box: an individually sleeved set for showcase systems, and, to fuel heavily overclocked graphics cards, cables with embedded capacitors that reduce voltage ripple.
