|Dimensions||251 x 545 x 552 mm (WxDxH)|
|Case Size||ATX Mid Tower|
|Form Factor||ATX/micro ATX/Mini ITX/EATX (12”x10.9”)|
|Drive Bays||4 x Int x 2.5”/3.5” Combo Bay
3 x Int x 2.5” Bay
|System Fan Support||Pre-installed Fans
Front: 3x 120mm AURA RGB (1200RPM)
Rear: 1 x 140 PWM
|Expansion Slots||7+2 (additional vertical)|
|Weight||N.W. 10.5 kg|
|Front I/O Ports||2 x USB 3.1 Gen1
1 x Headphone
1 x Microphone
Front: 2 x 140mm/ 3 x 120mm
Top: 2 x 140mm/ 3 x 120mm
Rear: 1 x 140mm/120mmRadiator Support
Front: 120, 140, 240, 280, 360 mm
Top 120, 140, 240, 280, 360 mm
Rear: 120, 140mmMaximum GPU Length: 420mm
Maximum CPU Cooler Height: 180mm
Maximum PSU Length: 240 mm

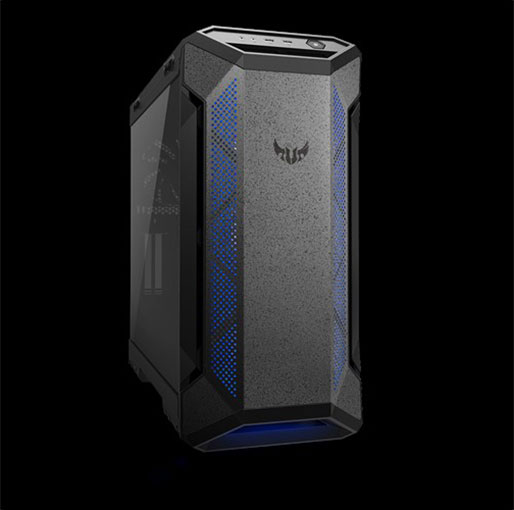

Outstanding Gaming Style
TUF Gaming GT501 is crafted from up to 1.5mm-thick galvanized steel for enhanced durability in understated industrial style, and has a special coating that resists scuffs and scratches. It’s fitted with two ergonomic, woven-cotton handles, rigorously tested to support up to 30kg – so it’s both easy and safe to transport your completed build.
Show Your TUF Personality

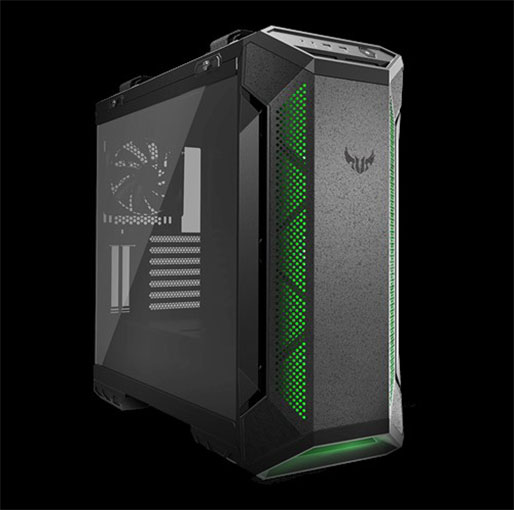

With a full-height, smoked-glass side panel, TUF Gaming GT501 lets you show off your build from top to bottom – so your components, customizations and Aura illuminations are all clearly visible. This panel is tempered for strength, and hinged at the bottom for opening ease.
OUTSHINE THE COMPETITION
Fitted RGB-enabled fans enable to work with the Aura-supported motherboards. With exclusive ASUS Aura Sync lighting technology*, TUF Gaming GT501 provides ambient lighting that can be synchronized with other Aura Sync-enabled components.
OPTIMIZED COOLING SOLUTION
- FAN Capacity
- Radiator Capacity
TUF Gaming GT501’s trio of 120mm Aura Sync RGB fans each contains 11 blades, and deliver high-static-pressure flow for targeted cooling. There’s also a high-airflow 140mm PWM fan for wider heat removal. It’s also easy to upgrade cooling when you need, with up to seven mounting points for the installation of additional fans.
Easy PC DIY

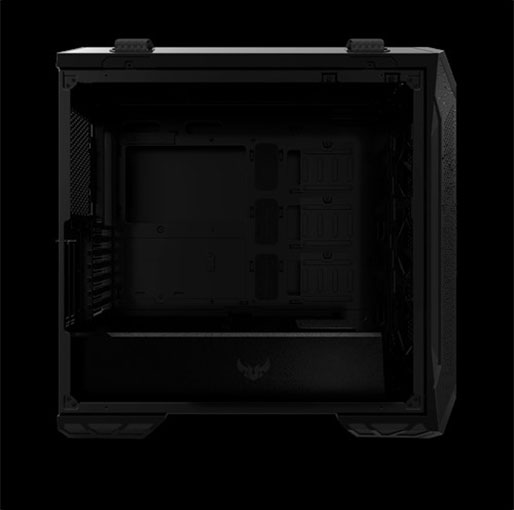

TUF Gaming GT501 makes PC DIY easier than ever. Integrated cable-management ensures neatness, while pre-installed physical supports for the motherboard eliminates additional costs and mean you’re ready to build from the get-go. It all adds up to design with you in mind for an unrivaled PC-building experience.
Design in Every Detail
- Cable grommet & Velcro wrap for cable routing
- SSD bracket
- Removable lid for water-cooling reservoir
- 2 x vertical PCIe slots
- PSU shroud
- 3.5”/2.5” anti-vibration storage bracket
- Mounting points for water-pump-bracket at bottom
- 30mm cable-management space
- Preinstalled motherboard standoffs
- Bottom supporting bracket for side glass
Keep Your Build Like New
Removable dust filters effectively prevent airborne particulates from entering TUF Gaming GT501, keeping your system’s internals looking as good as new for longer. The top and front filter are magnetic for a tight seal, and quick removal and cleaning, while the lower dust-trap is easily slid in and out to enable fast maintenance.
