Tripp LiteCat6a 10G Snagless Molded Slim UTP Ethernet Cable (RJ45 M/M), Blue, 6 ft. (1.83 m)

QAR 59

Availability:

In stock


  • Over 38% slimmer than standard Cat6a cables
  • Easy to route through cable management panels
  • Supports Ethernet speeds up to 10 Gbps
  • Snagless RJ45 design protects tabs from damage
  • High-quality 28 AWG stranded copper wire
  • Over 38% slimmer than standard Cat6a cables
  • Easy to route through cable management panels
  • Supports Ethernet speeds up to 10 Gbps
  • Snagless RJ45 design protects tabs from damage
  • High-quality 28 AWG stranded copper wire

QAR 59

In stock

Order By Call

Order now & Get it delivered Today!!

UPC Code 037332203915
Technology Cat6a
PHYSICAL
Cable Jacket Color Blue
Cable Jacket Material PVC
Cable Shielding UTP
Cable Outer Diameter (OD) 3.8mm
Number of Conductors 4 Pair
Conductor Material Stranded Copper
Conductor Gauge 28 AWG
Cable Length (m) 1.83
Cable Length (cm) 182.9
Shipping Dimensions (hwd / cm) 1.27 x 17.78 x 22.86
Shipping Weight (kg) 0.09
ENVIRONMENTAL
Operating Temperature Range 14 to 122 F (-10 to 50 C)
Storage Temperature Range 5 to 140 F (-15 to 60 C)
Operating Humidity Range 0% to 90% RH, Non-Condensing
Storage Humidity Range 0% to 90% RH, Non-Condensing
COMMUNICATIONS
Bandwidth per TIA Standard 500 MHz
Maximum Bandwidth as Tested 600 MHz
Network Compatibility 10 Gbps
IEEE Standards Supported 802.3an
CONNECTIONS
Side A – Connector 1 RJ45 (MALE)
Side B – Connector 1 RJ45 (MALE)
Crossover Wiring No
Contact Plating Gold
Connector Type Snagless
Wiring Configuration EIA/TIA 568B
FEATURES & SPECIFICATIONS
IP68 Rated No
Snagless Connector Yes
STANDARDS & COMPLIANCE
Product Compliance RoHS; IEEE 802.3an 10GBase-T; REACH

The N261-S06-BL Cat6a 10G Snagless Molded Slim UTP Network Patch Cable (M/M) is ideal for connecting network components like computers, servers, routers, printers, patch panels and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this 6-ft. (1.83 m) blue cable ensures peak performance throughout your local area network (LAN).

Manufactured from 28 AWG copper wire, the four-pair stranded UTP N261-S06-BL delivers Ethernet speeds up to 10 Gbps. Protected by a PVC jacket, this cable is more than 38% smaller in diameter than standard Cat6a cable, which increases airflow in tight spaces and makes it easier to install around corners and through cable management panels.

RJ45 male connectors are conducive to an accurate signal transfer, improving near-end crosstalk (NeXT) performance to 500 MHz. The snagless design protects the locking tabs against being damaged or broken off during installation. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.

Each cable has been tested and certified using Fluke® test equipment. It supports IEEE 802.3af, is DTE power compliant and is compatible with T568A/T568B wiring.

Features

Recommended Solution for Your Cat6a High-Density Network Connections

  • Ideal for connecting components like computers, servers, routers, printers, patch panels and switches in high-density data centers
  • Designed for fast transmission and excellent signal quality
  • Ensures peak performance throughout your LAN
  • Supports Ethernet speeds up to 10 Gbps

Special Slim Design

  • More than 38% smaller in diameter than standard Cat6a cable
  • Increases airflow in tight spaces
  • Increased flexibility for installing around corners and through cable management panels
  • Cuts down on bothersome cable clutter

Premium Construction for Superior Performance

  • High-quality 28 AWG 4-pair stranded copper wire
  • Minimal near-end crosstalk ensures a strong signal
  • Rugged PVC jacket stands up to long-term use

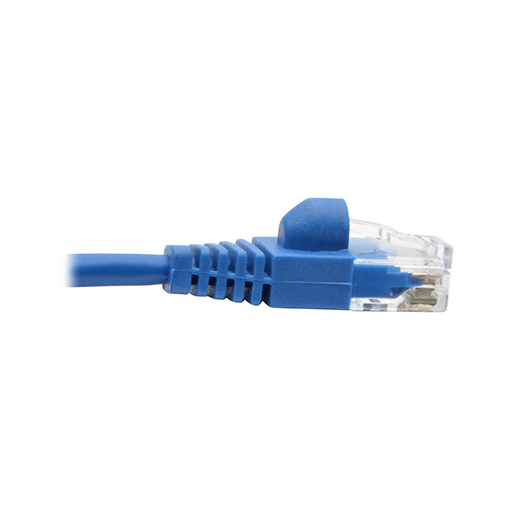

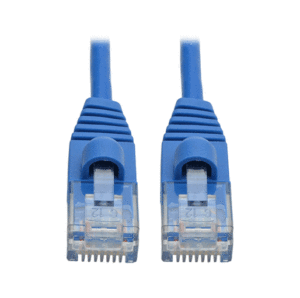

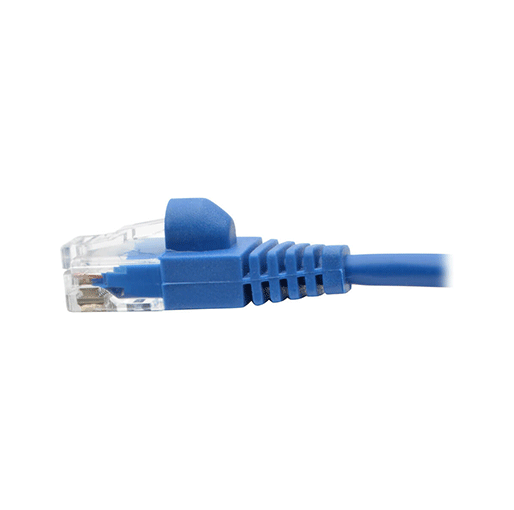

Snagless RJ45 Connectors

  • Molded snagless boots prevent locking tabs from damage during installation
  • Integral strain relief protects cable and connectors from stress and cracking

Tested and Certified Using Trusted Fluke Equipment

  • Supports IEEE 802.3af
  • DTE power compliant
  • Compatible with T568A/T568B wiring
