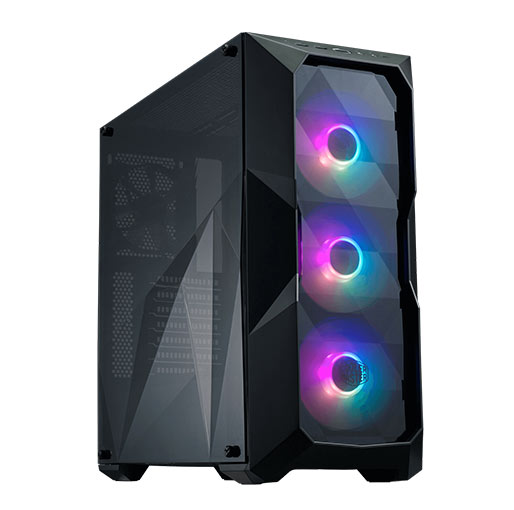

Cooler Master MasterBox TD500 ARGB Mid Tower Case


Out of stock

  • Crystalline Panels
  • Concealed Ventilation
  • ARGB Lighting System
  • Edge-to-Edge Acrylic Side Panel
  • Versatile Cooling Options
  • SickleFlow PWM Fans Included

QAR 429

Out of stock

Order now & Get it delivered Tomorrow!!

Model NumberMCB-D500D-KANN-S01
SeriesMasterBox Series
SizeMid Tower
MaterialsSteel, Plastic, Acrylic
Dimensions (L x W x H)493 x 217 x 468 mm
Weight5.6 kg / 12.3 lbs
Motherboard SupportMini ITX, Micro ATX, ATX, E-ATX*, (*support for up to 12″ x 10.7″, will limit cable management features)
Expansion Slots7
5.25″ Drive BaysN/A
2.5″ / 3.5″ Drive Bays (combo)2
2.5″ Drive Bays4 (2+2 combo)
I/O Panel2 x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB/PWM Hub (may depend on region and model)
Pre-installed Fans – Front3x 120mm 650~1800RPM SickleFlow PWM ARGB
Pre-installed Fans – Rear1x 120mm 1000-1400RPM MasterFan Lite
Fan Support – Top3x 120mm, 2x 140mm
Fan Support – Front3x 120mm, 2x 140mm
Fan Support – Rear1x 120mm
Radiator Support – Top120mm, 240mm, 360mm, (44mm max motherboard component height)
Radiator Support – Front120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support – Rear120mm
Clearance – CPU Cooler165mm/6.49″
Clearance – PSU180mm/7.08″
Clearance – GFX410mm/16.1″
Dust FiltersTop, Front, Bottom
Power Supply SupportBottom Mount, ATX

The MasterBox TD500 ARGB approaches PC lighting in a completely new perspective. The front and side panels feature a crystalline structure, designed to uniquely interact with hardware lighting depending on the viewing angle. To make the most of the panels’ structure, three ARGB fans come pre-installed behind the front panel.

To avoid interrupting the front panel design, seamless implementation of mesh ventilation makes up the entire perimeter of the panel. Hidden by the front bezel, considerable airflow is provided to the system almost completely out of view. Joined by the top panel ventilation and rear exhaust, the MasterBox TD500 ARGB delivers efficient cooling and spectacular aesthetics without compromising one for the other.

Crystalline Panels
The front and side panels feature a three-dimensional, crystalline design that refracts light differently depending on the viewing angle.

Concealed Ventilation
The entire perimeter of the front panel is ventilated with mesh, placed behind the front bezel and hidden out of view.

ARGB Lighting System
Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

Edge-to-Edge Acrylic Side Panel
Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge acrylic side panel.

Versatile Cooling Options
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.

SickleFlow PWM Fans Included
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.
