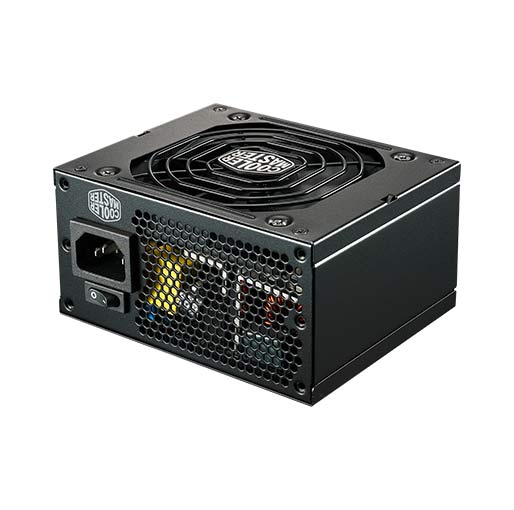

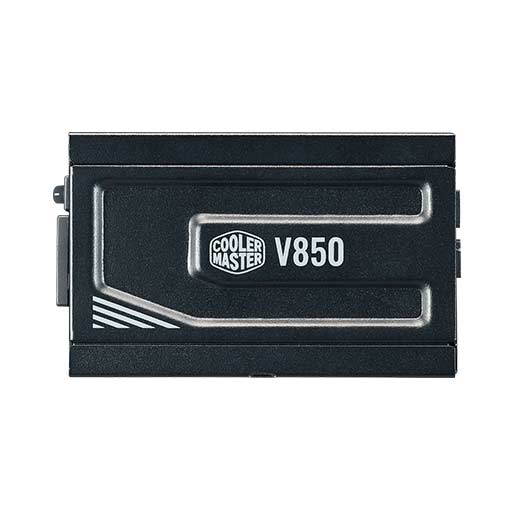

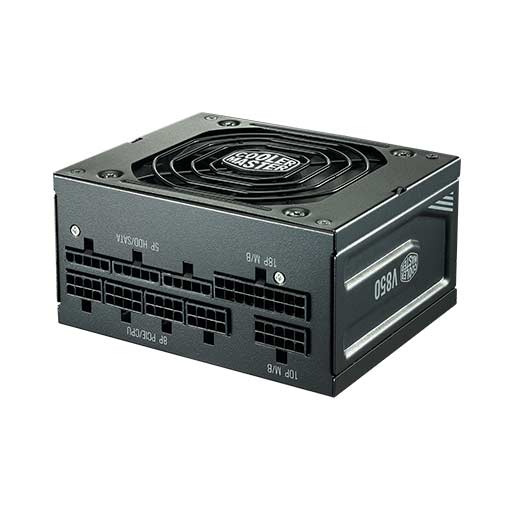

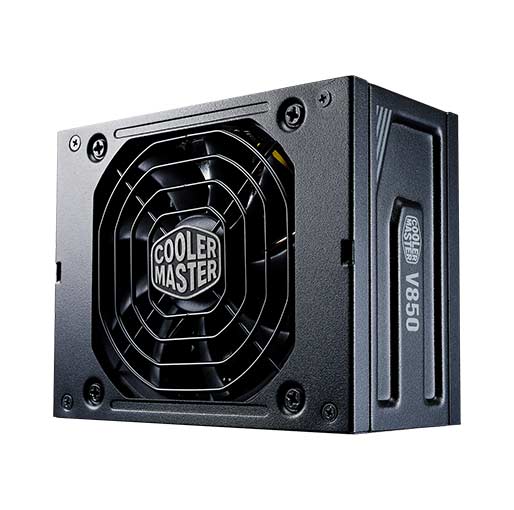

Cooler Master V850 SFX Gold Full Modular, 850W, 80+ Gold Efficiency Power Supply

Availability:

Out of stock


  • 80 Plus Gold Efficiency
  • SFX Form Factor
  • SFX-to-ATX Bracket
  • 80 Plus Gold Certified
  • Full-modular Cabling

QAR 799

Out of stock

Order now & Get it delivered Today!!

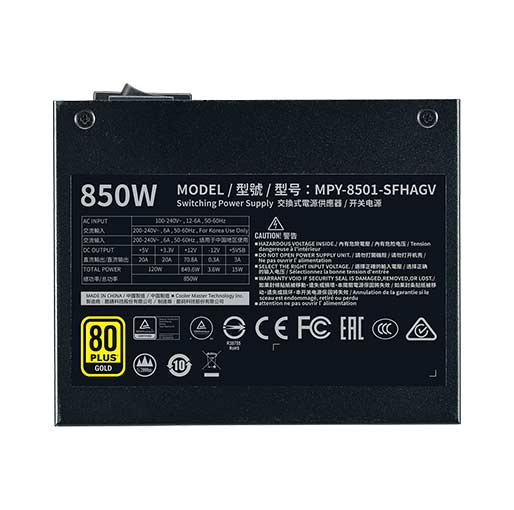

ModelMPY-8501-SFHAGV
ATX VersionSFX 12V Ver. 3.42
PFCActive PFC
Input Voltage100-240V
Input Current12-6A
Input Frequency50-60Hz
Dimensions (L x W x H)100 x 125 x 63.5 mm
Fan Size92mm
Fan BearingFDB
Efficiency90% @ Typical Load
80 PLUS Rating80 PLUS Gold
ErP 2014 Lot 3Yes
Operating Temperature0-50°C
Power Good Signal100 – 500 ms
Hold Up Time16ms
MTBF>100,000 Hours
ProtectionsOVP, OPP, SCP, OCP, UVP, OTP, Surge and Inrush Protection
RegulatoryTUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB

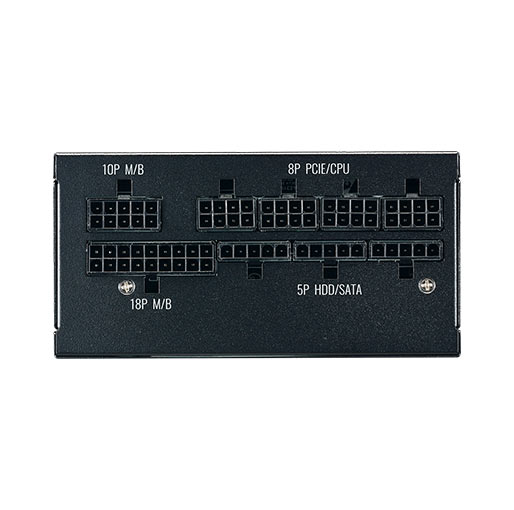

ATX 24 Pin Connectors1
EPS 4+4 Pin Connectors1
EPS 8 Pin Connector1
SATA Connectors8
Peripheral 4 Pin Connectors4
PCI-e 6+2 Pin Connectors4
80 PlusGold
ModularFull Modular
WattageAbove 750W
SeriesV SFX Gold Series

The V SFX Gold is Cooler Master’s debut entry into SFX power supply units. After much demand, we have finally produced a PSU specifically made to meet the needs of mini-ITX system builders. This unit delivers top-shelf performance in 550, 650, 750, and 850 watt levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, a 92mm FDB fan, 16AWG PCIe high efficiency cables, 100% Japanese capacitors, and a 10 year warranty. And with the included SFX-to-ATX bracket, this unit is compatible with cases ranging from mini-ITX all the way up to E-ATX systems.

SFX FORM FACTOR
The V SFX Gold delivers the high quality performance you’ve come to expect from the V series in a mini-ITX compatible form factor. As demands for smaller systems have risen, people have struggled to find power supply units from brands and series they trust in the SFX category. Though it didn’t come as soon as we originally planned, Cooler Master is glad to finally be able to provide a reliable, high quality PSU that’s compatible with smaller cases and their accompanying components. A reduction in size should never mean a reduction in quality and with the V SFX Gold, it doesn’t. Make it mini. Make It Yours.

80 PLUS GOLD EFFICIENCY
The efficiency of your power supply unit is important because it directly affects your system’s performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit’s ability to move power from the wall to your components. The higher a PSU’s efficiency is, the lower the total amount of power it needs to power your system. The V SFX Gold series has an 80 PLUS Gold efficiency rating, meaning it has a guaranteed typical efficiency of 90%.

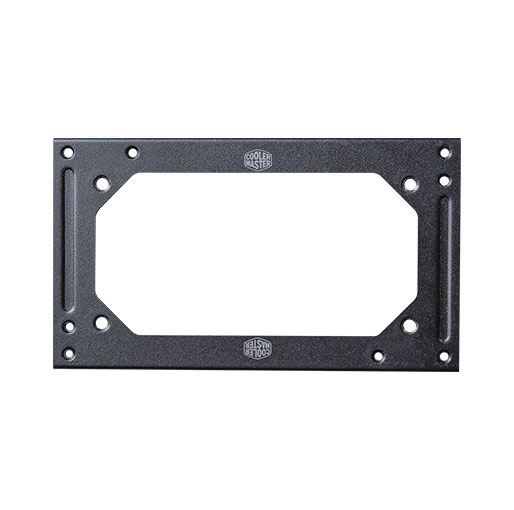

SFX-TO-ATX BRACKET
Though the V SFX Gold was made for mini-ITX builds, it can actually be used for any ATX case as well. With the included SFX-to-ATX bracket, you can instantly convert this unit from an SFX to an ATX PSU. That makes this product Cooler Master’s first power supply unit that can be used to power systems ranging from as small as mini-ITX all the way up to E-ATX motherboards. Cooler Master’s motto is “Make It Yours” and with the V SFX Gold’s almost universal case compatibility, you can use this PSU to build just about any system you’d like.

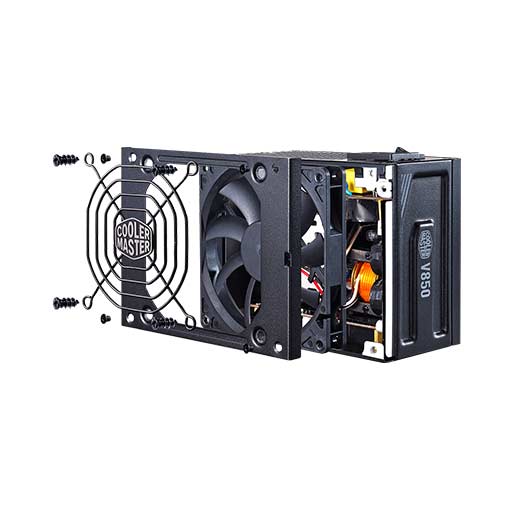

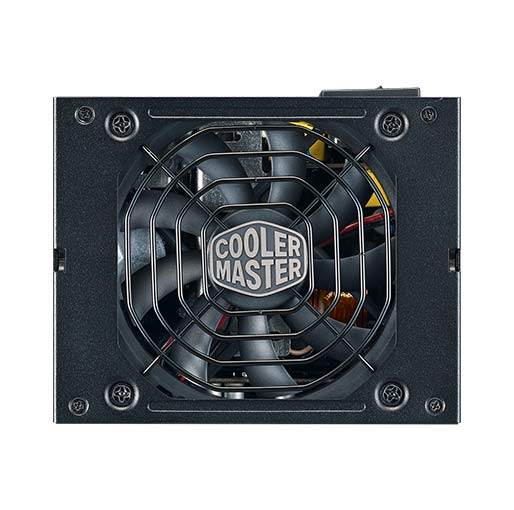

QUIET COOLING
Two of the main benefits of a mini-ITX build are the reduced size requirements and reduced noise. The main cause of noise in a PSU is usually the fan. The V SFX Gold uses a 92mm FDB fan so it’s extremely quiet. With its small size, high efficiency, and excellent heat dissipation, the overall noise is kept to an absolute minimum.
