|Adjustable Single/Multi 12V Rail||No|
|Continuous output rated temperature C||50°C|
|Continuous power W||850 Watts|
|Fan bearing technology||Rifle Bearing|
|Fan size mm||140mm|
|MTBF hours||100,000 hours|
|80 PLUS Efficiency||Gold|
|PSU Form Factor||ATX|
|Zero RPM Mode||No|
|Cable Type||Low-Profile, All Black|
|Dimensions||160mm x 86mm x 150mm|
|EPS12V Connector||EPS12V Version|
|2||Intel C6C7 sleep state compatible|
|Special Technology||OVP (Over Voltage)
UVP (Under Voltage)
SCP (Short Circuit)
OTP (Over Temp)
OPP (Over Power)

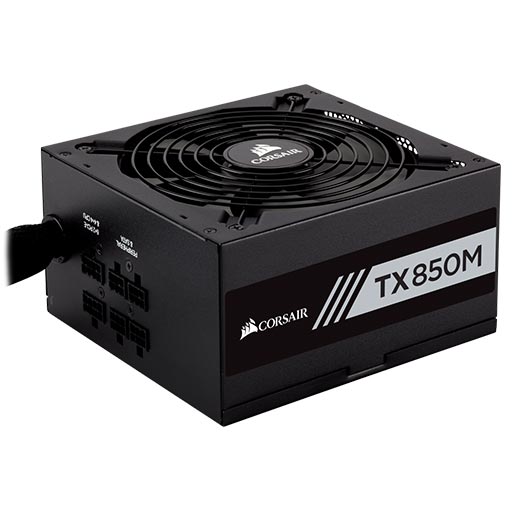

CORSAIR TX-M Series TX850M CP-9020130-NA 850W ATX12V v2.4 / EPS 2.92 80 PLUS GOLD Certified Semi-Modular Power Supply
Gold-Certified Efficiency And Semi-Modular Cabling For Low Energy Use And Easy Installation
TX Series semi-modular power supplies are ideal for basic desktop systems where low energy use, low noise, and simple installation are essential. All of the capacitors are 105°C rated, Japanese brand, to ensure solid power delivery and long term reliability. 80 PLUS Gold efficiency reduces operating cost and excess heat. Flat, sleeved black modular cables with clearly-marked connectors make installation fast and straightforward, with good-looking results.
80 Plus Gold-Certified Efficiency
The super-efficient operation of the TX Series semi-modular results in lower energy use and lower operating costs. Since it generates less heat, the fan doesn’t need to work as hard, and you’ll enjoy near silent operation.
Modular Cabling With Clearly Marked Connectors
The flat, sleeved black cables are semi-modular, so you’ll only use the cables you need and you’ll get great-looking results. The clearly-marked connectors make installation fast and straightforward.
Corsair Engineering And Quality Control
Every CORSAIR power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes into the TX-M Series semi-modular, because you need confidence and reliability regardless of your build budget.
