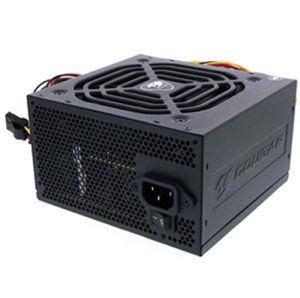

COUGAR VTE600 600W ATX12V 80 PLUS BRONZE Certified Non-Modular Active PFC Power Supply

QAR 299

Availability:

Out of stock

SKU : SMPS-VTE600

  • ATX12V
  • Non-Modular
  • 80 PLUS BRONZE Certified
  • 100 – 240 V 50 – 60 Hz
  • +3.3V@16A, +5V@20A, +12V@45A, -12V@0.3A, +5Vsb@2.5A
  • ATX12V
  • Non-Modular
  • 80 PLUS BRONZE Certified
  • 100 – 240 V 50 – 60 Hz
  • +3.3V@16A, +5V@20A, +12V@45A, -12V@0.3A, +5Vsb@2.5A

QAR 299

Out of stock

Brand COUGAR
Model VTE600
Type ATX12V
Maximum Power 600W
Fans 1 x 120 mm Ultra-Silent Fan
PFC Active
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector 2 x 6+2-Pin
SATA Power Connector 6
Modular Non-Modular
Efficiency up to 87%
Energy-Efficient 80 PLUS BRONZE Certified
Over Voltage Protection Yes
Input Voltage 100 – 240 V
Input Frequency Range 50 – 60 Hz
Input Current 10 – 6A

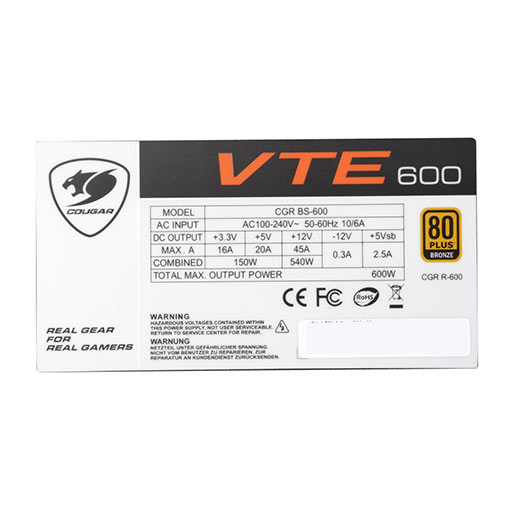

Output +3.3V@16A, +5V@20A, +12V@45A, -12V@0.3A, +5Vsb@2.5A
Dimensions 3.39″ x 5.91″ x 5.51″
Max PSU Length 140 mm
Connectors 1 x 20+4-Pins Main
1 x 4+4-Pins / 8-Pins CPU
2 x 4-Pins Peripherals
6 x 5-Pins S-ATA
2 x 6+2-Pins PCI-E
Features Extremely High Efficiency
Up to 87% of efficiencyUltra-Stable Voltage Output
3.3V DC-DC technology for enhanced voltage ability105 Degree C Japanese Standby Capacitor
Increase the PSU life-spanCompatible With the Latest PC-Technology
Support the newest specifications of ATX12V Created for usage with current and next-generation multi-core CPU platformsUltra-Quiet & Temperature-Controlled 120mm Fan
Extremely low noise level, equipped with a large and ultra-quiet 120mm fan

Integrated Air Inlet Design
Optimal air-dynamical design, lead to more silent operation

Massive Single +12V DC Output
Extreme stability for powerful graphic systems

Support Multi-GPU Technology
Supports PCI express 3.0 next-generation graphics cards with 8(6+2) pin PCI-e connector.

Active Power Factor Correction (Active PFC)
PF value up to 99%, provides clean and reliable power

Full Protections With OCP, SCP, OVP, UVP, OPP

Ultra-quiet & Temperature-controlled 120mm fan. Better power output with thermal control. Extremely low noise level, fan speed automatically regulated according to the temperature Extremely High Efficiency .Up to 87% of efficiency. Ultra-Stable Voltage Output.3.3V DC-DC technology for enhanced voltage ability.105 Degree C Japanese Standby Capacitor. Increase the PSU life-span. Compatible With the Latest PC-Technology. Support the newest specifications of ATX12V Created for usage with current and next-generation multi-core CPU platforms. Ultra-Quiet & Temperature-Controlled 120mm Fan. Extremely low noise level, equipped with a large and ultra-quiet 120mm fan. Integrated Air Inlet Design, Optimal air-dynamical design, lead to more silent operation. Massive Single +12V DC Output. Extreme stability for powerful graphic systems. Support Multi-GPU Technology. Supports PCI express 3.0 next-generation graphics cards with 8(6+2) pin PCI-e connector. Active Power Factor Correction (Active PFC). PF value up to 99%, provides clean and reliable power. Full Protections With OCP, SCP, OVP, UVP, OPP

  • Extremely High Efficiency
    Up to 87% of efficiency
  • Ultra-Stable Voltage Output
    3.3V DC-DC technology for enhanced voltage ability
  • 105°C Japanese Standby Capacitor
    Increase the PSU life-span
  • Massive Single 12V DC Output
    Extreme stability for powerful graphic systems
  • Ultra-Quiet & Temperature-Controlled 120mm Fan
    Extremely low noise level, equipped with a large and ultra-quiet 120mm fan
  • Compatible With the Latest PC-Technology
    Support the newest specifications of ATX12V Created for usage with current and next-generation multi-core CPU platforms
  • Support Multi-GPU Technology
    Supports PCI express 3.0 next-generation graphics cards with 8(6+2) pin PCI-e connector
  • Integrated Air Inlet Design
    Optimal air-dynamical design, lead to more silent operation
  • Active Power Factor Correction {Active PFC)
    PF value up to 99%. provides clean and reliable power

Full Protections With OCP, SCP, OVP, UVP, OPP

Protection
OCP (Overcurrent protection)
If the current on a single line is higher than indicated, the PSU automatically switches off.

UVP (Under voltage protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

OVP (Over voltage protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

SCP (Short-circuit protection)
In the case of a short-circuit this feature prevents damage to the core components of the PSU and its system components.

OPP (Over power protection)
If the system is oversized and requires more power from the PSU than it can perform, this protection function is activated.
