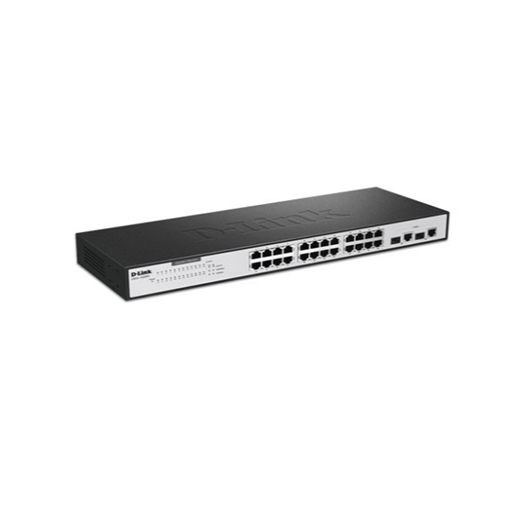

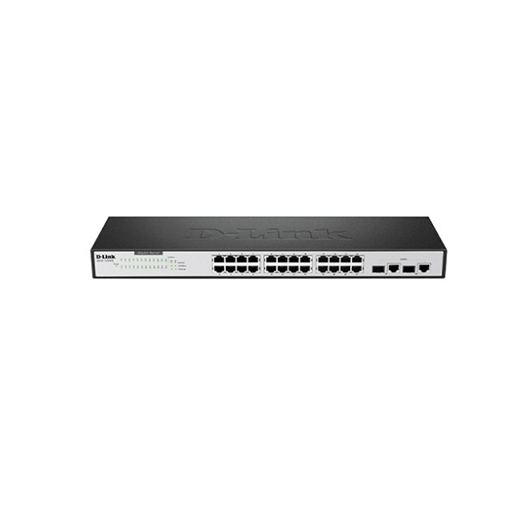

D-Link DES-1026G 24-Port Fast Ethernet Switch with 2 Gigabit Uplink

QAR 399

Availability:

In stock

SKU: DES-1026G

Categories: , , , ,

  • 24 10/100 Mbps Fast Ethernet ports
  • 2 Gigabit Copper/SFP combo ports
  • Flow control for protection against data loss for each port
  • Auto-learning of network configuration
  • Secure store-and-forward switching scheme
  • Per-port auto-correction of reverse twisted-pair polarity
  • Standard 19-inch rack-mount size
  • 24 10/100 Mbps Fast Ethernet ports
  • 2 Gigabit Copper/SFP combo ports
  • Flow control for protection against data loss for each port
  • Auto-learning of network configuration
  • Secure store-and-forward switching scheme
  • Per-port auto-correction of reverse twisted-pair polarity
  • Standard 19-inch rack-mount size

QAR 399

In stock

Order By Call

Order now & Get it delivered Today!!

Standards IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
Protocol CSMA/CD
Data Transfer Rates Ethernet
10Mbps (half-duplex)
20Mbps (full-duplex)
Fast Ethernet:
100Mbps (half-duplex)
200Mbps (full-duplex)
Gigabit Ethernet:
2000Mbps (full duplex)
Topology Star
Network Cables 10BASE-T: UTP Cat. 3, 4, 5 (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T: UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Number of Ports 10/100Mbps port x 24
10/100/1000Mbps port x 2
Media Interface Exchange Auto MDI/MDI-X for each port
Twisted-pair Rx Reverse Polarity Auto-correction for each port
Status/Diagnostic LEDs Per device: Power
Per port:
Link/Activity
100Mbps speed (10/100Mbps ports)
100Mbps, 1000Mbps speeds (10/100/1000Mbps ports)
Transmission Method Store-and-forward
Switch Fabric Non-blocking
8.8Gbps
Filtering Address Table 8K entries per device
MAC Address Learning Automatic update
Packet Filtering 1 Forwarding Rates 10BASE-T: 14,880 pps per port (half-duplex)
100BASE-TX: 148,810 pps per port (half-duplex)
Gigabit Ethernet: 1,488,100 pps per port
RAM Buffer 320KBytes per device
Power Supply 100 – 240 VAC
Internal universal power supply
Power Consumption 9.8 watts
MTBF 409,781 hours
Ventilation No fan
Operating Temperature -40 C (32 -104 F)
Storage Temperature -10 -70 C (12 -158 F)
Humidity 5% – 95% RH non-condensing
Dimensions 440 (W) x 140 (D) x 44 (H) mm (17.32 x 5.51 x 1.73 inches) 19-inch rack-mount width, 1 U height
Weight 2.8 kg (6.17 lb.)
Emission (EMI) FCC Class A
CE Class A
VCCI Class A
C-Tick
Safety cUL

The DES-1026G is an unmanaged 10/100 Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. It provides 24 10/100Mbps ports for workstation connection, plus 2 copper/SFP Gigabit combo ports for server and uplink deployment, allowing a workgroup to multiply bandwidth, boost response time, and satisfy heavy load demands.

Increased Productivity
The DES-1026G comes with 24 10/100 Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex, letting you focus on work-day productivity rather than connectivity issues.

Instantly Upgrade to Gigabit Speeds
Two Copper/SFP Gigabit combo ports support auto-sensing and full/half-duplex auto-negotiation, keeping you up to date with the latest technologies in switch connectivity.  Additionally, all ports support flow control, which minimizes dropped packets by sending out collision signals when the port’s receiving buffer is full, ensuring reliable connectivity.

Plug and Play
All ports support auto-negotiation of MDI/MDIX cross over, which eliminates the need for cross over cables or uplink ports. Any port can simply plug to a workstation, a server, a hub or a switch using the usual straight-through twisted-pair cable, saving you time and money. With 26 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to workstations and servers in full-duplex, or hubs in half-duplex.
