Hardware | |
Processor | • MT7621DAT (880MHz, dual core) |
RAM | • 128MB, DDR3 |
Flash | • 128MB, NAND |
Interfaces | • 10/100/1000BASE-T WAN port
• 4 10/100/1000BASE-T LAN ports • USB 2.0 port • USB 3.0 port |
LEDs | • Power
• Internet • WLAN 2.4G • WLAN 5G |
Buttons | • POWER button to power on/power off
• RESET button to restore factory default settings • WPS button to set up wireless connection and enable/disable wireless network |
Antenna | • Four external non-detachable antennas (5dBi gain) |
MIMO | • 4 x 4, MU-MIMO |
Power connector | • Power input connector (DC) |
Software | |
WAN connection types | • Mobile Internet (via supported USB modem)
• PPPoE • IPv6 PPPoE • PPPoE Dual Stack • Static IPv4 / Dynamic IPv4 • Static IPv6 / Dynamic IPv6 • PPPoE + Static IP (PPPoE Dual Access) • PPPoE + Dynamic IP (PPPoE Dual Access) • PPTP/L2TP + Static IP • PPTP/L2TP + Dynamic IP • L2TP Dual Stack • IPIP6 in DSLite mode • 6in4 • 6to4 • 6rd |
Network functions | • DHCP server/relay
• Advanced configuration of built-in DHCP server • Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation • Automatic obtainment of LAN IP address (for access point/repeater/client modes) • DNS relay • Dynamic DNS • Static IPv4/IPv6 routing • IGMP/MLD Proxy • RIP • Support of UPnP IGD • Support of VLAN • WAN ping respond • Support of SIP ALG • Support of RTSP • WAN failover • LAN/WAN conversion • Multi-WAN support • Autonegotiation of speed, duplex mode, and flow control/Manual speed and duplex mode setup for each Ethernet port • Built-in UDPXY application • XUPNPD plug-in • Equal load distribution while using several WAN connections (traffic balancing) • Support of VRRP • Port mirroring |
Firewall functions | • Network Address Translation (NAT)
• Stateful Packet Inspection (SPI) • IPv4/IPv6 filter • MAC filter • URL filter • Ad blocking function • DMZ • Virtual servers • Built-in Yandex.DNS web content filtering service • Built-in SkyDNS web content filtering service |
VPN | • IPsec/PPTP/L2TP/PPPoE pass-through
• PPTP/L2TP servers • PPTP/L2TP tunnels • L2TP over IPsec • GRE/EoGRE/EoIP/IPIP tunnels • IPsec tunnels – Transport/Tunnel mode – IKEv1/IKEv2 support – DES encryption – NAT Traversal – Support of DPD (Keep-alive for VPN tunnels) |
USB interface functions | • USB modem
– Auto connection to available type of supported network (4G/3G/2G) – Auto configuration of connection upon plugging in USB modem – Enabling/disabling PIN code check, changing PIN code1 – Sending/receiving/reading/removing SMS messages1 – Support of USSD requests1 • USB storage – File browser – Print server – Access to storage via accounts – Built-in Samba/FTP/DLNA server – Built-in Transmission torrent client; uploading/downloading files from/to USB storage |
Management and monitoring | • Local and remote access to settings through SSH/TELNET/WEB (HTTP/HTTPS)
• Multilingual web-based interface for configuration and management • Support of D-Link Assistant application for Android and iPhone smartphones • Notification on connection problems and auto redirect to settings • Firmware update via web-based interface • Automatic notification on new firmware version • Saving/restoring configuration to/from file • Support of logging to remote host/connected USB storage • Automatic synchronization of system time with NTP server and manual time/date setup • Ping utility • Traceroute utility • TR-069 client • SNMP agent • Schedules for rules and settings of firewall, automatic reboot, and enabling/disabling wireless network and Wi-Fi filter • Automatic upload of configuration file from ISP’s server (Auto Provision) |
Wireless Module Parameters | |
Standards | • IEEE 802.11a/n/ac
• IEEE 802.11b/g/n • IEEE 802.11k/v |
Frequency range
The frequency range depends upon the radio frequency regulations applied in your country |
• 2400 ~ 2483.5MHz
• 5150 ~ 5350MHz • 5650 ~ 5850MHz |
Wireless connection security | • WEP
• WPA/WPA2 (Personal/Enterprise) • WPA3 (Personal) • МАС filter • WPS (PBC/PIN) |
Advanced functions | • Support of client mode
• WMM (Wi-Fi QoS) • Information on connected Wi-Fi clients • Advanced settings • Smart adjustment of Wi-Fi clients • Guest Wi-Fi / support of MBSSID • Periodic scan of channels, automatic switch to least loaded channel • Support of 5GHz TX Beamforming • Wider bandwidth (up to 160MHz) • Autonegotiation of channel bandwidth in accordance with environment conditions (20/40 Coexistence) • Support of STBC |
Wireless connection rate | • IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
• IEEE 802.11b: 1, 2, 5.5, and 11Mbps • IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps • IEEE 802.11n (2.4GHz): from 6.5 to 300Mbps (from MCS0 to MCS15) • IEEE 802.11n (5GHz): from 6.5 to 600Mbps (from MCS0 to MCS30) • IEEE 802.11ac (5GHz): from 6.5 to 1733Mbps (from MCS0 to MCS9) |
Transmitter output power
The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country |
• 802.11a (typical at room temperature 25 °C)
15dBm • 802.11b (typical at room temperature 25 °C) 15dBm • 802.11g (typical at room temperature 25 °C) 15dBm • 802.11n (typical at room temperature 25 °C) 2.4/5GHz 15dBm • 802.11ac (typical at room temperature 25 °C) 15dBm |
Receiver sensitivity | • 802.11a (typical at PER < 10% (1000-byte PDUs) at room temperature 25 °C)
-93.5dBm • 802.11b (typical at PER = 8% (1000-byte PDUs) at room temperature 25 °C) -97dBm • 802.11g (typical at PER < 10% (1000-byte PDUs) at room temperature 25 °C) -77dBm • 802.11n (typical at PER = 10% (1000-byte PDUs) at room temperature 25 °C) 2.4GHz -72dBm 5GHz -70.5dBm • 802.11ac (typical at PER = 10% (1000-byte PDUs) at room temperature 25 °C) -60.5dBm |
Modulation schemes | • 802.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM
• 802.11b: DQPSK, DBPSK, DSSS, CCK • 802.11g: BPSK, QPSK, 16QAM, 64QAM with OFDM • 802.11n: BPSK, QPSK, 16QAM, 64QAM, 256QAM with OFDM • 802.11ac: BPSK, QPSK, 16QAM, 64QAM, up to 256QAM with OFDM |
Physical Parameters | |
Dimensions (L x W x H) | • 132 x 205 x 36 mm (5.19 x 8.07 x 1.4 in) |
Weight | • 340 g (0.75 lb) |
Operating Environment | |
Power | • Output: 12V DC, 2A |
Temperature | • Operating: from 0 to 40 °C
• Storage: from -20 to 65 °C |
Humidity | • Operating: from 10% to 90% (non-condensing)
• Storage: from 5% to 95% (non-condensing) |
Delivery Package | |

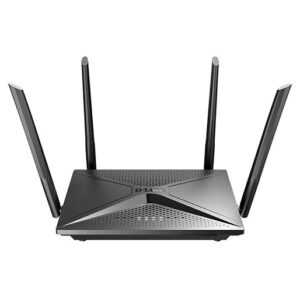

• Router DIR-2150
• Power adapter DC 12V/2A • Ethernet cable • “Quick Installation Guide” (brochure) |
|
Supported USB modems2 | |
GSM | • Alcatel X500
• D-Link DWM-152C1 • D-Link DWM-156A6 • D-Link DWM-156A7 • D-Link DWM 156A8 • D-Link DWM-156C1 • D-Link DWM-157B1 • D-Link DWM-157B1 (Velcom) • D-Link DWM-158D1 • D-Link DWR-710 • Huawei E150 • Huawei E1550 • Huawei E156G • Huawei E160G • Huawei E169G • Huawei E171 • Huawei E173 (Megafon) • Huawei E220 • Huawei E3131 (MTS 420S) • Huawei E352 (Megafon) • Huawei E3531 • Prolink PHS600 • Prolink PHS901 • ZTE MF112 • ZTE MF192 • ZTE MF626 • ZTE MF627 • ZTE MF652 • ZTE MF667 • ZTE MF668 • ZTE MF752 |
LTE | • Alcatel IK40V
• D-Link DWM-222 • Huawei E3131 • Huawei E3272 • Huawei E3351 • Huawei E3372s • Huawei E3372h-153 • Huawei E3272 • Huawei E367 • Huawei E392 • Megafon M100-1 • Megafon M100-2 • Megafon M100-3 • Megafon M100-4 • Megafon M150-1 • Megafon M150-2 • Quanta 1K6E (Beeline 1K6E) • MTS 824F • MTS 827F • Yota LU-150 • Yota WLTUBA-107 • ZTE MF823 • ZTE MF823D • ZTE MF827 • ZTE MF833T • ZTE MF833V |
Smartphones in USB tethering mode | • Some models of Android smartphones |
