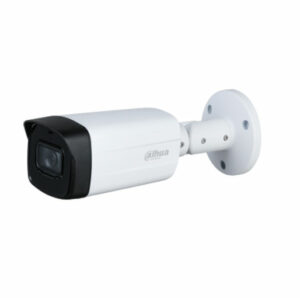

Dahua DH-HAC-HFW1500TH-I4 5MP Starlight HDCVI IR Bullet Camera

QAR 149

Availability:

In stock

SKU: DH-HAC-HFW1500THP-I4

Categories: , , ,

  • 20fps@5MP
  • HD and SD output switchable
  • 6mm fixed lens (2.8mm, 6mm optional)
  • IR length 40m, Smart IR
  • IP67, DC12V
  • 20fps@5MP
  • HD and SD output switchable
  • 6mm fixed lens (2.8mm, 6mm optional)
  • IR length 40m, Smart IR
  • IP67, DC12V

QAR 149

In stock

Order By Call

Order now & Get it delivered Today!!

Camera
Image Sensor 1/2.7 inch CMOS
Effective Pixels 2592 (H) × 1944 (V), 5MP
Electronic Shutter Speed PAL:1/25s–1/100000s
NTSC:1/30s–1/100000s
Minimum Illumination 0.02Lux/F1.85, 30IRE, 0Lux IR on
IR Distance Distance up to 40 m (131.23 ft)
IR On/Off Control Auto; manual
IR LEDs Number 1
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F1.85
Angle of View 2.8 mm: 116° × 93° × 68°

(diagonal × horizontal × vertical)
3.6 mm: 101° × 77.5° × 56.5°

(diagonal × horizontal × vertical)
6 mm: 61° × 49° × 37°

(diagonal × horizontal × vertical)

Iris Type Fixed iris
Min Photographic Distance 0.9 m/1.4 m/2.8 m (2.95 ft/4.59 ft/9.18 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 56.0 m (183.72 ft) 22.4 m (73.49 ft) 11.2 m (36.74 ft) 5.6 m (18.37 ft)
3.6mm 80.0 m (262.46 ft) 32.0 m (68.89 ft) 16.0 m (52.49 ft) 8.0 m (26.24 ft)
6 mm 120.0 m (393.70 ft) 48.0 m (104.98 ft) 24.0 m (78.74 ft) 12.0 m

(39.37 ft)

Video
Video Frame Rate CVI: 5M@20fps; 4M@25fps/30fps; 1080P@25fps/30fps;
AHD: 5M@20fps; 4M@25fps/30fps; 1080P@25fps/30fps;
TVI: 5M@20fps; 4M@25fps/30fps; 1080P@25fps/30fps;
CVBS: 960H
Resolution 5MP (2592 × 1944); 4MP (2560 × 1440); 1080P (1920 × 1080); 960H (960 ×576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
WDR DWDR
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 2D NR
Smart IR Yes
Electronic Defog Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Port Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply 12V±30% DC
Power Consumption Max 3.6W (12V DC, IR on)
Environment
Operating Temperature -40°C to +60°C (-40°F to +140°F);

<95% (non-condensation)

Storage Temperature -40°C to +60°C (-40°F to +140°F);

<95% (non-condensation)

Protection Grade IP67
Structure
Casing Metal front face + plastic main body + metal bracket
Dimensions 240.7 mm × 90.7 mm × 90.4 mm (9.48″ × 3.57″ × 3.56″)
Net Weight 410 g (0.90 lb)
Gross Weight 616 g (1.36 lb)

System Overview
Experience superior 5MP video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The Lite series 5MP HDCVI camera features a compact design and offers a high quality image with rich details at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.

4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technol[1]ogy supports PoC for construction flexibility.

Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission without any loss. It supports up to 700m for 5MP HD video via coaxial cable, and up to 300m via UTP cable.

Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of con[1]figuring a network.

Smart IR
The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera’s infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing im[1]ages as the object come closer to the camera.

HD/SD Switchable
The camera supports switchable HDCVI high definition video output and CVBS standard definition video output. The two formats can be switched over through OSD menu or by PFM820 (UTC controller). This feature makes the camera to be compatible with both HCVRs and existing ana[1]log DVRs and also facilitates debugging through analog testers.

Multi-language OSD
OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.

Protection
The camera’s outstanding reliability is unsurpassed due to its rugged design.The camera is protected against water and dust with IP67 rank[1]ing, making it suitable for indoor or outdoor environments.With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments.Supporting ±30% input voltage tolerance, this camera suits even the mostunstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
