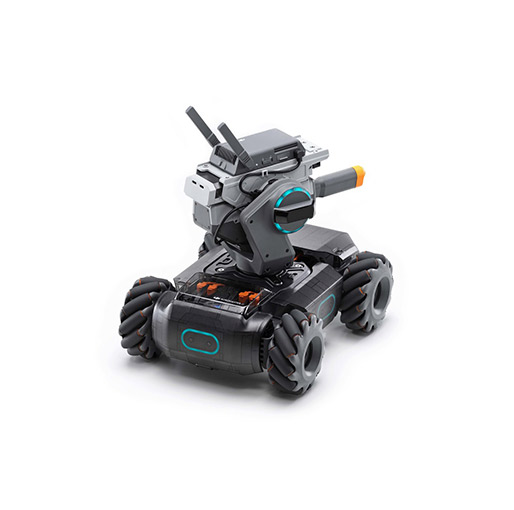

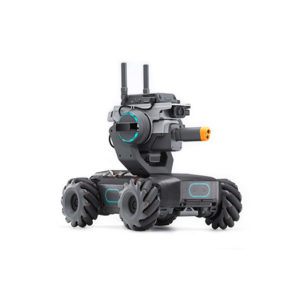

DJI RoboMaster S1 Intelligent Educational Robot

QAR 2,200

Availability:

Out of stock

SKU : 167491121

  • Classic visual programming language used in primary and secondary schools worldwide.
  • Widely used in the field of artificial intelligence.
  • Designed to Win
  • Intelligent controller
  • Classic visual programming language used in primary and secondary schools worldwide.
  • Widely used in the field of artificial intelligence.
  • Designed to Win
  • Intelligent controller

QAR 2,200

Out of stock

Camera
FOV 120°
Max Still Photo Resolution 2560×1440
Max Video Resolution FHD: 1080/30fps

HD: 720/30fps

Max Video Bitrate 16 Mbps
Photo Format JPEG
Video Format MP4
Sensor CMOS 1/4″; Effective pixels: 5 MP
Operating Temperature Range -10 to 40 °C (14 to 104 °F)
Narrow Infrared Units
Effective Range [1] 6 m (in indoor lighting conditions)
Effective Area Varies from 10° to 40°

Effective area decreases as distance from the target increases.

Wide Infrared Units
Effective Range [1] 3 m (in indoor lighting conditions)
Effective Width 360° (in indoor lighting conditions)
Hit Detector
Detection Requirements For the Hit Detector to be activated, the following conditions must be met: Gel bead diameter ≥ 6mm, launching speed ≥20m/s, and the angle between the hit direction and hit detector plane is no less than 45°.
Maximum Detection Frequency 15 Hz
S1
Weight Approx. 3.3 kg
Dimensions 320×240×270 mm (length × width × height)
Chassis Speed Range 0-3.5 m/s (forward)

0-2.5 m/s (backward)

0-2.8 m/s (sideways

Max Chassis Rotational Speed 600°/s
M3508I Brushless Motor
Max Rotational Speed 1000 rpm
Max Torque



0.25N·m
Max Output Power 19 W
Operating Temperature Range 10 to 40 °C (14 to 104 °F)
Driver FOC
Control Method Closed-loop speed control
Protection Overvoltage protection

Overtemperature protection

Soft-start

Short-circuit protection

Chip and sensor anomaly detection

Blaster



Controllable Launching Frequency 1-8/s
Max Launching Frequency 10/s
Initial Launching Speed



Approx. 26 m/s
Average Load  Approx. 430
Gimbal
Controllable Range Pitch: -20° to +35°

Yaw: ±250

Mechanical Range Pitch: -24° to +41°

Yaw: ±270°

Max Rotational Speed 540°/s
Vibration Control Precision (on the flat surface and with the Blaster idle)     ±0.02°
Intelligent Controller Latency [2]

Connection via Wi-Fi: 80-100ms

Connection via Router: 100-120ms

(unobstructed, free of interference)

Live View Quality 720p/30fps
Max Live View Bitrate 6 Mbps
Operating Frequency [3] 2.4 GHz, 5.1 GHz, 5.8 GHz
Operating Mode Connection via Wi-Fi, Connection via Router
Max Transmission Distance [4]
Connection via Wi-Fi: FCC, 2.4 GHz 140 m,5.8 GHz 90 m

CE, 2.4 GHz 130 m,5.8 GHz 70 m

SRRC, 2.4 GHz 130 m,5.8 GHz 90 m

MIC, 2.4 GHz 130 m

Connection via Router: FCC, 2.4 GHz 190 m,5.8 GHz 300 m

CE, 2.4 GHz 180 m,5.8 GHz 70 m

SRRC, 2.4 GHz 180 m,5.8 GHz 300 m

MIC,2.4 GHz 180 m

Transmission Power (EIRP) 2.400-2.4835 GHz

FCC: ≤30 dBm

SRRC: ≤20 dBm

CE: ≤19 dBm

MIC: ≤20 dBm

5.150-5.250 GHz

FCC: ≤30 dBm

SRRC: ≤23 dBm

CE: ≤20 dBm

MIC: ≤23 dBm

5.725-5.850 GHz

FCC: ≤30dBm

SRRC: ≤30dBm

CE: ≤14 dBm

Transmission Standard IEEE802.11a/b/g/
Intelligent Battery
Capacity 2400 mAh
Nominal Charging Voltage 10.8 V
Maximum Charging Voltage 12.6 V
Battery Type LiPo 3S
Energy 25.92 Wh
Weight 169 g
Operating Temperature Range     -10 to 40 °C (14 to 104 °F)
Charging Temperature Range 5 to 40 °C (41 to 104 °F)
Maximum Charging Power 29 W
Battery Life in Use 35 minutes (measured at a constant speed of 2 m/s on a flat surface)
Battery Life on Standby Approx. 100 minutes
Charger
Input 100-240 V, 50-60Hz
Output Port: 12.6 V=0.8A or 12.6 V=2.2A
Voltage 12.6 V
Rated Voltage 28 W
Gel Bead
Diameter 5.9-6.8 mm [2]
Weight  0.12-0.17 g [2]
App
App RoboMaster
iOS iOS 10.0.2 or later
Android Android 5.0 or later
Router
Recommended Routers TP-Link TL-WDR8600; TP-Link TL-WDR5640 (China)

TP-Link Archer C7; NETGEAR X6S (International)

Recommended outdoor power supply solution for routers

Laptop Power Bank (match the input power of the router)

microSD card
Supported SD Cards Supports microSD cards with a capacity up to 64GB

Designed to Win
The S1‘s design is a striking example of machine efficiency. With powerful configurations, the S1 lets you create, conquer, and push your limits as far as you’re ready to go.

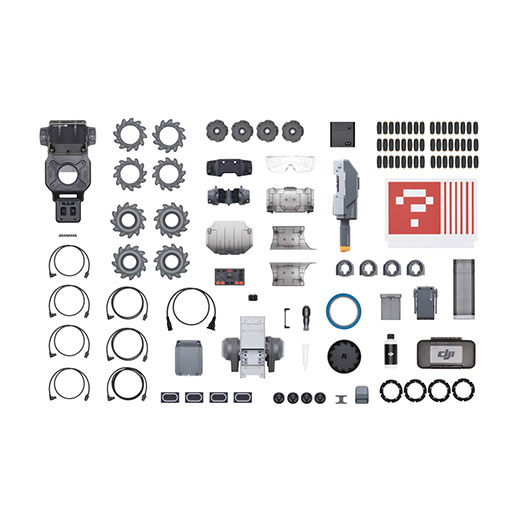

Build it!
A modular design lets you build your S1 from the ground up, furthering the fun and providing hands-on experience with every screw and wire.

Intelligent controller
Using a powerful CPU, the Intelligent Controller can simultaneously support functions such as low-latency high-definition image transmission, AI computing, and programming development. It also coordinates transmission seamlessly to execute command signals.

Learn by Doing
The RoboMaster S1 bridges the digital world with the real one, bringing abstract theories to life through practical operations. The S1 supports Scratch and Python programming languages, allowing users to experience math, physics, and AI technology in a cutting-edge and inspiring way.

Scratch & Python Programming
The S1 supports the Scratch and Python programming languages. This allows you to take your abilities to the next level, whether you are new to coding or are already on your way to becoming an expert.

    • Scratch 3.0

      Classic visual programming language used in primary and secondary schools worldwide.

    • Python

      Widely used in the field of artificial intelligence.

Powerful programming blocks enable you to explore a series of new functions with your S1. For example, new Scratch blocks for line follow allow the S1 to make turns at T-junctions and intersecting roads. Additionally, with new Scratch and Python interfaces for the speaker module, you can add musical notes to the action or even write a song for your S1 to play

Endless Possibilities
Up to 46 customizable components[3] give you unlimited space for innovation, enabling you to grow and learn in an exciting way that expands the capabilities of your S1, and yourself. Six PWM ports[4] and one SBus port support customized accessories, granting further options. Operate your S1 with a remote controller that supports SBUS protocol, or program complex codes with an external development board to explore the unlimited possibilities of the S1 and the magic of the robotic world.

Experience AI Technology
AI technology lets the S1 recognize gestures, sounds, and even other S1 robots. Playing with the RoboMaster S1 opens the doorway to AI learning, giving you a practical introduction to the technologies of tomorrow.

Get Started with Automatic Driving
By utilizing Vision Markers to create “traffic lights” and other obstacles, users can write their own programs that allow the S1 to drive automatically and execute complex tasks. Explore mathematical principles involving robotic control and motion mechanics through the S1’s six programmable artificial intelligence modules. Get an in-depth understanding of AI as you develop these skills and many more.

RoboMaster Robotics Competition
The S1 was inspired by DJI’s annual RoboMaster robotics competition. Since being founded in 2015, over 20,000 students from more than 400 schools have participated in this thrilling competition that tests wit, engineering, and problem-solving skills.

The World is Your Arena
Build your own competition arena anywhere, anytime and enjoy a variety of gameplay modes with an immersive FPV experience unlike any other. You can even record and share all the action with the touch of a button.

See the Action
Enjoy a unique and immersive driving experience with the S1’s exhilarating FPV perspective.

Race
Compete against opponents on your own custom track. Unlock special skills like extreme speed by recognizing specific Vision Markers, or unleash weapons like dizziness against competitors to gain an edge and win the race.

Conquest
Build your own competition arena and divide players into two teams. Set up your team strongholds, and the first team to occupy all of their opponent strongholds wins.

Develop Custom Skills
In any competition, wisdom is equally as important as power. The S1 enables users to apply their classroom knowledge to compile custom coding, unlocking unique functions that will surprise onlookers and defeat competitors. With its new education concept, the S1 helps users embrace the joy of learning in new and exciting ways.

Intercom
The new Intercom feature lets you enjoy voice interactions with friends nearby. You can also pre-record audio files in the RoboMaster app on your mobile device and play them on the S1, unlocking an array of exciting new possibilities.

RoboMaster App
With the dedicated RoboMaster app, multi-platform interactions and various operation methods for the S1 are supported, along with rich educational resources and several competition modes.
