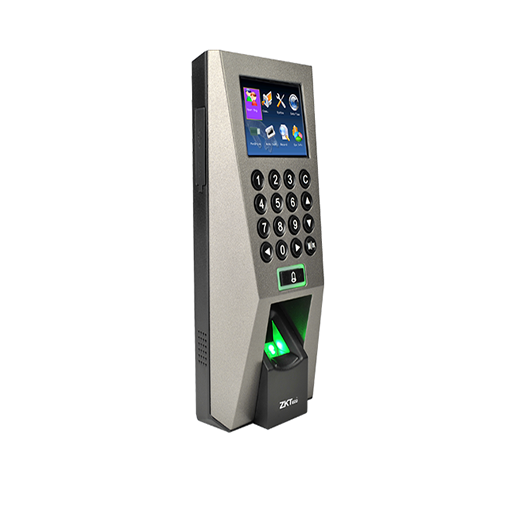

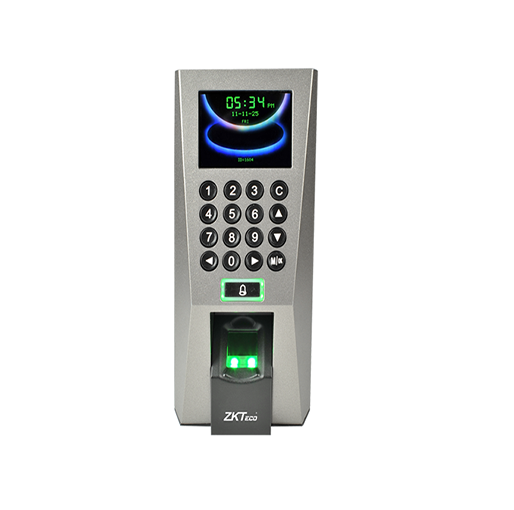

F18-Fingerprint Access Device
- TFT Color Screen
- Slim and Elegant Design
- New Platform
- Easy Installation and Connectivity
- Full Access Control Features
- New Firmware
Order now & Get it delivered Today!!
| Brand | ZKTeco |
| Display | 2.4-inch TFT LCD Color Screen |
| Fingerprint Capacity (optional) | 3,000 |
| Card Capacity | 5000(Optional) ID / IC / HID Prox / HID class card |
| Transaction Capacity | 100,000 |
| Sensor | ZK Optical Sensor |
| Algorithm Version | ZK Finger V10.0 |
| Communication | RS232 / 485*, TCP / IP, USB-host |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Wiegand Signal | Input, Output, SRB |
| Functions | DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional) |
| Power Supply | 12V DC, 3A |
| Operating Temperature | 0 °C – 45 °C |
| Operating Humidity | 20% – 80% |
| SDK and Software | AC push, ZKBio CVAccess / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5 |
| Dimension | 80 × 183 × 42mm (W*D*H) |
F18 is an innovative biometric fingerprint reader for access control applications. It has become one of ZKTeco’s most popular devices with high-performance firmware functions and a compact design. It is applied with ZKTeco’s latest firmware, which has a user-friendly UI and flexible user privilege settings for multi-level management. The new hardware platform uses a ZMM210 core board with 1a .2Ghz CPU. With optimization of both hardware platform and firmware, the new f18 can verify fingerprints with even higher efficiency. The device offers flexibility of both standalone installation and installation with any third-party access control panels that support standard Wiegand signal. TCP/IP is also available, enabling F18 to be applied in different networks.
F18 standard with AC push Firmware connected to ZKBio CVAccess, optional standalone Firmware, and also optional TA push Firmware connected to ZKBiotime.
