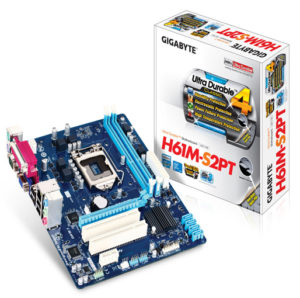

Gigabyte Motherboard-H61M-S2PT

Availability:

Out of stock


  • All new design of Ultra Durable 4 classic
  • Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
  • Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
  • Supports 3rd generation PCI-Express interface
  • Industry’s Leading All Solid Capacitor Design
  • Enhanced Intel HD Graphics 2000/3000 integrated with the processor
  • Innovative Smart 6 technology for smarter PC management
  • Dual UEFI BIOS protection with 3TB+ HDD boot up capability

QAR 299

Out of stock

Order now & Get it delivered Today!!

CPU

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package

2.L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer “CPU support List” for more information.)

Chipset

1. Intel® H61 Express Chipset

Memory

1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

2.Dual channel memory architecture

3.Support for DDR3 1333/1066/800 MHz memory modules

4.Support for non-ECC memory modules

5.Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU.

(Please refer “Memory Support List” for more information.)

Onboard Graphics

Integrated Graphics Processor:

1.1 x D-Sub port

Audio

1. Realtek® ALC887 codec

2.High Definition Audio

3.2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

1. Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
* Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.

2.1 x PCI Express x1 slot
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

3.2 x PCI slots

Storage Interface

Chipset:

1.4 x SATA 3Gb/s connectors

USB

Chipset:

1.8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector

2.1 x 4-pin ATX 12V power connector

3.4 x SATA 3Gb/s connectors

4.1 x CPU fan header

5.1 x system fan header

6.1 x front panel header

7.1 x front panel audio header

8.2 x USB 2.0/1.1 headers

9.1 x Clear CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard port

2.1 x PS/2 mouse port

3.1 x D-Sub port

4.1 x parallel port

5.1 x serial port

6.4 x USB 2.0/1.1 headers

7.1 x RJ-45 port

8.3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller

1. iTE® I/O Controller Chip

H/W Monitoring

1. System voltage detection

2.CPU/System temperature detection

3.CPU/System fan speed detection

4.CPU overheating warning

5.CPU/System fan fail warning

6.CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 2 x 32 Mbit flash

2.Use of licensed AMI UEFI BIOS

3.Support for DualBIOS™

4.PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features

1. Support for @BIOS

2.Support for Q-Flash

3.Support for Xpress Recovery2

4.Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.

5.Support for ON/OFF Charge

Bundled Software

1. Norton® Internet Security (OEM version)

Operating System

1. Support for Windows 8.1/8/7/XP

Form Factor

1. Micro ATX Form Factor; 24.4cm x 20cm

Humidity Protection

Humidity can play havoc on a motherboard’s circuitry.GIGABYTE’s new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

Electrostatic Protection

GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge.

Power Failure Protection

Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DualBIOS, which automatically enables a secondary, back up BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.

High Temperature Protection

GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures, providing up to 50,000* hour component lifespan.

Intel® Rapid Start Technology

Intel® Rapid Start Technology™ gets your device up and running faster from even the deepest sleep. This means users will be able to experience almost zero power draw from their PC, but be able to resume Windows® 7 is a few seconds without having the PC go through a full system boot. With Intel® Rapid Start Technology the previous session resumes to the exact as it was, so that applications are still in the same state and no application data is lost.

Intel® Smart Connect Technology

Intel® Smart Connect Technology means that your email, favorite apps, and social networks are continually and automatically updated even when the system is asleep. No more waiting for the latest world news or friends’ updates to be delivered—just press the ‘on’ button and you’re up-to-date and ready to go.

Auto Sync with Cloud

No manual interaction required to synchronize with cloud services.

Data Ready

Email, social media, and cloud apps always updated and available at power on.

Support Intel 22nm processors

GIGABYTE motherboards support Intel 22nm processors.

• Designed for PCI Express Gen.3 Support

The GIGABYTE motherboard is fully configured to provide gamers with the latest Gen.3 PCI Express technology, delivering maximum data bandwidth for forthcoming discrete graphics cards.
* PCIe Gen. 3 is dependent on CPU and expansion card compatibility.

• UEFI DualBIOS™ Technology

With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.

• 50,000 Hours All Solid Capacitors

GIGABYTE Ultra Durable motherboards are equipped with solid capacitors. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today’s most demanding applications and games.

Intel® HD Graphics Core 2000/3000 Enhanced Visual Features

Intel® Quick Sync Video
Intel® Quick Sync Video provides breakthrough media processing for incredibly fast editing and sharing.
Intel® InTru™ 3D
2nd Generation Intel® Core™ Processors offer an outstanding Blu-Ray Stereo 3D experience in full high definition resolution (1080p) with HDMI 1.4.
Intel® Advanced Vector Extensions (AVX)
Increases the performance of Accelerated Floating Point and Vector Computing Intensive Applications with minimal power gains.

ErP Lot 6 support
The ErP (also known as Energy-Related Products Directive) is part of the European Union’s environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
