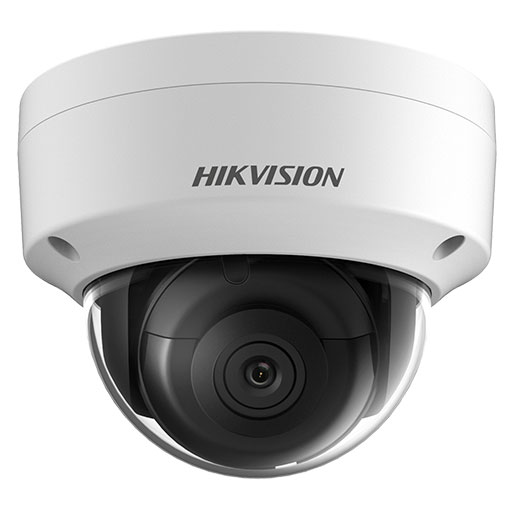

Hikvision 2 MP WDR Fixed Dome Network Camera

QAR 349

Availability:

Out of stock

SKU: DS-2CD2121GO-1 Categories: , ,

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Support up to 256 GB SD card storage
  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Support up to 256 GB SD card storage

QAR 349

Out of stock

Camera
Image Sensor 1/2.7″ Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 120 dB
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focal Length & FOV 2.8 mm: horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9°

4 mm: horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°

6 mm: horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°

Lens Mount M12
Focus Fixed
Aperture F1.6
Illuminator
IR Range Up to 30 m
IR Wavelength 850 nm
Video
Max. Resolution 1920 × 1080
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Region Of Interest (ROI) Support 1 fixed region for main stream
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS



Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Network Storage Support Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in Micro SD slot, up to 256 GB
Audio -S: 1 input (line in), 1 output (line out)
Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA)
Hardware Reset Yes
Event
Smart Event Line crossing detection, intrusion detection
General
Linkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Camera Material Metal & Plastic
Camera Dimension Ø110.8 mm × 84.7 mm (Ø 4.4″ × 3.3″)
Package Dimension 135 mm × 135 mm × 110 mm (5.3″ × 5.3″ × 4.3″)
Camera Weight Approx. 497 g (1.1 lb.)
With Package Weight Approx. 597 g (1.3 lb.)
Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Web Client Language 33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,

French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,

Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,

Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version V5.5.120
Power Supply 12 VDC ± 25%

PoE: 802.3af, Class 3

Power Interface Ø5.5 mm coaxial power plug
Power Consumption And Current 12 VDC, 0.4 A, max. 5 W

PoE: (802.3af, 36 V to 57 V), 0.20 A to 0.15 A, max. 6.5 W

Approval
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)

Hikvision 2 MP WDR Fixed Dome Network Camera with High quality imaging with 2 MP resolution, Efficient H.265+ compression technology, Clear imaging against strong back light due to 120 dB true WDR technology, Water and dust resistant (IP67) and vandal proof (IK10), Support up to 256 GB SD card storage.
