|Form Factor||UCFF (4″ x 4″)|
|CPU Type||Intel Core i5-10210U Processor (6M Cache, up to 4.20 GHz)|
|Memory installed||No Memory|
|Memory slot||2 x 260Pin SO-DIMM|
|Memory Type Supported||DDR4 2666|
|Max Memory Supported||64GB|
|Dual Channel Memory Supported||Yes|
|Hard Drive Installed||No Hard Drive|
|Serial ATA||2 x SATA 6.0Gb/s|
|M.2||M.2 slot with PCIe 3.0 X4 lanes, 22×42/80|
|Onboard Video||Intel UHD Graphics|
|Max LAN Speed||10/100/1000Mbps|
|Wireless LAN||Intel Wi-Fi 6 AX201|
|2.5″ Internal Bays||2.5″ HDD/SSD + M.2 SSD|

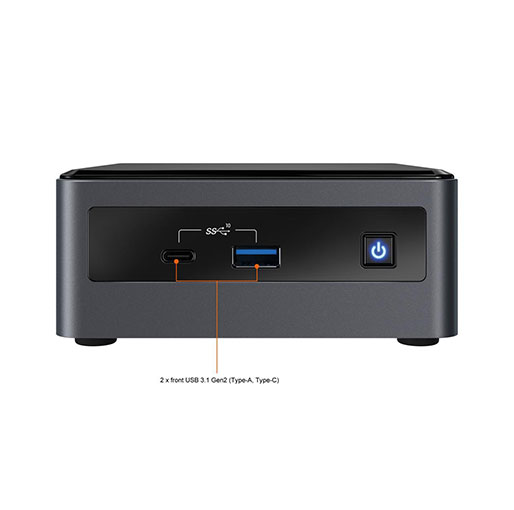

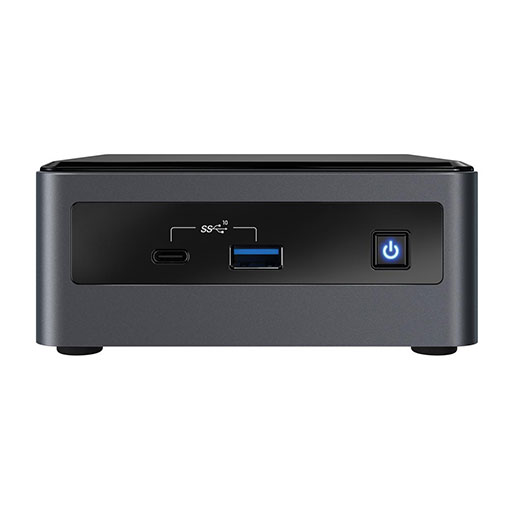

|Front USB||2 x front USB 3.1 Gen2 (Type-A, Type-C)|

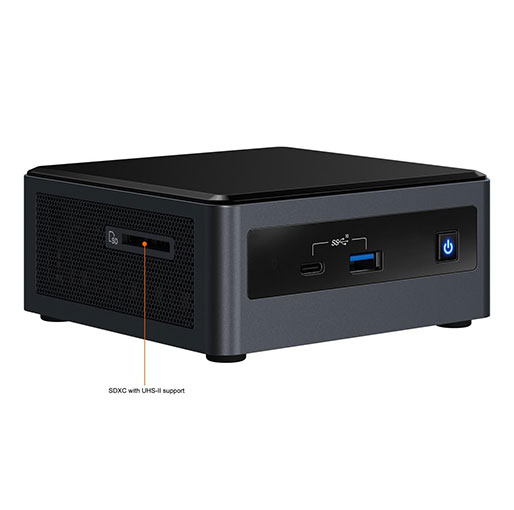

|Card Reader||SDXC with UHS-II support|

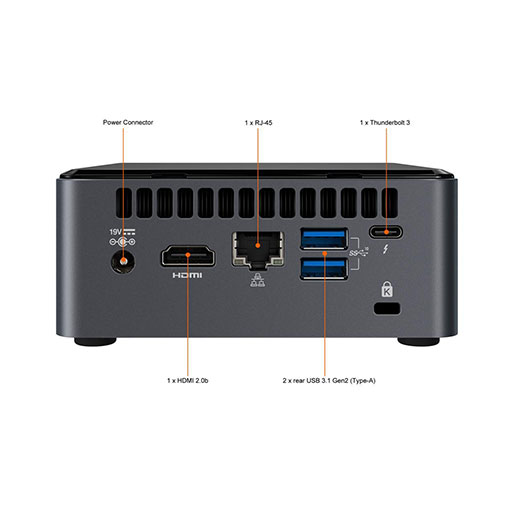

|HDMI||1 x HDMI 2.0b|
|Thunderbolt 3||1 x Thunderbolt 3|
|Rear USB||2 x rear USB 3.1 Gen2 (Type-A)|
|Features||Frost Canyon NUC Core i5 tall, no codec, US cord|

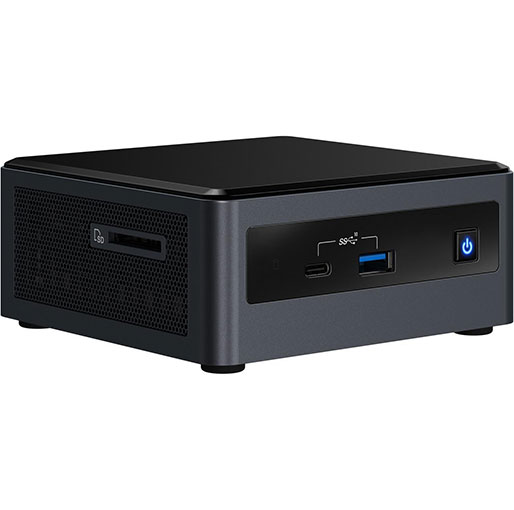

Intel’s NUC, now in it’s 10th generation, is a small form factor PC with a tiny footprint. Short for Next Unit of Computing, Intel NUC puts full-sized PC power in the palm of your hand. Get your Intel NUC exactly the way you need it. Choose from these ready-to-run Intel NUC mini PCs, barebones for building your own. Just add some RAM, a M.2 drive and an operating system and you’re good to go!
Everything a PC Can Do, Intel NUC Can Do Smaller
Intel NUC mini PCs squeeze a powerful processor, fast memory, and massive storage comparable to the latest full-size desktop PCs into the smallest form factors they can engineer.
High Performance, Powered by the Newest Intel Technology
Intel NUCs feature the latest 10th Gen Intel Core processors, available with integrated graphics, in either solid state drive (SSD) or hard disk drive (HDD) configurations, and are all engineered to work together in an incredibly small space.
Intel NUC: Nothing to Sacrifice But Space

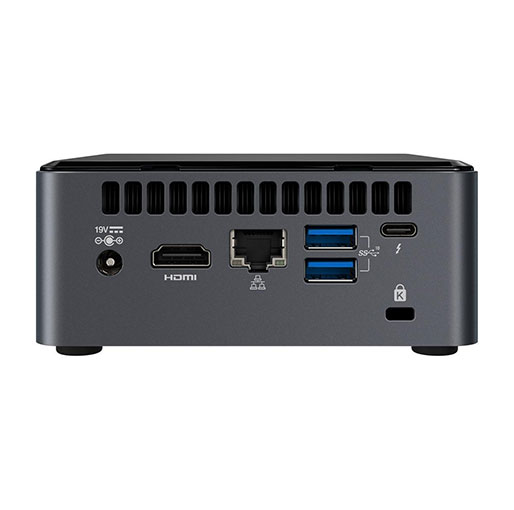

Intel NUC mini computers have more connectivity than a lot of current laptops. Multiple front and back USB ports, HDMI, Thunderbolt 3 technology, a microSD slot and Gigabit Ethernet give you total flexibility.
Plug in Intel NUC and Get to Work
Intel NUC mini PCs are ready to run right out of the box and super easy to operate. Connect your monitor, keyboard, and mouse—power up and you’re done.
Open Platform for Makers and Integrators
Intel NUC barebones kits and boards are powerful mini PCs for projects of every scale, from custom-tuned gaming machines to industrial applications. Intel NUC kits and boards ship without an operating system in a range of chassis, form factors and configurations.
Mini PC Form Factor, Mini Energy Footprint
Intel optimise every Intel NUC mini PC for small spaces and low power. Choose an Energy Star certified Intel NUC to ensure efficient power consumption.
Quality and Reliability by Intel
Intel NUC is the only mini PC engineered, built, and backed by Intel. You get the quality, performance, and long-term reliability you expect from Intel, backed by a one-year Intel warranty.
