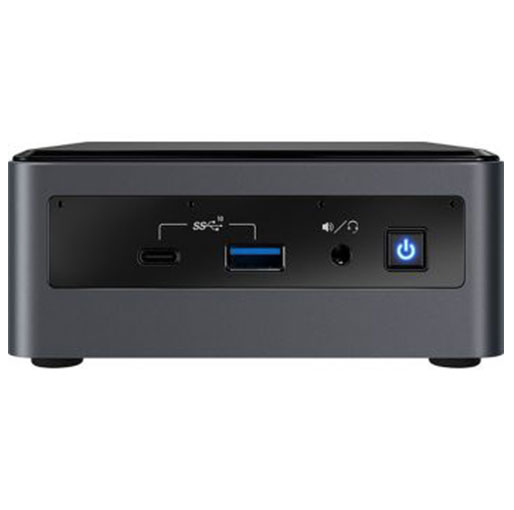

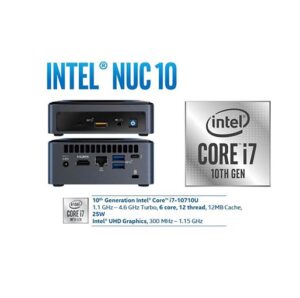

Intel NUC Mini PC Barebone with 10th Generation Intel Core i7 Processor, M.2 Slot, 2.5 inch Bay

QAR 2,499

Availability:

Out of stock


  • 1.1 GHz Intel Core i7-10710U Six-Core
  • support 2 x DDR4-2666 SO-DIMM Slots (Up to 64GB)
  • 1 x M.2-2280 Slot (NVMe or SATA)
  • 1 x 2.5″ SATA III Drive Bay
  • Wi-Fi 6 & Bluetooth 5.0
  • 1.1 GHz Intel Core i7-10710U Six-Core
  • support 2 x DDR4-2666 SO-DIMM Slots (Up to 64GB)
  • 1 x M.2-2280 Slot (NVMe or SATA)
  • 1 x 2.5″ SATA III Drive Bay
  • Wi-Fi 6 & Bluetooth 5.0

QAR 2,499

Out of stock

Order now & Get it delivered Today!!

Product Collection Intel® NUC Kit with 10th Generation Intel® Core™ Processors
Code Name Products formerly BEAN CANYON
Status Launched
Launch Date Q3’18
Board Form Factor UCFF (4″ x 4″)
Socket Soldered-down BGA
Internal Drive Form Factor M.2 and 2.5″ Drive
# of Internal Drives Supported 2
Lithography 14 nm
TDP 28 W
DC Input Voltage Supported 12-19 VDC
Processor Included Intel® Core™ I7-10710UProcessor (8M Cache, up to 4.50 GHz)
Warranty Period 1 Year Warranty

Supplemental Information

Embedded Options Available No
Datasheet View now
Description Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones

Memory & Storage

Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR4-2400 1.2V SO-DIMM
Max # of Memory Channels 2
Max Memory Bandwidth 38.4 GB/s
Max # of DIMMs 2
ECC Memory Supported  No

Processor Graphics

Integrated Graphics  Yes
Graphics Output HDMI 2.0a; USB-C (DP1.2)
# of Displays Supported  3

Expansion Options

PCI Express Revision Gen3
PCI Express Configurations  M.2 slot with PCIe X4 lanes
Removable Memory Card Slot microSDXC with UHS-I support
M.2 Card Slot (storage) 22×42/80

I/O Specifications

# of USB Ports 6
USB Configuration 2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers
USB Revision 2.0, 3.1 Gen2
USB 2.0 Configuration (External + Internal) 0 + 2
USB 3.0 Configuration (External + Internal) 2B 2F + 0
Total # of SATA Ports 2
Max # of SATA 6.0 Gb/s Ports 2
RAID Configuration 2.5″ HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
Audio (back channel + front channel) 7.1 digital (HDMI mDP); L+R mic (F)
Integrated LAN Intel® Ethernet Connection I219-V
Integrated Wireless Intel® Wireless-AC 9560 + Bluetooth 5.0
Integrated Bluetooth Yes
Consumer Infrared Rx Sensor Yes
Additional Headers CEC, 2x USB2.0, FRONT_PANEL
# of Thunderbolt™ 3 Ports 1

Package Specifications

Low Halogen Options Available No

Advanced Technologies

Intel® Optane™ Memory Supported  Yes
Intel® Virtualization Technology for Directed I/O (VT-d) Yes
Intel® vPro™ Platform Eligibility  No
TPM No
Intel® HD Audio Technology Yes
Intel® Rapid Storage Technology Yes
Intel® Virtualization Technology (VT-x)  Yes
Intel® Platform Trust Technology (Intel® PTT) Yes

Security & Reliability

Intel® AES New Instructions Yes

Tailored to Your Needs
Get spectacular responsiveness that goes virtually anywhere with an Intel NUC Mini PC Kit. Build the exact system you want by selecting different memory options and storage configurations. The kit also includes room for a 2.5” HDD and is Intel Optane memory ready.

A Visual Powerhouse
With a quad-core 8th generation Intel Core i7 processor inside, the Intel NUC8i7BEH Mini PC Kit delivers the latest features—in a size that fits any lifestyle. Enjoy great visual immersion with Intel Iris Plus Graphics 655 and support for triple displays all in 4K Ultra HD. Other connectivity options include Thunderbolt 3, HDMI* 2.0a and DisplayPort 1.2* via USB-C.

Software Bundle
Accomplish more at work and enjoy more at play with a bonus software bundle.
