|GPU Model||NVIDIA GeForce RTX 2060|
|Stream Processors||1920 CUDA Cores|
|Boost Clock Speed||1710 MHz|
|Interface||PCI Express 3.0 x16|
|Supported APIs||DirectX: 12
|Memory Speed||14 Gb/s|
|Memory Configuration||6 GB|
|Memory Interface Width||192-Bit|
|Memory Bandwidth||336 GB/s|
|Display Connectors||3 x DisplayPort 1.4
1 x HDMI 2.0b
|Maximum Digital Resolution||7680 x 4320 @ 60 Hz|
|Max Power Consumption||160 W|
|PCI Power Connectors||1 x 8-Pin|
|Recommended System Power Requirement||500 W|
|Height||5.04″ / 128.00 mm|
|Length||8.07″ / 205.00 mm|
|Cooler Type||Open Fansink|
|In the Box||MSI GeForce RTX 2060 VENTUS XS OC Graphics Card|
|Package Weight||2.5 lb|
|Box Dimensions (LxWxH)||14 x 10.65 x 3.25″|

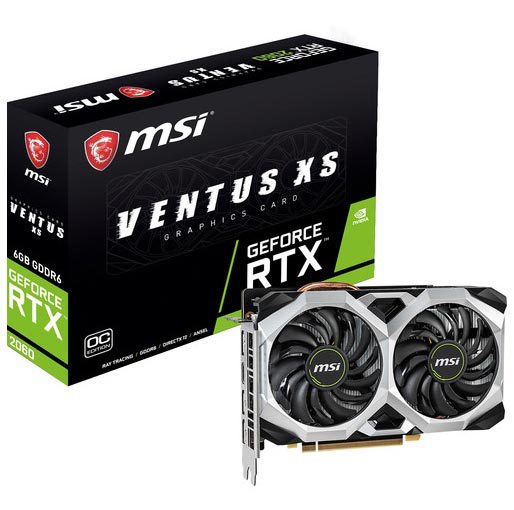

MSI GeForce RTX 2060 VENTUS XS 6G OC DirectX 12 RTX 2060 6GB 192-Bit GDDR6 PCI Express 3.0 x16 HDCP Ready Graphics Video Card
Out of stock
Out of stock
Send me an Email when the product is back in stock:
Based on the Turing architecture, the MSI GeForce RTX 2070 GAMING Z Graphics Card brings the power of real-time ray tracing and AI to your PC games.
There are three DisplayPort 1.4 outputs and one HDMI 2.0b output. The RTX 2060 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU’s 1920 cores to accelerate tasks using CUDA or other APIs.
For cooling, MSI implemented dual TORX 2.0 fans, which maximizes downwards airflow and air dispersion to the heat sink below them. This GPU also utilizes MSI ZeroFrozr technology to eliminate fan noise by stopping the fans in low-load situations.
Real-Time Ray Tracing
Enables real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination. The RTX 2060 features 5 GigaRays per second and up to 37T RTX-OPS*.
*Equivalent aggregate math operations contributed by the Turing Shaders, CUDA Cores, Tensor Cores, and RT Cores needed to render RTX graphics.
NVIDIA GPU Boost 4.0
Boosts the card’s clock speed in real-time based on the target temperature. If the card is running below the set target temperature, GPU Boost 4.0 will increase the clock speed to improve performance. The target temperature can be reset depending on your preference so you can have the card run more quietly for everyday tasks and older games, and run at full tilt during intense high-resolution gaming sequences.
With Ansel, gamers can compose the gameplay shots they want, pointing the camera in any direction and from any vantage point within a gaming world. They can capture screenshots at up to 32 times the screen resolution, and then zoom in where they choose without losing fidelity. With photo-filters, they can add effects in real-time before taking the shot. And they can capture 360-degree stereo photospheres for viewing in a VR headset or Google Cardboard.
NVIDIA’s parallel computing platform which enables an increase in computing performance by harnessing the parallel nature of GPU processing. CUDA-compatible applications can assign intensive parallel computing tasks, such as real-time video rendering, to the GPU to process, freeing up the computer’s CPU to run other tasks.
When used with a monitor that has G-SYNC hardware installed, the monitor’s refresh rate will sync and lock with the graphics card’s output frame rate. Establishing this sync removes tearing and stuttering which can result from conventional fixed screen refresh rates, especially important for gaming in stereoscopic 3D. An additional benefit of G-SYNC is reduced lag so gamers will benefit from the improved command response time as well.
