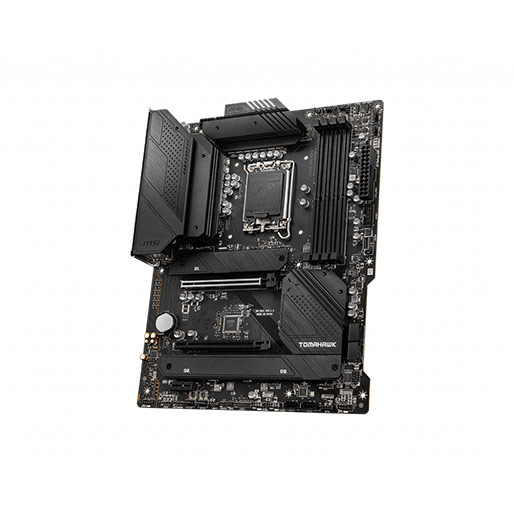

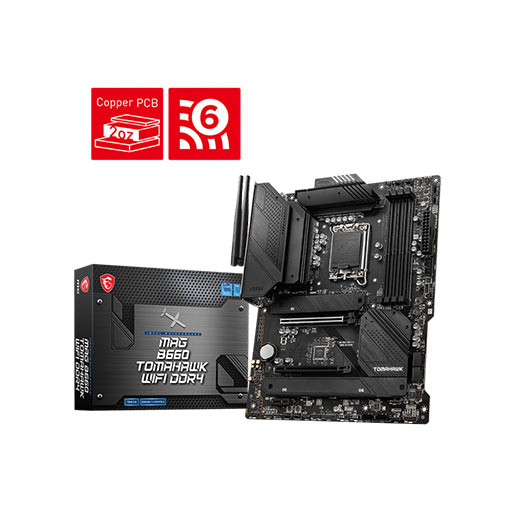

MSI MAG B660 Tomahawk Wifi DDR4 ATX Motherboard

Availability:

Out of stock


  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

Out of stock

Order now & Get it delivered Today!!

CPU (Max Support) i9
Socket 1700
Chipset Intel® B660 Chipset
DDR4 Memory 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Memory Channel Dual
DIMM Slots 4
Max Memory (GB) 128
PCI-E x16 2
PCI-E x1 1
WiFi & Bluetooth Intel® Wi-Fi 6 module
SATAIII 6
M.2 Slot 3
RAID 0/1/5/10
LAN 1x Realtek® 8125BG 2.5G LAN
USB 3.2 ports (Front) 1(Gen 2, Type C), 1(Gen 1, Type A)
USB 3.2 ports (Rear) 1(Gen 2×2, Type C), 4(Gen 2, Type A)
USB 2.0 ports (Front) 4
USB 2.0 ports (Rear) 4
Audio ports (Rear) Realtek® ALC1220P Codec
DisplayPort 1
CrossFire Y
HDMI 1
DirectX 12
Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit
Form Factor ATX

PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme Conditions

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MAG B660 TOMAHAWK WIFI DDR4

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
