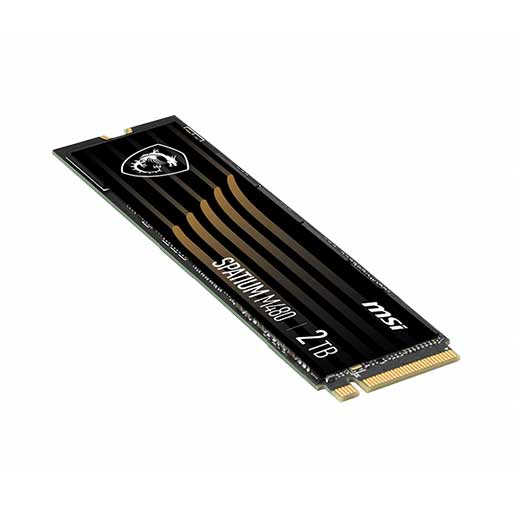

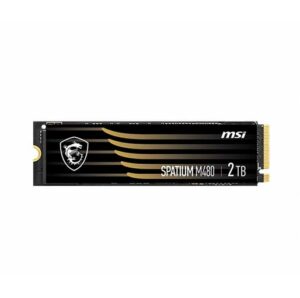

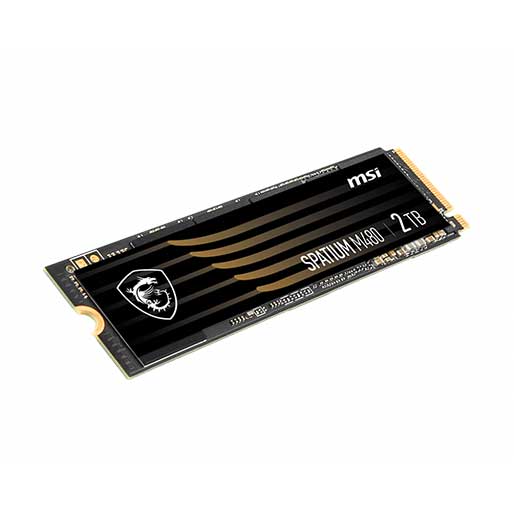

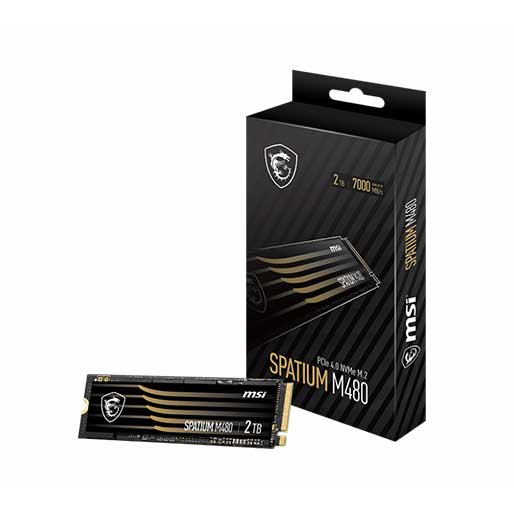

|MODEL NAME||SPATIUM M480 PCIe 4.0 NVMe M.2|
|FLASH MEMORY||3D NAND|
|DRAM CACHE||2GB DDR4|
|FORM FACTOR||M.2 2280|
|INTERFACE||PCIe Gen4x4, NVMe 1.4|
|COMPATIBILITY||PCIe Gen4 / Gen3 / Gen2 / Gen1|
|DIMENSIONS||80.00mm (L) x 22.00mm (W) x 2.15mm (H)|
|SEQUENTIAL READ UP TO (MB/S)||7000|
|SEQUENTIAL WRITE UP TO (MB/S)||6800|
|RANDOM READ 4KB UP TO (IOPS)||650,000|
|RANDOM WRITE 4KB UP TO (IOPS)||700,000|
|MAXIMUM OPERATING POWER (W)||8.2|
|IDLE POWER PS3 (MW)||22|
|LOW POWER L1.2 (MW)||3|
|OPERATING TEMPERATURES||0°C – 70°C|
|STORAGE TEMPERATURES||-40°C – 85°C|
|TERABYTES WRITTEN (TBW)||1400|
|MEAN TIME BETWEEN FAILURE (MTBF)||Up to 1,600,000 Hours|
|ADVANCED FEATURES||TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security)
CHARGING AHEAD WITH SPEED
From the MSI universe comes storage with blazing speeds and incredible performance. Take your system to the next level with SPATIUM.
Read 7000 MB/s
Write 6800 MB/s
A Need for Speed!
Optimized for the PCIe Gen4 interface, SPATIUM M480 SSD reaches read/write speeds up to 7000/6800 MB/s, allowing for rapid data transfer and shortened game load times.
SPATIUM M480 PCIe Gen4 vs SATA3 SSD vs Conventional HDD
Small Size, More Storage
The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 2TB.
Don’t Stop Gaming
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage.
Take Care of Your Data
Migrate your data, monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality.
