|Device Type||Internal Solid State Drive (SSD)|
|Form Factor||M.2 2280|
|Memory Components||3D NAND|
|Interface||PCIe Gen4x4, NVMe 1.4|
|Max Sequential Read||Up to 7000 MBps|
|Max Sequential Write||Up to 5500 MBps|
|4KB Random Read||Up to 350,000 IOPS|
|4KB Random Write||Up to 700,000 IOPS|
|Terabytes Written (TBW)||700TB|
|Features||TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security)
|Power Consumption (Idle)||14 mW|
|Power Consumption (Active)||6.6W|
|Operating Temperature||0°C ~ +70°C|
|Storage Temperature||-40°C ~ +85°C|
|Dimensions & Weight|
|Height||20.40mm (w/ heatsink)
2.15mm (w/o heatsink)
|Width||23.00mm (w/ heatsink)
22.00mm (w/o heatsink)
|Depth||80.40mm (w/ heatsink)
80.00mm (w/o heatsink)
Charging Ahead with Speed
Take your system performance to a new level with MSI SPATIUM Series SSD. Built with PCI Gen 4 interface and using high-density 3D NAND flash technology, it delivers fast read/write speeds and enables large capacity. The built-in data security and error-correction capabilities give you peace of mind.
A Need for Speed!
Optimized for the PCIe Gen4 interface, SPATIUM M480 SSD reaches read/write speeds up to 7000/6800 MB/s, allowing for rapid data transfer and shortened game load times.

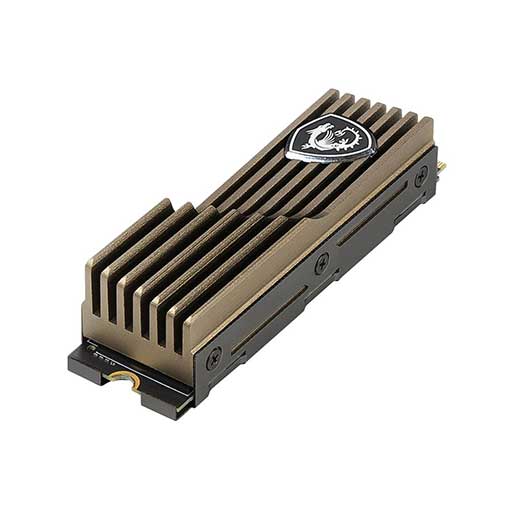

SPATIUM M480 sports a gorgeous bronze-colored aluminum heatsink with a stacked fin structure that efficiently dissipates heat and allows the SSD to sustain maximum performance under heavy load.
Small Size, More Storage
The latest 3D NAND flash technology brings dense storage in a compact design and allows SPATIUM storage capacities up to 2TB.
Don’t Stop Gaming
Built-in data security and error-correction capabilities extend the endurance and longevity of the NAND flash storage.
Take Care of Your Data
Migrate your data, and monitor drive health and performance metrics in real-time with MSI Center. Prevent loss of data using the provided Actiphy software solution which includes backup & restore functionality.
