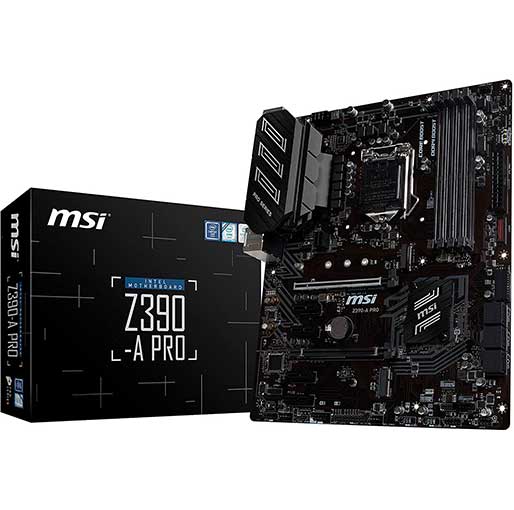

MSI Z390-A Pro LGA1151 Gaming Motherboard

Availability:

Out of stock

SKU: MB-MSI-Z390-A-PRO

Categories: , , ,

  • Supports 9th i9-9900K, i7-9700K, i5-9600K and 8th Generation Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
  • Supports dual channel DDR4 Memory, up to 4400(OC) MHz
  • Turbo M.2: PCI-E Gen3 x4 interface maximizes performance for NVMe SSDs
  • Core Boost, 8+4 pin CPU power connector, DDR4 Boost
  • Built for reliable operation
  • Operating System – Support for Windows 10 64-bit
  • Intel Turbo USB 3.1 Gen2: Powered by Intel USB 3.1 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

QAR 999

Out of stock

Order now & Get it delivered Today!!

ProcessorSupports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
ChipsetIntel® Z390 Chipset
Memory4 x DDR4 memory slots, support up to 128GB

Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz

Supports Dual Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

  • Please refer to Compatibility for more information on compatible memory
Slots2 x PCIe 3.0 x16 slots

4 x PCIe 3.0 x1 slots

1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only

Onboard graphics1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz

1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz

1 x DisplayPort, supports a maximum resolution of 4096×2304@60Hz

Multi-gpuSupports 2-Way AMD® CrossFire™ Technology
StorageIntel® Z390 Chipset

6 x SATA 6Gb/s ports

1 x M.2 slot (Key M)

Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices

Intel® Optane™ Memory Ready

  • The SATA2 will be unavailable when installing M.2 SATA device into M.2 slot.
  • Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RaidIntel® Z390 Chipset

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USBIntel® Z390 Chipset

2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)

6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors

6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

  • The CNVI_1 and JUSB2 share the same bandwidth. Please refer to page 32 for details.
AudioRealtek® ALC892 Codec

7.1-Channel High Definition Audio

Lan1 x Intel® I219-V Gigabit LAN controller
Internal connectors1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 6-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x M.2 slots (1 M-Key slot,1 E-Key slot)

2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector

1 x 4-pin Water Pump connector

5 x 4-pin system fan connectors

1 x Front panel audio connector

2 x System panel connectors

1 x Chassis Intrusion connector

1 x 4-pin RGB LED connector

1 x Serial Port connector

1 x Clear CMOS jumper

1 x Parallel port connector

1 x TPM module connector

1 x thunderbolt Add-on card connector

1 x Front OC button connector

Back panel portsPS/2 Combo

VGA

USB 3.1 Gen2 Type A+C

LAN

HD Audio Connectors

USB 2.0

DVI-D

Displayport

USB 3.1

Dimensions12 in. x 9.6 in. (30.5 cm x 24.4 cm)

ATX Form Factor

Mounting9 mounting holes
Operating systemSupport for Windows® 10 64-bit

Combining quality you can rely on with top performance and clever business solutions are key aspects of the MSI Pro Series motherboards. Engineered to gratify even the most demanding professional, these motherboards will fit in any PC. Making your life easier and supporting your business with super stable, reliable and long-lasting top performance. This MSI product supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you noticeable benefits. Start programs faster, load data faster and increase productivity.

Extended Heatsink Design
Heatsinks on top of the VRM help to dissipate excessive heat. Extended heatsinks have even more surface area for more thermal dissipation.

Core Boost
Core Boost technology combines MSI’s premium circuit layout and digital power design to deliver undistorted current to the CPU with pin-point precision.

Turbo M.2
Enjoy a blazing fast system boot up, quick applications load times, and high data transfer with Z390-A PRO. A high performance M.2 slot can deliver speeds up to 32Gb/s for NVMe SSDs.

Audio Boost
Audio Boost offers a HD audio processor and high quality sound components, all physically isolated from the rest of the motherboard circuitry for immersive audio.

PCI-E Steel Armor
MSI PCI Express Steel Armor slots have heavy solder points on the motherboard for a stronger hold. Metal reinforced slots firmly support large graphics cards.
