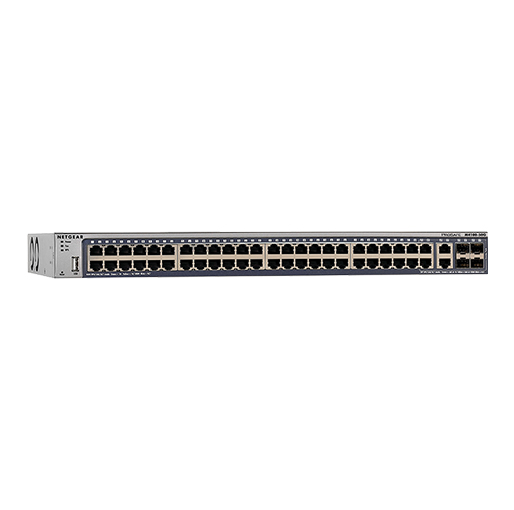

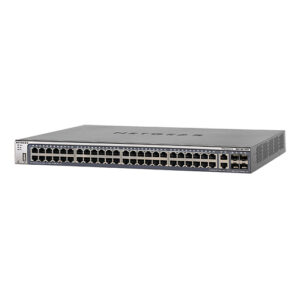

|Model Description||50 ports Gigabit, Layer 2+ software package|
|RJ45 Ports||50 x 10/100/1000|
|Fiber SFP (100/1000)||4 x SFP|
|Power over Ethernet (PoE / PoE+)||N/A|
|PoE Budget (Watts)||N/A|
|Redundant Power Supply||RPS|
|Powered by PoE+ (Passthrough)||N/A|
|Feature Set||Layer 2+ (static routing)|
|Form Factor||Rack 1U – Standalone|
Layer 2+ with static routing
M4100 series comes with Port-based / VLAN-based / Subnet-based “static routing” Layer 2+ versions.
L3 fixed routes to the next hop towards the destination network are added to the routing table.
L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4).
Engineered for convergence
Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol.
Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration.
Advanced classifier-based hardware for L2, L3, L4 security and prioritization.
Advanced Multicast filtering with IGMP and MLD snooping and querier modes.
High-value performance and IPv6 ready
16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet.
IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS – DiffServ).
Industry Standard Management
Industry standard command line interface (CLI)
Fully functional NETGEAR web interface (GUI)
