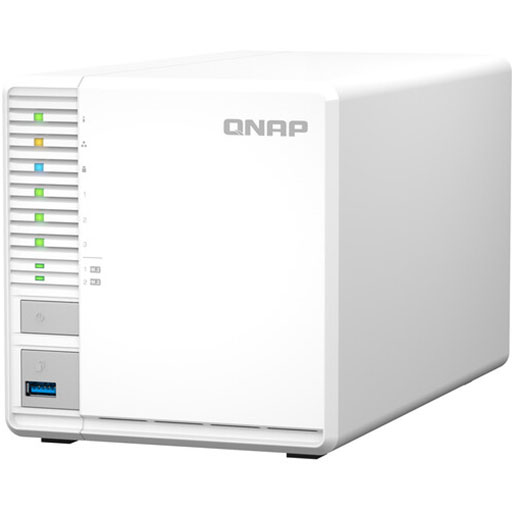

QNAP TS-364 3-Bay NAS Enclosure

QAR 2,907

Availability:

Available on backorder

Delivery within 3 - 4 weeks.( Delivery time may change depending on the stock)
  • 3 x 3.5″ Drive Bays
  • 2 GHz Intel Celeron N5105 Quad-Core CPU
  • 4GB DDR4 RAM
  • 2.5G Ethernet Port
  • USB 3.2 Gen 1 & 2 | HDMI
  • RAID 0, 1, 5, JBOD, Single
  • Up to 271 MB/s Sequential Read Speeds
  • Up to 251 MB/s Sequential Write Speeds
  • QTS 5 Operating System
  • 3 x 3.5″ Drive Bays
  • 2 GHz Intel Celeron N5105 Quad-Core CPU
  • 4GB DDR4 RAM
  • 2.5G Ethernet Port
  • USB 3.2 Gen 1 & 2 | HDMI
  • RAID 0, 1, 5, JBOD, Single
  • Up to 271 MB/s Sequential Read Speeds
  • Up to 251 MB/s Sequential Write Speeds
  • QTS 5 Operating System

QAR 2,907

Available on backorder

Order By Call

Order now & Get it delivered Today!!

CPU 2 to 2.9 GHz Quad-Core
Processor Intel Celeron N5105
GPU Intel UHD Graphics
Total Installed Memory 4 GB DDR4
User-Replaceable Memory 1 x 4 GB
Total Memory Slots 2 x SO-DIMM
Maximum Memory Capacity 16 GB
Flash Memory 5 GB
General
Number of Bays 3 x 2.5″/3.5″
2 x M.2 (2280)
I/O 1 x RJ45 (2.5GbE)
1 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
2 x USB Type-A (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s))
1 x HDMI Type-A (HDMI 1.4b)
Compatible Drive Interface SATA III
Media Card Slots None
Form Factor Desktop
RAID RAID 0, 1, 5, JBOD, Single
Hot-Swap Support Yes
Wake on LAN Yes
Networking
Supported Protocols AFP
CIFS/SMB
FTP
HTTP
HTTPS
IPv4
IPv6
SNMP v2
SNMP v3
SSH
Telnet
iSCSI Target 256
Max Concurrent Connections 1500
Max Folders 512
Max Sync Tasks 400
Max Groups 512
Max User Accounts 4096
Max Volume Number 128
Software
Installed Operating System QTS 5.0.0
Supported File Systems Internal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility macOS 10.10 or Later
Windows 7 or Later
Windows Server 2008 R2 or Later
Ubuntu 14.4 or Later
CentOS 7 or Later
Linux
UNIX
*As of March, 2022: check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Edge, Firefox, Safari
Security
Encryption 256-Bit AES
Security Features Kensington Security Slot
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source AC Adapter
Power Consumption 32.8 W (Typical)
PSU Wattage 1 x 65 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 158°F / -20 to 70°C
Physical
Status Monitoring LED Indicator
Audible Alarm Yes
Cooling 1 x 92 mm Fan
Built-In Speakers None
IR Sensor None
Dimensions 10.24 x 5.9 x 5.6″ / 260.1 x 150.1 x 142 mm
Weight 3.6 lb / 1.6 kg

Designed for flexibility and performance, the QNAP TS-364 3-Bay NAS Enclosure can be configured for a variety of tasks that range from archiving your photos and videos to being at the heart of your entertainment center. This entry to mid-level desktop enclosure supports up to three 3.5″ hard drives, the minimum needed for a RAID 5 configuration, which optimizes speed, data protection, and storage capacity. Separately sold adapters are required to install 2.5″ drives. Performance can be further enhanced by installing compatible solid-state cache drives into the two M.2 2280 slots. This NAS enclosure integrates into your network through its high-speed 2.5G Ethernet port. When configured with three 2.5″ SSDs in RAID 5 mode, the TS-364 can reach up to 271 MB/s sequential read speeds with 251 MB/s write speeds, making the system ideal for tasks such as streaming videos to connected devices and backing up important files. You can protect your data with 256-bit AES volume encryption. The QNAP TS-364 NAS uses the QTS 5 operating system.

Performance
Powered by a 2 GHz Intel Celeron N5105 quad-core processor with 4GB of memory, the TS-364 is designed to support high-speed data transfers.

Cool Design
The stylish enclosure is designed to provide efficient airflow for optimal performance, even with demanding workloads,

SSD Cache Acceleration
Installing cache drives into the two M.2 2280 PCIe 3.0 slots can significantly boost overall performance and support technologies such as the AI-powered Google Edge TPU image recognition system to quickly analyze and locate specific photos and videos.

RAID Support
Installed drives may be configured for RAID 0, 1, 5, JBOD, or Single modes.

Versatile Connectivity
Two 10 Gb/s USB 3.2 Gen 2 Type-A ports are available alongside one 5 Gb/s USB 3.2 Gen 1 port, allowing you to quickly transfer files directly to the NAS using compatible storage drives. You can also transform this NAS into a mini computer by attaching a keyboard and mouse to the USB ports and connecting a 4K monitor through the HDMI port.

All-in-One Backup Solution
Have peace of mind by backing up data such as photos, videos, and documents from all your connected devices. The TS-364 can back up data from Windows, Mac, and mobile devices in addition to external storage drives. With Hybrid Backup Sync, you can sync files from your Google Drive and other cloud storage services for an extra layer of redundancy. Hybrid Backup can also optimize your storage by removing duplicate data.

Media Streaming
Power your media center by streaming videos, music, and photos directly from the TS-364 to connected smart TVs, computers, tablets, phones, and more. Supported streaming applications include Plex and Roon, which also stream to Android TV, Apple TV, Roku, Amazon Fire TV, and other devices.

QTS 5 OS
The integrated QTS 5 operating system is designed for fast performance while supporting a wide variety of apps.

Cloud Access
Access your TS-364 NAS from almost anywhere using the myQNAPcloud service, which integrates with the myQNAPcloud Link app to provide a unique domain name for you to log into so that you’ll always have your important files when you need them.

High Security
In addition to IP blocking and HTTPS connectivity, the TS-364 helps to ensure protection against threats like malware and hackers with support for 2-step verification, advanced folder permissions, a firewall app, a security counselor, and more.

Home Surveillance System
The TS-364 includes two free IP camera channels, and you can purchase additional ones through the subscription-based QVR Elite service. You can also connect USB webcams to the NAS and operate them using the QUSBCam2 app with remote monitoring through the QVR Pro Client companion mobile app.
