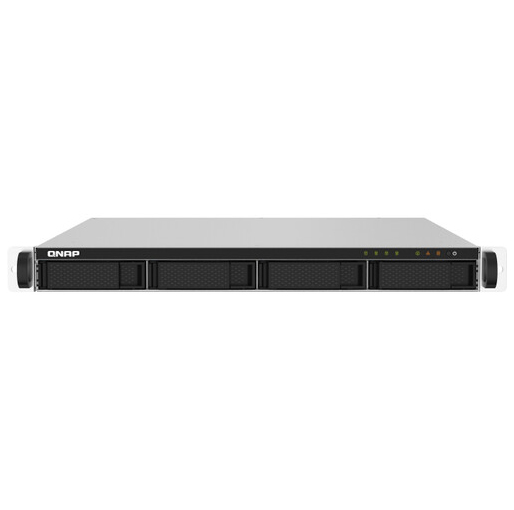

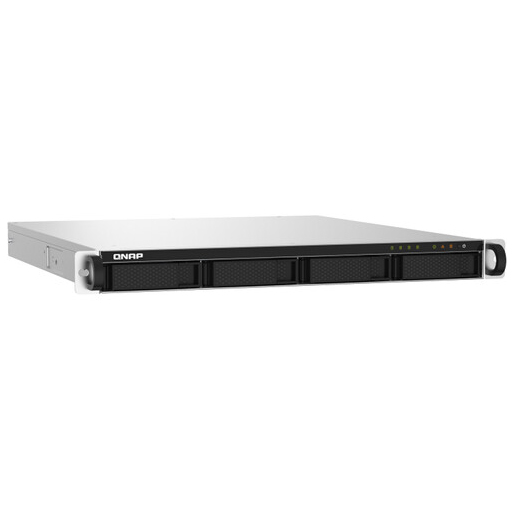

QNAP TS-432PXU-2G-US 4-Bay NAS Enclosure


Available on backorder

  • 4 x 2.5″ / 3.5″ SATA III Drive Bays
  • 1.7 GHz Annapurna Labs AL324 4-Core CPU
  • 2GB DDR4 RAM
  • 2 x 2.5GbE Ports | 2 x 10Gb SFP+ Ports
  • 4 x USB 3.2 Gen 1 Type-A Ports
  • RAID 0, 1, 5, 6, 10, JBOD & Single
  • Up to 2040 MB/s Read Speed
  • Up to 676 MB/s Write Speed
  • AES 256-Bit Volume Encryption
  • QTS 4.4.3 Operating System

QAR 4,078

Available on backorder

Order By Whatsapp Order By Call

Order now & Get it delivered Today!!

CPU1.7 GHz Cortex A57 Quad-Core
ProcessorAnnapurna Labs Alpine AL-324
Total Installed Memory2 GB DDR4
User-Replaceable Memory1 x 2 GB
Total Memory Slots1 x DIMM
Maximum Memory Capacity16 GB
Flash Memory512 MB
Number of Bays4 x 2.5″/3.5″
I/O2 x RJ45 (2.5GbE)
2 x SFP+ (10GbE)
4 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
Compatible Drive InterfaceSATA II, SATA III
Media Card SlotsNone
Form FactorRackmount (1 RU)
RAIDRAID 0, 1, 10, 5, 6, JBOD, Single
Hot-Swap SupportYes
PCI Expansion1 x PCIe 2.0 (x2 Electrical)
Wake on LANYes
Link Aggregation and Failover SupportYes
Supported ProtocolsAFP
iSCSI Target256
Max Concurrent Connections700
Max Cameras Supported8
Installed Operating SystemQTS 4.4.3
Supported File SystemsInternal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS CompatibilitymacOS 10.10 or Later
Windows 7 or Later
Windows Server 2008 or Later
Ubuntu 14.4 or Later
CentOS 7 or Later
*As of October, 2021: check with manufacturer for the most up-to-date compatibility
Supported BrowsersChrome, Firefox, Safari
Encryption256-Bit AES
AC Input Power100 to 240 VAC, 50 / 60 Hz
Power SourceAC Adapter
Power Consumption39.558 W (Typical)
PSU Wattage1 x 250 W
Operating Temperature32 to 104°F / 0 to 40°C
Operating Humidity5 to 95%
Storage Temperature-4 to 158°F / -20 to 70°C
Status MonitoringLED Indicator
Audible AlarmYes
Cooling2 x 40 mm Fans
Built-In SpeakersNone
IR SensorNone
Dimensions19.64 x 17.28 x 1.73″ / 49.91 x 43.89 x 4.39 cm
Weight14.4 lb / 6.5 kg

Expand your network’s storage capacity with the QNAP TS-432PXU-2G-US 4-Bay NAS Enclosure to quickly and reliably perform high-bandwidth tasks such as backing up critical data, sharing files, and more. This 1 RU rackmount NAS enclosure supports up to four 2.5″ / 3.5″ SATA III drives, which can be configured in RAID 0, 1, 5, 6, 10, JBOD, or Single mode to balance between speed and security. By combining the two 2.5GbE RJ45 Ethernet ports using link aggregation, the TS-432PXU-2G-US can achieve read speeds of up to 492 MB/s with 582 MB/s in RAID 5 mode using SSDs. Read speeds jump to about 2040 MB/s with 676 MB/s write speeds when using the dual 10Gb SFP+ ports with fiber connections to compatible devices. Performance can be further enhanced by installing an M.2 solid-state cache drive adapter, a 10Gb Ethernet card, or other compatible expansion into the available PCIe 2.0 x2 slot. The pre-installed QTS 4.4.3 operating system supports a variety of applications to help organize, find, and share your data with connected devices.

The TS-432PXU is powered by a 1.7 GHz Annapurna Labs Alpine AL324 Cortex-A57 quad-core processor with 2GB of DDR4 memory and 512MB of flash memory storage, which work to support up to 700 concurrent connections. You can help boost data transfer efficiency by installing up to 16GB of RAM into the system’s one memory slot.

Multi-Point File Backup & Sync
With Hybrid Backup Sync (HBS), you can consolidate data backup, recovery, and synchronization functions with another QNAP NAS, remote server, or cloud storage service to transform your NAS into a secure data center. Files uploaded to the TS-432PXU will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration.

USB Connectivity
Four USB 3.2 Gen 1 ports are available, which can transfer up to 5 Gb/s with compatible devices such as external storage drives.

Volume Encryption
Your data is secured by hardware-based AES 256-bit encryption.
