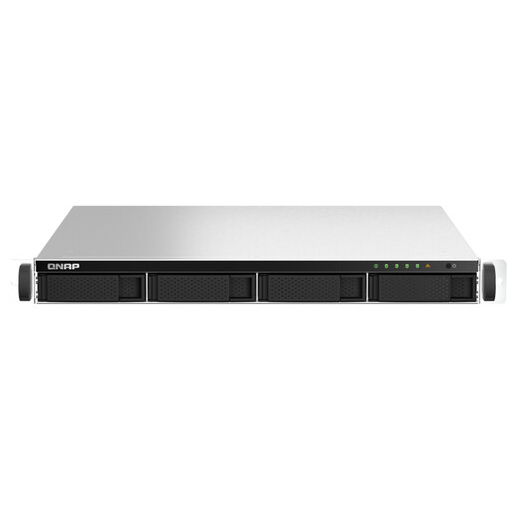

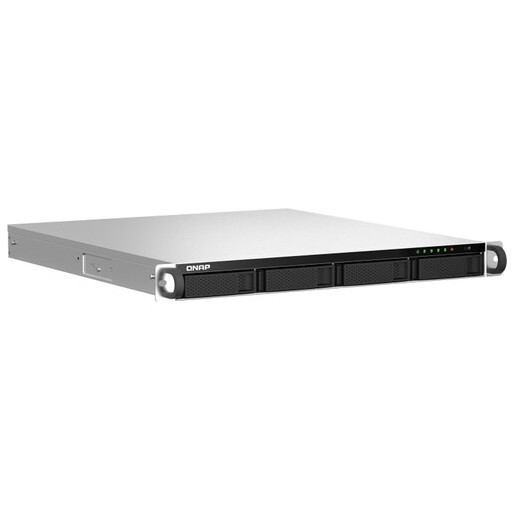

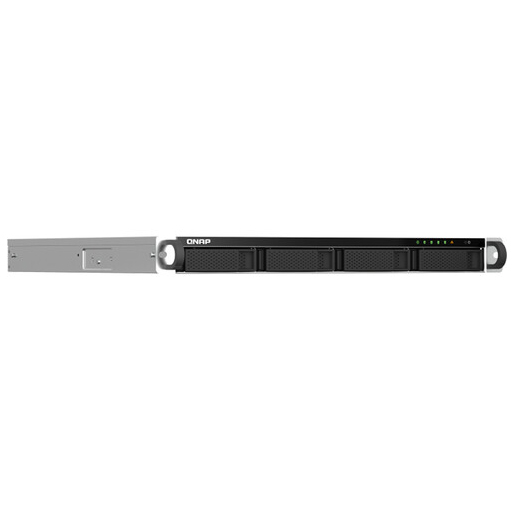

QNAP TS-464U 4-Bay NAS Enclosure


Available on backorder

  • 4 x 3.5″/2.5″ SATA III Bays
  • 2.0 GHz Intel Celeron Quad-Core
  • 4GB DDR4 RAM
  • 2 x 2.5 Gigabit Ethernet Ports
  • USB 3.2 Gen 2 Type-A | USB 2.0 Type-A
  • RAID 0, 1, 5, 6, 10, JBOD, and Single
  • Up to 253 MB/s File Transfer Speeds
  • AES 256-Bit & AES-NI Encryption
  • Single 250W Power Supply
  • QTS 5.0.0 Operating System

QAR 5,419

Available on backorder

Order By Whatsapp Order By Call

Order now & Get it delivered Today!!

CPU2 to 2.9 GHz Quad-Core
ProcessorIntel Celeron
GPUIntel UHD Graphics
Total Installed Memory4 GB DDR4
User-Replaceable Memory1 x 4 GB
Total Memory Slots2 x SO-DIMM
Maximum Memory Capacity16 GB
Flash Memory4 GB
Number of Bays4 x 2.5″/3.5″
I/O2 x RJ45 (2.5GbE)
2 x USB Type-A (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s))
2 x USB Type-A (USB 2.0 (480 Mb/s))
1 x HDMI Type-A (HDMI 1.4b)
Compatible Drive InterfaceSATA II, SATA III
Media Card SlotsNone
Form FactorRackmount (1 RU)
RAIDRAID 0, 1, 10, 5, 6, JBOD, Single
Hot-Swap SupportYes
PCI Expansion1 x PCIe 3.0 x2
Wake on LANYes
Link Aggregation and Failover SupportYes
Supported ProtocolsAFP
iSCSI Target256
Max Concurrent Connections1500
Max Folders512
Max Groups512
Max User Accounts4096
Max Volume Number128
Installed Operating SystemQTS 5.0.0
Supported File SystemsInternal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS CompatibilitymacOS 10.10 or Later
Windows 11
Windows 10
Windows 8
Windows 7
Windows Server 2019
Windows Server 2016
Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 R2
Ubuntu 14.4 or Later
CentOS 7 or Later
*As of May, 2022: check with manufacturer for the most up-to-date compatibility
Supported BrowsersChrome, Edge, Firefox, Safari
Supported LanguagesBrazilian Portuguese
Simplified Chinese
Traditional Chinese
Encryption256-Bit AES, AES-NI
VPN Client Connections100
AC Input Power100 to 240 VAC, 50 / 60 Hz
Power SourceInternal Power Supply
Power Consumption36.81 W (Typical)
22.285 W (Standby)
PSU Wattage1 x 250 W
Operating Temperature32 to 104°F / 0 to 40°C
Operating Humidity5 to 95% (Non-Condensing)
Storage Temperature-4 to 158°F / -20 to 70°C
Status MonitoringLED Indicator
Audible AlarmYes
Cooling2 x 40 mm Fans
Built-In SpeakersNone
Dimensions19.05 x 19 x 1.7″ / 48.39 x 48.3 x 4.3 cm
Weight14.6 lb / 6.6 kg

The TS-464U 4-Bay NAS Enclosure from QNAP features two 2.5GbE RJ45 ports and Port Trunking for up to 5 Gb/s of combined bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display, while a PCIe 3.0 x2 slot lets you extend NAS functionality with a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U also supports AES 256-bit encryption to help ensure the confidentiality of sensitive business data without affecting system performance.

The TS-464U is powered by a 2.0 GHz Intel Celeron Quad-Core processor and 4GB of DDR4 RAM that can be upgraded to 16GB. It supports JBOD and a variety of RAID modes, including RAID 0, 1, 5, 6, and 10, each of which offer data redundancy, speed, or a combination of both. This 4-bay enclosure has the ability to natively house both 3.5″ and 2.5″ SATA III and SATA II hard drives or SSDs. Using the external 10 Gb/s USB 3.2 Gen 2 Type-A, 480 Mb/s USB 2.0 Type-A, and HDMI 1.4b ports, this QNAP NAS can be connected to other QNAP devices, as well as other external drives and displays.

The TS-464U 4-Bay NAS Enclosure operates on 100-240 VAC at 50-60 Hz using a 250W power supply and stays cool using two 40mm fans. It includes an Ethernet cable, one power cord, 48 screws for 3.5″ drives, 36 screws for 2.5″ drives, and two hangers. Protection is provided by a limited 3-year warranty.

Quad-Core High Performance and up to 16GB RAM
The TS-464U is powered by a 2.0 GHz Intel Celeron Quad-Core processor and supports up to 16GB of DDR4 memory, two 2.5GbE ports, and SATA III 6 Gb/s drives. The integrated Intel AES-NI encryption engine also helps protect confidential data without impacting system performance. Using one 2.5GbE port, download speeds reach up to 194 MB/s, while upload speeds max out at 230 MB/s. When using one 2.5GbE port with encryption, download speeds deliver a throughput of up to 253 MB/s, while upload speeds slightly drop to 225 MB/s.

Streamlined Large File Transfers and Video Editing with 2.5GbE
The TS-464U comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing Cat 5e cables to upgrade network speeds from 1GbE to 2.5GbE. The dual 2.5GbE ports also support Port Trunking for up to 5 Gb/s transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.

Future-Proof Your IT Infrastructure for High-Speed Networks
The TS-464U is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provides 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows/Linux workstations, allowing you to easily build a high-speed network environment for productive team collaboration.

Enhance Productivity with Multiple USB Ports
With two 10 Gb/s USB 3.2 Gen 2 Type-A ports and two 480 Mb/s USB 2.0 Type-A ports, you can quickly backup and transfer large files to/from the TS-464U. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.

Abundant I/O Capabilities with PCIe 3.0 Expansion
The TS-464U has a PCIe 3.0 x3 slot that allows for installing various expansion cards for expanding application potential.

25GbE/10GbE Network Cards
Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup/restoration.

QM2 M.2 SSD Cards
Adds M.2 NVMe SSD caching or 10GbE/2.5GbE connectivity to the TS-464U for optimized performance and bandwidth.

10 Gb/s USB 3.2 Gen 2 Cards
Add extra USB ports to the TS-464U.

Wireless Adapters
Install a QXP-W6-AX2000 Wi-Fi 6 wireless adapter to turn the TS-464U into a wireless NAS. Or, make the TS-464U a wireless access point by installing the QWA-AC2600 wireless adapters and the WirelessAP Station app.

SSD Caching and Auto Tiering for Optimized Storage Efficiency
The TS-464U supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier Technology empowers the TS-464U with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Direct 4K HDMI Output for Multimedia and Virtual Machine Display
The TS-464U features Intel UHD Graphics that supports dual-channel hardware decoding and real-time transcoding. The HDMI 1.4b output supports up to 4K (3840 x 2160p) at 60 Hz, providing great benefits for applications like video production/editing or industrial design that demand high resolution and color realism, as well as intensive media storage, transfer, and display. By connecting the TS-464U to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-464U as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.

Note: The TS-464U’s hardware provides hardware decoding, encoding, and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.

Faster Image Identification with Integrated Intel OpenVINO AI Engine
With integrated Intel OpenVINO AI computing resources, the TS-464U accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.

QuMagie Photo Management
Easy-to-use photo management solution that integrates AI image recognition and intelligent classification for your collection.

QTS 5 – Fast, Smooth, and User Friendly
The TS-464U comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Brighter and Smoother
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get Started with the Notice Board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Smooth and Reactive User Interface
Whether clicking buttons, switching between apps, or expanding/collapsing windows, every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

Comprehensive Backup and Disaster Recovery Solution
The TS-464U supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

PC/Laptop Backup
For Windows, install NetBak Replicator to back up your PC to your QNAP NAS. In macOS, just set up the built-in Time Machine to secure your data.

Remote Backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-464U to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

VM Backup
Enjoy license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.

SaaS Backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 to the NAS.

Note: Minimum memory requirements are 2GB available and 4GB installed.

Cloud Backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

QuDedup Technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.

Multi-Version Snapshots Mitigate Ransomware Threats
The TS-464U supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Volume and LUN Snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

Instantly Restore Snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

Back Up Snapshots
Multiply data protection by backing up snapshot files. Replicate volume/LUN snapshots in the TS-464U to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

All-in-One Solution for Hosting Virtual Machines and Containers
By running multiple virtual machines and containers on the TS-464U, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station
Run multiple Windows, Linux, UNIX, Android, and QuTScloud virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without needing additional physical servers.

Container Station
Experience Docker, LXD, and Kata Containers lightweight virtualization technologies, download apps from the built-in Docker Hub Registry, import/export containers, and create abundant microservices.

Linux Station
Run Linux applications (including apps from the Software Center) directly on the NAS and remotely access the Linux desktop from a web browser. The open-source Linux platform is also ideal for Internet of Things development.

Comprehensive Security and Privilege Settings
The TS-464U is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, and Hand TTPS connectivity, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

myQNAPcloud Secures Remote Access
myQNAPcloud allows convenient connection to the TS-464U through the internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.

Simplified Privilege Settings
The TS-464U supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall Protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior Security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-464U as a VPN server, and WireGuard VPN service with an easy-to-use interface for setting up a secure connection.

To facilitate digital transformation, multi-site expansion, and remote working, QuWAN SD-WAN helps automatically mesh multi-site VPN. It features IPsec encryption and cloud-centric management, allowing secure multi-site network, including QNAP NAS and VMware ESXi platforms.

Security Counselor
A security portal for the TS-464U to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover
Regularly scan your TS-464U using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

File and Storage Collaboration Center
The TS-464U integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows, Mac, and Linux/UNIX, and provides a smart NAS solution for professionally managing your files.

File Station
Manage, access, and share all the files in the TS-464U and view snapshot files, all from your web browser. You can also easily mount remote NAS folders and cloud storage.

Make any file uploaded to a TS-464U available to linked devices, such as computers, laptops, and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.

QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.

Smart Surveillance Solution for 24/7 Security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-464U and enjoy simplified camera management, storage space allocation, camera live viewing and playback.

Flexible and Economical Storage Expansion

QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-464U storage as needed to accommodate data and business growth.

Attach QNAP Expansion Enclosures
Connect expansion enclosures to the TS-464U and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount Cloud Storage or Remote File Servers
Mount cloud storage or remote file servers to expand the capacity of the TS-464U while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

More Productivity-Boosting Apps
The TS-464U provides an App Center that includes feature-rich apps to expand your NAS potential.

Run a high-performance S3 compatible development environment on your TS-464U to simplify service development workflows from testing to production. You can also move cold data from the cloud to an on-premises QuObjects to save cloud storage costs.

Notification Center
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

Proxy Server
By using a high-capacity TS-464U as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.

Centralize multiple email accounts and protect your data by using secondary backup, making managing and backing up emails absolutely easy.

Centrally manage all your contacts, import contacts from Google, import/export contact information using CSV or vCard files, and enjoy an always-online database of contact information.

The TS-464U can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.

A Health Check for Your Hard Drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.

S.M.A.R.T. and Back Block Scanning
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.

DA Drive Analyzer
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.

Seagate IronWolf Health Management
When using supported IronWolf or IronWolf Pro hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
