QNAP TS-932PX-4G 9-Bay NAS Enclosure

QAR 3,932

Availability:

Available on backorder

Delivery within 3 - 4 weeks.( Delivery time may change depending on the stock)
  • 5 x 3.5″ / 4 x 2.5″ SATA Drive Bays
  • 1.7 GHz ARM Cortex-A57 CPU
  • 4GB DDR4 RAM
  • 2 x 2.5GbE RJ45 Ports
  • 2 x 10GbE SFP+ Ports
  • 3 x USB 3.2 Gen 1 Ports
  • RAID 0, 1, 5, 6, 10, 50, and 60
  • QTS Operating System
  • 5 x 3.5″ / 4 x 2.5″ SATA Drive Bays
  • 1.7 GHz ARM Cortex-A57 CPU
  • 4GB DDR4 RAM
  • 2 x 2.5GbE RJ45 Ports
  • 2 x 10GbE SFP+ Ports
  • 3 x USB 3.2 Gen 1 Ports
  • RAID 0, 1, 5, 6, 10, 50, and 60
  • QTS Operating System

QAR 3,932

Available on backorder

Order By Call

Order now & Get it delivered Today!!

CPU 1.7 GHz Cortex A57 Quad-Core
Processor Annapurna Labs Alpine AL-324
Total Installed Memory 4 GB
User-Replaceable Memory 1 x 4 GB
Total Memory Slots 1 x SO-DIMM
Maximum Memory Capacity 16 GB
Flash Memory 512 MB
General
Number of Bays 5 x 3.5″
4 x 2.5″
I/O 2 x RJ45 (2.5GbE)
2 x SFP+ (10GbE)
3 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
Compatible Drive Interface SATA III
Media Card Slots None
Form Factor Desktop
RAID RAID 0, 1, 10, 5, 50, 6, 60, JBOD, Single
Hot-Swap Support Yes
Wake on LAN Yes
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CIFS/SMB
FTP
FTPS
HTTP
HTTPS
IPv4
IPv6
L2TP/IPSec
NFS
SFTP
SMTP
SNMP
SNMP v1
SNMP v2
SSH
SSL
TFTP
Telnet
WebDAV
iSCSI
iSCSI LUN 256
Max Concurrent Connections 700
Max Sync Tasks 500
Max Cameras Supported 8
Software
Installed Operating System QTS 4.4.2
Supported File Systems Internal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility macOS 10.10 or Later
Windows 7 or Later
Windows Server 2008 R2 or Later
Ubuntu 14.4
CentOS 7
Linux
UNIX
*As of November, 2020: check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Firefox, Internet Explorer, Safari
Security
Encryption 256-Bit AES
Security Features Kensington Security Slot
VPN Client Connections 100
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source AC Adapter
PSU Wattage 1 x 120 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95%
Physical
Status Monitoring LED Indicator
Audible Alarm Yes
Cooling 1 x 140 mm Fan
Noise Level 18.6 dBA
Built-In Speakers None
IR Sensor None
Dimensions 8.84 x 8.82 x 7.19″ / 22.45 x 22.4 x 18.26 cm
Weight 7.5 lb / 3.4 kg

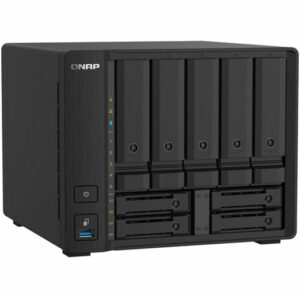

Quickly set up and manage your backups, data syncs, and file sharing while expanding your network capacity with the TS-932PX 9-Bay NAS Enclosure from QNAP. Built with dual 2.5GbE RJ45 connectivity alongside two 10GbE SP+ ports for fiber connections, a 1.7 GHz ARM Cortex-A57 processor, and 4GB of DDR4 memory that’s expandable to 16GB, this NAS is designed to deliver fast and reliable data transfers supporting hybrid HDD and SSD configurations. The TS-932PX includes five 3.5″ and four 2.5″ SATA III drive bays, supporting RAID 0, 1, 5, 6, 10, 50, 60, JBOD, and Single configurations. With support for SSD cache technology, Qtier auto-tiering, and SSD over-provisioning, installing solid-state drives can boost performance. Three USB 3.2 Gen 1 ports are also available for connecting peripherals such as storage drives and printers that can be shared across the network. The QNAP TS-932PX is compatible with Windows, Mac, Linux, and Unix operating systems.

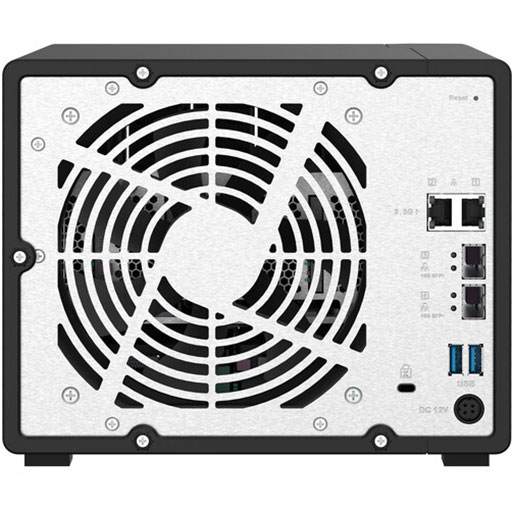

High Speed Connectivity
The TS-932PX features two 2.5GbE RJ45 ports and two 10GbE SFP+ ports for versatility in addition to Port Trunking and Failover support to reinforce your network infrastructure.

Storage Performance
Install up to five 3.5″ and two 2.5″ SATA III drives in RAID 0, 1, 5, 6, 10, 50, 60, JBOD, and Single configurations. Using a hybrid HDD and SSD configuration allows you to take advantage of features such as SSD caching, Qtier auto-tiering, and SSD over-provisioning, to boost performance.

Protect Data with Snapshots
Snapshots include a full record of the NAS system state and its metadata. They can be used to quickly restore files to previously-recorded states in the event of accidental deletion, modification, or other data catastrophe. The TS-932PX supports up to 256 snapshots per NAS and up to 64 snapshots per volume or LUN.

Multi-Point File Backup, Access, and Sync
With the TS-932PX’s file sharing protocols the Qsync utility, any file uploaded to NAS becomes available for all connected devices. Hybrid Backup Sync helps you to backup or synchronize data on the TS-932PX to another QNAP NAS, remote server, or cloud storage solution for added data redundancy.

AI-Driven Photo Management
The QuMagie application features QuMagie Core AI image-recognition technology for facial recognition, subject identification, and geotagging photos. It intelligently categorizes similar photos into albums sorted by people, places, and things. It also features a built-in timeline scroll, customizable folder covers, an iOS Live Photo display, and a powerful search tool for streamlined photo management and sharing.

Find and Automatically Organize Files
Use the Qsirch application to quickly find images, music, videos, documents, emails, and other files using keywords, colors, and different filters. Qfiling automates file organization, archiving, and recycling based on configurable rules for greater efficiency.

Remote Access
Using myQNAPcloud Link allows you to access, share, download, and manage files stored on an NAS via the internet. VPN services are also supported so that remote workers can access the NAS and its resources on a private network from the Internet.
