|CPU||Intel® Atom® x6425E 4-core/4-thread processor, burst up to 3.0 GHz|
|CPU Architecture||64-bit x86|
|Graphic Processors||Intel® UHD Graphics for 10th Gen Intel® Processors|
|Floating Point Unit|
|System Memory||8 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
|Maximum Memory||8 GB on board (non-expandable)|
|Flash Memory||4GB (Dual boot OS protection)|
|Drive Bay||4 x 2.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
|Drive Compatibility||2.5-inch SATA solid state drives|
|SSD Cache Acceleration Support|
|10 Gigabit Ethernet Port||2 x 10GBASE-T (10G/5G/2.5G/1G)|
|Wake on LAN (WOL)|
|USB 3.2 Gen 2 (10Gbps) Port||4|
|HDMI Output||1, HDMI 1.4b (up to 3840 x 2160 @ 30Hz)|
|LED Indicators||Power/Status, LAN, SSD 1-4|
|Dimensions (HxWxD)||65 × 180 × 254 mm|
|Weight (Net)||2.54 kg|
|Weight (Gross)||3.73 kg|
|Operating Temperature||-40 – 70 °C (-40°F – 158°F)|
|Storage Temperature||-45 – 85°C (-49°F – 185°F)|
|Relative Humidity||5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)|
|Power Supply Unit||1. External Power Adapter, 90W and above, AC 100-240V
2. 9-36V DC input
To avoid potential personal injury or component damage, DO NOT plug in two power inputs simultaneously.
|Kensington Security Slot|
|Max. Number of Concurrent Connections (CIFS) – with Max. Memory||1500|

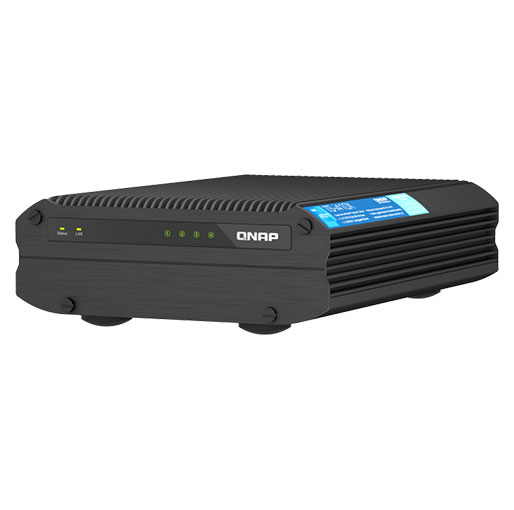

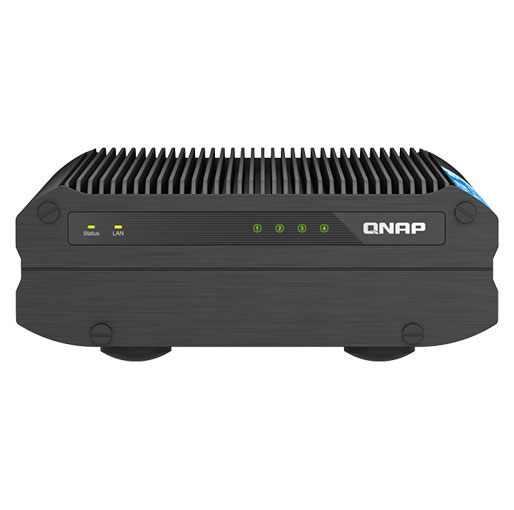

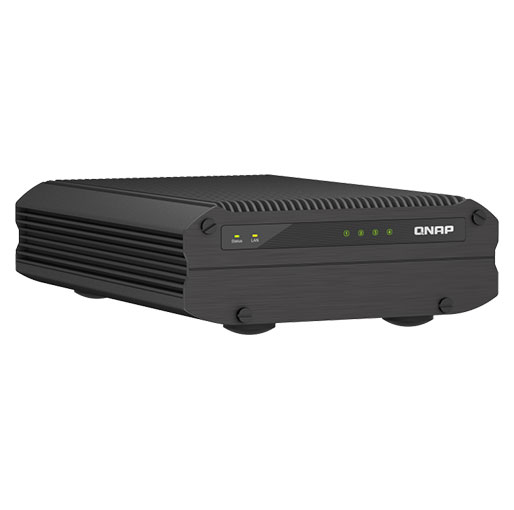

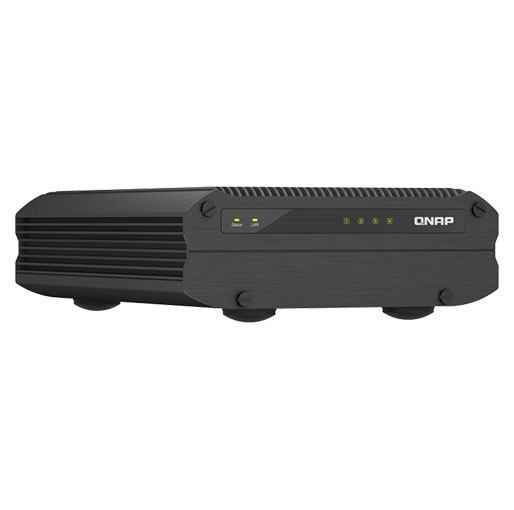

With a fanless design and rock-solid chassis, the TS-i410X industrial grade NAS is designed for harsh environments. The TS-i410X can operate in temperatures of -40 ~ 70 Celsius (-40°F ~ 158°F) while its 9V ~ 36V DC wide-range power supply is ideal for factories, warehouses, transportation, and other rugged operating environments.
