QNAP TVS-872X-i5-8G-US Desktop 8-Bay NAS/iSCSI IP-SAN, Intel® Core™ i5 6-Core Processor, 8GB DDR4 RAM, 10GbE*1 (Base-T), 1GbE*2

QAR 12,611

Availability:

Available on backorder

Delivery within 3 - 4 weeks.( Delivery time may change depending on the stock)
  • 8 x 2.5″/3.5″ SATA | 2 x M.2 2280 PCIe
  • 1.7 GHz Intel Core i5-8400T Six-Core
  • 8GB DDR4 RAM
  • 2 x 1 GbE Ports | 1 x 10 GbE Port
  • USB 3.2 Gen 1 | USB 3.2 Gen 2 Type-A & C
  • RAID 0, 1, 5, 6, 10, 50, 60, JBOD
  • Up to 1167 MB/s Read Speeds
  • Up to 1161 MB/s Write Speeds
  • AES-NI & 256-Bit Volume Encryption
  • QTS 5.0.0 Operating System
  • 8 x 2.5″/3.5″ SATA | 2 x M.2 2280 PCIe
  • 1.7 GHz Intel Core i5-8400T Six-Core
  • 8GB DDR4 RAM
  • 2 x 1 GbE Ports | 1 x 10 GbE Port
  • USB 3.2 Gen 1 | USB 3.2 Gen 2 Type-A & C
  • RAID 0, 1, 5, 6, 10, 50, 60, JBOD
  • Up to 1167 MB/s Read Speeds
  • Up to 1161 MB/s Write Speeds
  • AES-NI & 256-Bit Volume Encryption
  • QTS 5.0.0 Operating System

QAR 12,611

Available on backorder

Order By Call

Order now & Get it delivered Today!!

CPU 1.7 to 3.3 GHz 6-Core
Processor Intel Core i5-8400T (8th Gen)
GPU Intel UHD Graphics 630
Total Installed Memory 8 GB DDR4
User-Replaceable Memory 1 x 8 GB
Total Memory Slots 2 x SO-DIMM
Maximum Memory Capacity 64 GB
Flash Memory 5 GB
General
Number of Bays 8 x 2.5″/3.5″
2 x M.2 (2280)
I/O 2 x RJ45 (Gigabit Ethernet)
1 x RJ45 (10GbE)
1 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
2 x USB Type-A (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s))
2 x USB Type-C (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s))
1 x HDMI Type-A (HDMI 2.0)
Compatible Drive Interface SATA II, SATA III
Media Card Slots None
Form Factor Desktop
RAID RAID 0, 1, 10, 5, 50, 6, 60, JBOD, Single
Hot-Swap Support Yes
PCI Expansion 1 x PCIe 3.0 (x8 Electrical)
1 x PCIe 3.0 (x4 Electrical)
Wake on LAN Yes
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CIFS/SMB
FTP
IPv4
IPv6
L2TP/IPSec
MPIO
NFS
OpenVPN
PPTP
Proxy
Rsync
SFTP
SMTP
SNMP v2
SNMP v3
SSH
SSL
Syslog
TFTP
Telnet
WebDAV
iSCSI
iSCSI LUN 256
iSCSI Target 256
Max Concurrent Connections 2500
Max Folders 512
Max Sync Tasks 500
Max Groups 4096
Max User Accounts 4096
Max Volume Number 128
Max Cameras Supported 5,000
Software
Installed Operating System QTS 5.0.0
Supported File Systems Internal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility macOS 10.10 or Later
Windows 7 or Later
Windows Server 2008 R2 or Later
Ubuntu 14.4 or Later
CentOS 7 or Later
Linux
UNIX
*As of March, 2022: check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Firefox, Safari
Supported Languages Brazilian Portuguese
Czech
Danish
Dutch
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Security
Encryption 256-Bit AES, AES-NI
Security Features Kensington Security Slot, Lockable Bay Door
VPN Client Connections 100
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source AC Adapter
Power Consumption 65.03 W (Typical)
41.47 W (Idle)
PSU Wattage 1 x 250 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95% (Non-Condensing)
Storage Temperature -4 to 158°F / -20 to 70°C
Physical
Status Monitoring LCD Screen, LED Indicator
Audible Alarm Yes
Cooling 2 x 120 mm Fans
2 x 60 mm Fans
Noise Level 24.2 dBA
Built-In Speakers Yes
IR Sensor Yes
Dimensions 12.96 x 11.01 x 7.41″ / 32.92 x 27.97 x 18.82 cm
Weight 15.6 lb / 7.1 kg

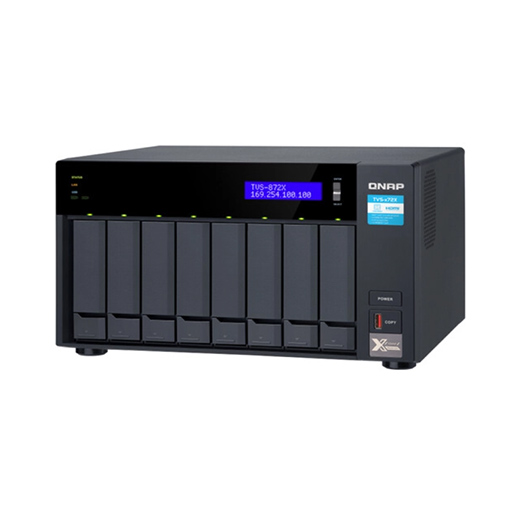

Expand your network’s storage capacity for backups, media streaming, and other demanding applications with the TVS-872X 8-Bay NAS Enclosure from QNAP. Install up to eight 2.5″ / 3.5″ SATA III drives into this desktop enclosure, which supports RAID 0, 1, 5, 6, 10, 50, 60, JBOD, and Single configurations to balance between security and performance. You can also boost performance with up to two M.2 NVMe PCIe solid-state cache drives, which help to deliver up to 1167 MB/s read and 1161 MB/s write speeds. Featuring a 1.7 GHz Intel Core i5-8400T Six-Core processor with integrated Intel UHD 630 graphics and 8GB of DDR4 memory, this NAS enclosure is ideal for high-speed backups, 4K media playback with real-time transcoding, virtual machines, and more.

The TVS-872X connects to your network through two Gigabit Ethernet ports that have link aggregation failover and load balancing support or through its 10G Ethernet port. Additionally, you can secure volumes with hardware-based AES 256-bit encryption and lock the bay doors. Install up to two devices, including graphics cards, multi-Gig network adapters, and NAS enclosure expansion adapters into the available PCIe expansion slots. Three USB 3.2 Gen 1 and Gen 2 Type-A and Type-C ports are also available for compatible peripherals such as additional storage devices. This NAS enclosure uses the QTS 4.5.1 operating system to manage its configuration, data, and run supported applications.

10GbE Connectivity
Connect the 10G RJ45 Ethernet port to compatible devices for bandwidth-intensive tasks such as large backups, data restoration, and media transfers.

Media Streaming
With the integrated graphics and HDMI 2.0 port, you can play and share stored 3840 x 2160 resolution 4K media at 60 Hz with real-time transcoding to connected devices, making the TVS-872X ideal for video production applications and virtual machine hosting.

Security

  • QuFirewall supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on the user’s physical location.
  • WPA2 Enterprise wireless encryption when compatible devices are installed.
  • The Security Counselor portal checks for weaknesses and offers recommendations for enhancing NAS security while offering integrated anti-virus and anti-malware scanning software.

Hybrid Backup Sync
The Hybrid Backup Sync (HBS) system allows you to backup and sync your data to other NAS, servers and cloud storage services for a comprehensive backup.

Snapshots
Snapshot technology creates a full record of the system’s status and data, allowing you to protect against accidental deletion and malware attacks. The TVS-872X-i3-8G supports up to 256 snapshots per volume/LUN, and up to 1,024 snapshots per NAS.

Cloud Access
The myQNAPcloud service allows you to access, manage, and share NAS files via the internet.

USB Connectivity
One 5 Gb/s USB 3.2 Gen 1 Type-A port is available alongside two 10 Gb/s USB 3.2 Gen 2 Type-A and two Type-C ports, allowing you to connect compatible devices such as storage drives, expansion enclosures, and more.
