QNAP TVS-h1688X-W1250-32G 16-Bay NAS Enclosure

QAR 21,193

Availability:

Available on backorder

Delivery with in 3 - 4 weeks.( Delivery time may change depending on the stock)
SKU: TVS-h1688X-W1250-32G

Categories: , ,

  • 12 x 3.5″ + 4 x 2.5″ SATA III Drive Bays
  • 2 x M.2 22110 / 2280 PCIe Drive Slots
  • 3.3 GHz Intel Xeon W-1250 6-Core CPU
  • 32GB ECC DDR4 RAM
  • 4 x 2.5G + 2 x 10G Ethernet Ports
  • USB 3.2 Gen 2 Type-A & Type-C
  • RAID 0, 1, 5, 6, 10, 50, 60, JBOD
  • Triple Parity & Triple Mirror Support
  • Up to 1403 MB/s Sequential Read Speed
  • QuTS Hero 4.5.0 Operating System
  • 12 x 3.5″ + 4 x 2.5″ SATA III Drive Bays
  • 2 x M.2 22110 / 2280 PCIe Drive Slots
  • 3.3 GHz Intel Xeon W-1250 6-Core CPU
  • 32GB ECC DDR4 RAM
  • 4 x 2.5G + 2 x 10G Ethernet Ports
  • USB 3.2 Gen 2 Type-A & Type-C
  • RAID 0, 1, 5, 6, 10, 50, 60, JBOD
  • Triple Parity & Triple Mirror Support
  • Up to 1403 MB/s Sequential Read Speed
  • QuTS Hero 4.5.0 Operating System

QAR 21,193

Available on backorder

Order By Call

Order now & Get it delivered Today!!

CPU 3.3 to 4.7 GHz 6-Core
Processor Intel Xeon W-1250
GPU Intel UHD Graphics P630
Total Installed Memory 32 GB ECC DDR4
User-Replaceable Memory 2 x 16 GB
Total Memory Slots 4 x DIMM
Maximum Memory Capacity 128 GB
General
Number of Bays 12 x 2.5″/3.5″
4 x 2.5″
2 x M.2 (22110)

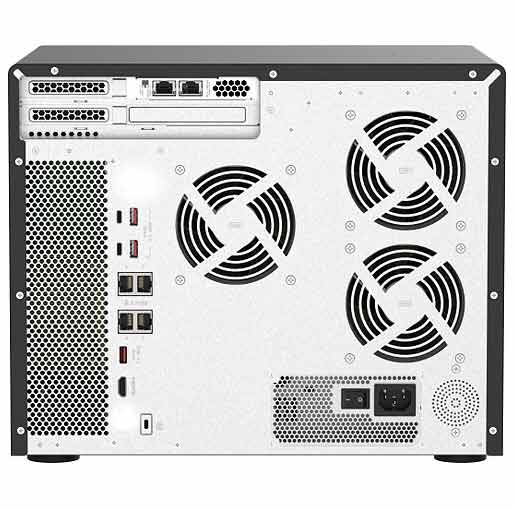

I/O 4 x RJ45 (2.5GbE)
2 x RJ45 (10GbE)
2 x USB Type-C (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s))
4 x USB Type-A (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s))
1 x HDMI Type-A (HDMI 1.4b)
Compatible Drive Interface SATA II, SATA III
Media Card Slots None
Form Factor Desktop
RAID RAID 0, 1, 10, 5, 50, 6, 60, JBOD
Hot-Swap Support Yes
PCI Expansion 1 x PCIe 3.0 (x8 Electrical)
2 x PCIe 3.0 (x4 Electrical)
Wake on LAN Yes
Networking
Supported Protocols AFP
CIFS/SMB
FTP
FTPS
HTTP
HTTPS
IPv4
IPv6
L2TP/IPSec
PPTP
SFTP
SMTP
SNMP v2
SNMP v3
SSH
SSL
Syslog
TFTP
Telnet
WebDAV
iSCSI
iSCSI LUN 256
Max Concurrent Connections 10,000
Max Folders 256
Max Sync Tasks 500
Max Groups 200,000
Software
Installed Operating System QTS 4.5
Supported File Systems Internal: ZFS
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility macOS 10.10 or Later
Windows 7 or Later
Windows Server 2008 or Later
UNIX
Ubuntu 10.4 or Later
CentOS 7 or Later
Linux
*As of July, 2021: check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Edge, Firefox, Internet Explorer, Safari
Security
Encryption 256-Bit AES
Security Features Kensington Security Slot, Lockable Bay Door
VPN Client Connections 100
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source Internal Power Supply
Power Consumption 108.67 W (Typical)
91.26 W (Idle)
PSU Wattage 1 x 500 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95%
Storage Temperature -4 to 158°F / -20 to 70°C
Physical
Status Monitoring LED Indicator
Audible Alarm Yes
Cooling 3 x 80 mm Fans
Noise Level 25.8 dBA
Built-In Speakers None
IR Sensor None
Dimensions 14.56 x 12.59 x 11.96″ / 36.98 x 31.98 x 30.38 cm
Weight 29.6 lb / 13.4 kg

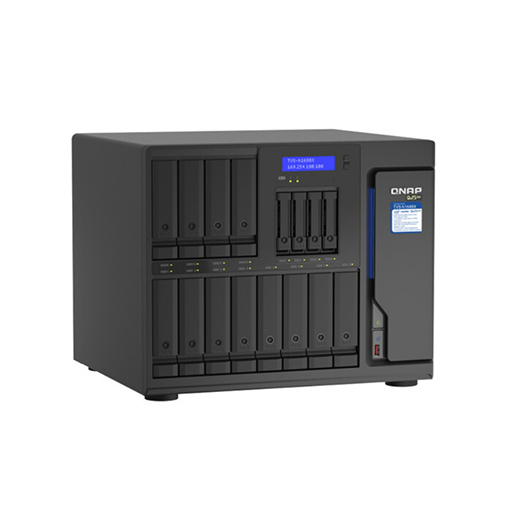

Expand your network storage capacity to support demanding workflows such as video post-production and archiving with the TVS-h1688X-W1250-32G 16-Bay NAS Enclosure from QNAP. This 16-bay NAS enclosure includes twelve 3.5″ and four 2.5″ SATA III drive bays. Installed drives can be configured in RAID 0, 1, 5, 6, 10, 50, or 60 mode with support for triple parity and triple mirror setups for added data security. Performance can be further enhanced by installing up to two M.2 PCIe solid-state cache drives into the available slots. Combined with its 3.3 GHz Intel Xeon W-1250 six-core processor and 32GB of ECC memory, which can be expanded to 128GB, the TVS-h1688X-W1250-32G can deliver sequential read speeds of up to 1403 MB/s. With four 2.5G Ethernet and two 10G Ethernet ports, this NAS enclosure is designed to deliver the bandwidth to support virtualization, intensive file access, large backup and restoration tasks, and media transfers.

PCIe Expansion
Three PCIe 3.0 ports are available for compatible expansions such as Thunderbolt 3 adapters, high-speed network interface cards, and graphics cards. A dual-port 10G Ethernet adapter occupies the PCIe 3.0 x8 slot.

USB 3.2 Gen 2 Support
Connect compatible peripherals to the four USB 3.2 Gen 2 Type-A and two Type-C ports to transfer up to 10 Gb/s directly to the NAS.

Real-Time 4K Transcoding
Connect a compatible 4K, 30 Hz monitor to the HDMI port to watch media in real-time, driven by the integrated Intel UHD Graphics P630 GPU.

High Versatility
The TVS-h1688X-W1250-32G supports virtual machines and containerized apps in addition to centralized storage, backup, sharing, disaster recovery, and storage expansion.

QuTS Hero Operating System
By combining the app-based QTS operating system with the 128-bit ZFS file system, QuTS hero provides flexible storage management, comprehensive data protection, and optimized performance to handle demanding applications including high-bandwidth storage management, virtualization, and collaborative media workflows.
