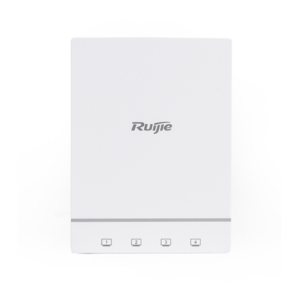

Ruijie RG-AP180 Wall AP Series is a next-generation Wi-Fi 6

SKU: RG-AP180-MNT

Categories: ,

  • The 1st Wi-Fi 6 Enterprise Wall Plate Access Point with Wi-Fi 6 Alliance Certification
  • Built-in IoT Module (Built-in Bluetooth 5.0 and Zigbee) for future Smart of Things integration
  • Hidden Status LED Design – never disturbing your customer comfort
  • Universal wall plate design –mount kit option available for US/EU standard socket
  • Guarantee High Definition (HD) IPTV Application – upto 4 HD TV can be connected via the Gigabit LAN ports
  • OFDMA, MU-MIMO and BSS Technology for minimal wireless signal interference
  • AI Wireless Optimization: one-click optimization powered by Ruijie Cloud and WIS technology
  • Hybrid Management: support standalone AP to over thousands of APs with deployment options of appliances, private cloud or public cloud service
  • Mobility Management: Free mobile app available for RG-MACC-Base private cloud or Ruijie Public Cloud customers

QAR 169

Order By Whatsapp Order By Call

Order now & Get it delivered Today!!

Operating Bands802.11b/g/n/ax :2.4G ~ 2.483GHz

802.11a/n/ac/ax : 5.150~5.350GHz,5.47~5.725GHz,5.725~5.850GHz (vary depending on different countries)

Spatial Streams4 spatial streams, 2×2 MIMO
Transmit Power≤100mw(20dBm, radio transmit power only)
Dimensions116mm * 86mm *40mm
Power SupplySupport PoE

Support local power supply (DC Power adapters should be purchased from third-party vendors separately if needed)

Management Port1 Micro USB port (hidden)
Built-in AntennaBuilt-in low-radiation omnidirectional antenna (antenna gain 3.5dBi)
IoT ProtocolSupport Bluetooth5.0(BLE), Zigbee
Power Consumption<10W



Ruijie RG-AP180 Wall AP Series is a next-generation Wi-Fi 6 (802.11ax) with built-in IoT module wall plate wireless access point designed for hotels, offices and dormitories with Smart IoT integration demands. The RG-AP180 Series has design for universal socket standard with integrated multiple Gigabit Ethernet LAN ports for extended connectivity for IPTV or Office Equipment application purpose. Featuring an exquisite design and easy deployment, the AP can be installed on the junction box without damaging the wall finishes, which offers a better solution for wireless network deployment for scenarios like the hotels.

Ruijie RG-AP180 Wall AP can be centrally managed by Enterprise-grade Ruijie Cloud Service at Lifetime FREE, allowing fast provisioning, flexible authentication and stable wireless even at extreme environment.

The dual-radio dual-band RG-AP180 Series supports concurrent 802.11a/n/ac/ax and 802.11b/g/n/ax. Both 2.4G and 5G support 2 spatial streams concurrently. Equipped with the advanced 802.11ax RF chip, the AP supports MU-MIMO which improves the user experience for multi-user access. The RG-AP180 Series offers 4 100/1000Mbps RJ45 downlink ports, providing optimal wireless network coverage and additional wired network interfaces. The RG-AP180 also integrated with IoT module supporting Bluetooth 5.0 and Zigbee protocol for future Smart Living integration.

Upon the uprising challenges of management efficiency and wireless security, all Ruijie enterprise APs support hybrid management mode. Either deployed as standalone AP (Fat mode) or managed AP (Fit mode), the AP will detect the operation mode automatically without extra effort on firmware upgrade. For additional security and operation, we recommend the enterprise customers to choose either one of the below wireless controller options depending on the functionality and capacity:



  • Public Cloud: Ruijie Cloud – Ruijie Public Cloud service (powered by RG-MACC) is targeted for the SME segment with integrated captive portal, authentication (such as PPSK for employees, Facebook, voucher, account, etc.), and reporting features. Together with Ruijie Cloud Mobile App (free download), SME customers can provision and manage their networks at fingertips.
  • Hybrid Cloud: RG-WS6000 Series Wireless Controller (on-premises) Plus Cloud Management (Optional) – targeted for enterprise office and campus with single or multiple sites and high-density AP deployment. The controller appliances are installed at the customer’s site with fully integrated wireless management and authentication feature, supporting up to 5000 APs per cluster. Optionally, the cloud management platform allows for value-added features like centralized device configuration and monitoring, AI radio (RF) optimization, reporting, etc.
  • Private Cloud: RG-MACC Software Controller – targeted for ISP/MSP, government, or multi-national corporation (MNC) with diverse customer sites and demand on integration of their billing, portal and security systems. The RG-MACC supports unified device management, not only for wireless access points, but also switches and gateway devices.
SKU: RG-AP180-MNT Categories: ,
