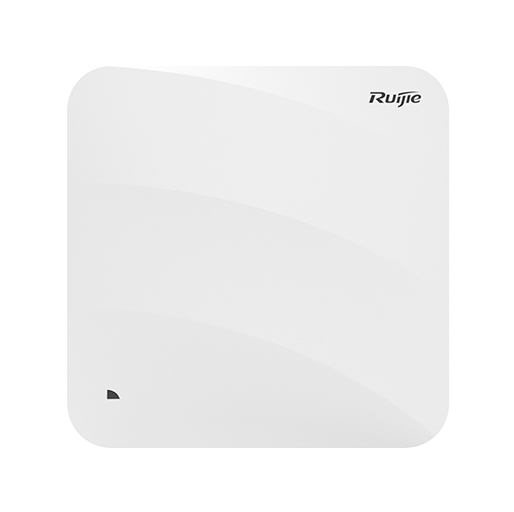

Ruijie RG-AP810-L Wi-Fi 6 Dual-Radio 1775 Mbps Indoor Access Point
QAR 549
QAR 549
Order now & Get it delivered Today!!
| Brand | Ruijie |
| Dimensions and Weight | RG-AP810-L |
| Unit dimensions
(W x D x H) |
220 mm x 220 mm x 49 mm (8.7 in x 8.7 in x 2.0 in) |
| Shipping dimensions
(W x D x H) |
507 mm x 319 mm x 278 mm (20.0 in x 12.6 in x 11.0 in) |
| Unit weight | Device: 0.6 kg (1.33 lbs)
Mounting bracket: 0.07 kg (0.15 lbs) |
| Shipping weight | 1.04 kg (2.29 lbs) |
| Mounting | Wall/Ceiling-mount (A mounting bracket is delivered with the main unit) |
| Lock option | Kensington lock and securing latch |
| Wi-Fi Radio | RG-AP810-L |
| Radio design | Dual-radio
Radio 1: 2.4 GHz, two spatial streams, 2×2 MU-MIMO Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO |
| Operating frequencies | Radio 1, 802.11b/g/n/ax:
● 2.400 GHz to 2.4835 GHz, ISM Radio 2, 802.11a/n/ac/ax: ● 5.150 GHz to 5.250 GHz, U-NII-1 ● 5.250 GHz to 5.350 GHz, U-NII-2A ● 5.470 GHz to 5.725 GHz, U-NII-2C ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM Note: Country-specific restrictions apply. |
| Data rates | Combined peak data rate: 1.775 Gbps
2.4 GHz radio, 574 Mbps ● Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (max.) ● Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical) 5 GHz radio, 1.2Gbps ● Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to 2SS HE80 802.11ax client devices (typical) |
| Data rate set | The following 802.11-compliant data rates in Mbps are supported:
2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24 ,36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT80) ● 802.11ax: 8.6 to 1,200 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) |
| Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
| Antenna type | Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas) |
| Max. antenna gain | 2.8 dBi in 2.4 GHz and 3.6 dBi in 5 GHz
The downtilt angle for the maximum gain is roughly 30 degrees. With reference to the pattern of each antenna of the MIMO radios, the maximum gain of the effective per-antenna pattern is 2.3 dBi in 2.4 GHz and 2.7 dBi in 5 GHz. |
| Max. transmit power | 2.4 GHz radio: 26 dBm (23 dBm per chain)
5 GHz radio: 26 dBm (23 dBm per chain) Note: The transmit power is limited by local regulatory requirements. |
| Power increment | Configurable based on requirement |
| Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
| Modulation types | 802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| Bluetooth Radio | RG-AP810-L |
| Bluetooth | Bluetooth 5.1 |
| Antenna type | 1 x onboard built-in omnidirectional antenna |
| Max. antenna gain | 2.4 dBi, with a downtilt angle of roughly 30 degrees |
| Max. transmit power | 17 dBm (GFSK)
14 dBm (π/4-DQPSK, 8-DPSK) |
| Receive sensitivity | –95.5 dBm (DH5)
–95 dBm (π/4-DQPSK) –87.5 dBm (8-DPSK) |

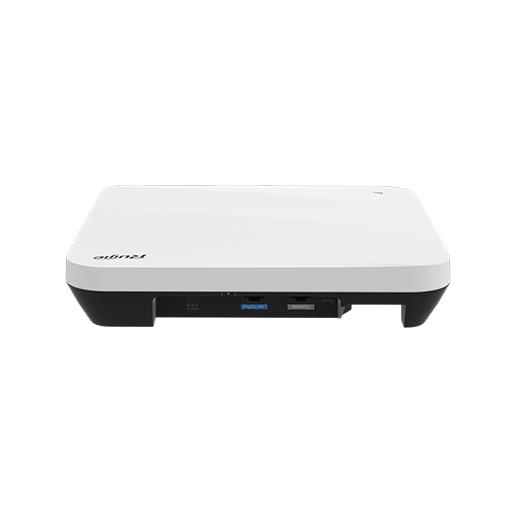

| Ports | RG-AP810-L |
| Fixed service port | Uplink: 1 x 10/100/1000Base-T RJ45 Ethernet port with auto-negotiation
● Compliance with IEEE 802.3af standard (PoE) ● Auto MDI/MDIX crossover ● PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher) ● 802.3az EEE |
| Fixed management Port | 1 x RJ45 console port (serial console port) |
| Status LED | 1 x multi-color system status LED |
| Button | 1 x Reset button
● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Power Supply and Consumption | RG-AP810-L |
| Input power supply | The AP supports the following two power supply modes:
● 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. ● PoE input over PoE-in port: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++). Note: ● If both DC power and PoE are available, DC power is preferred. |
| Power consumption | Max power consumption: 12.95 W
● DC powered: 12.95 W ● PoE powered (802.3af): 12.95 W ● PoE+ powered (802.3at): 12.95 W ● PoE++ powered (802.3bt): 12.95 W ● Idle mode: 6 W |
| Environment and Reliability | RG-AP810-L |
| Temperature | Operating temperature: –10°C to +50°C (14°F to 122°F)
Storage Temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude between 3,000 m (9,843 ft) and 5,000 m (16,404 ft), every time the altitude increases by 220 m (722 ft), the maximum temperature decreases by 1°C (1.8°F). |
| Humidity | Operating humidity: 5% to 95% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing) |
| Environment standard | Storage and shipment environment: NEBS GR-63-CORE_Issue3_2006 GB/T 2423.6-1995 |
| Mean Time Between Failure (MTBF) | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
This ruijie Wi-Fi 6 Dual-Radio 1775 Mbps Indoor Access Point includes
- Wi-Fi 6(802.11ax) indoor wireless access point,
- dual-radio, dual-band, up to 4 spatial streams and maximum of 1.775Gbps wireless
- throughput,
- 1 10/100/1000M BASE-T uplink port,
- support PoE and local power supply;
- Bundled with Ruijie Cloud Service lifetime license (PoE Adapters are sold separately, which could be purchased from Ruijie; While DC adapters should be purchased from third-party vendors separately if needed)
