|Cybenetics Efficiency Level||TBA|
|Cybenetics Noise Level||TBA|
|Form Factor||Intel ATX 12 V|
|Dimensions||140 mm (L) x 150 mm (W) x 86 mm (H)|
|Fan Information||Fan Size||120 mm|
|Fan Control||S3FC – Fanless until 30 % load|
|Fan Bearing||Fluid Dynamic Bearing|
|Life Expectancy||50,000 hours at 40 °C, 15 % – 65 % RH|
|Cable Information||Modularity||Fully Modular|
|Cable type||Flat black cables|
|Electrical Features||Operating Temperature||0 – 40 °C|
|MTBF @ 25 °C, excl. fan||100,000 hours|
|AC Input||Full Range|
|Protection||OPP, OVP, UVP, OCP, OTP, SCP|
|Safety and Environmental||Safety and EMC||cTUVus, TUV, CB, CCC, BSMI, EAC, CE|
|Environmental Compliance||Energy Star, RoHS, WEEE, ErP Lot 6, REACH|
80 PLUS® GOLD
The FOCUS GX achieves 80 PLUS® Gold certification with its 90 % efficiency at 50 % system load.
CABLE-FREE CONNECTION DESIGN
Seasonic’s engineers have implemented a new design feature, where instead of cables; the back panel and the PCB (Printed Circuit Board) are connected by a copper plate. This breakthrough solution not only lowers the chance of production errors during manual insertion but it also improves output power quality.
- Reduced noise without increase in temperature;
- Extended fan life due to the reduced number of fan rotations;
- Optimized heat dissipation at all times;
- Unsurpassed silent performance in Fanless Mode.

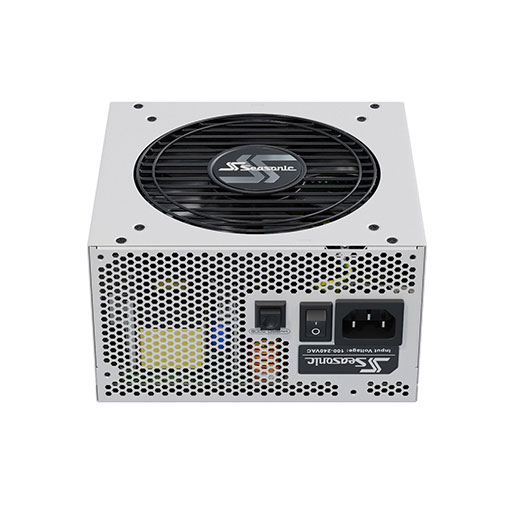

Additionally, there is a switch at the back of the power supply which allows users to customize their cooling needs by selecting between the Seasonic S2FC (fan control without Fanless Mode) and the S3FC (fan control including Fanless Mode).
