|Package Contents||QB ONE
|Weight & Dimensions|
|Dimensions (L x W x H)||36.8 x 22.5 x 18.0 cm|
|USB 3.0 (Front)||2|
|USB 2.0 (Front)||2|
|3.5″ or 2.5″||2|
|Rear Panel||1x 80 mm fan (optional)**|
|Top Panel||1x 120 mm fan (pre-installed) or 1x 240 mm radiator (optional)|
|Max. Length Graphics Cards||31.5 cm|
|Max. Height CPU Cooler||15.0 cm|
|Max. Length Power Supply||14.5 cm|
|Max. Height Radiator incl. Fan||5.0 cm|
|Power Supply||SFX/ATX (not compatible with modular ATX power supplies)|

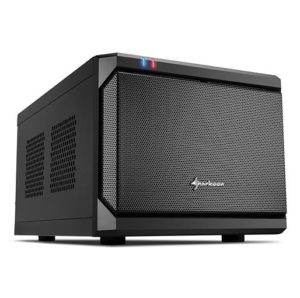

The QB ONE is a compact mini-ITX PC case, which can be positioned both horizontally or vertically. The pre-installed fan can be supplemented with two more optional fans. Alternatively, there is enough space for a radiator. Nevertheless, plenty of space remains for all other components. Even conventional ATX power supplies will fit inside. The discreet design will easily find its place in any setup.
Elegantly Compact. The QB ONE measures only 36.8 x 22.5 x 18 cm and is thus suitable for portable use or as a compact space-saver. The elegant, timeless design lets the case suit any office situation or to be used as a multimedia PC in the living room.
Turn Things on Their Head. The practical design of the QB ONE allows the case to be used either horizontally or vertically. The case can therefore fit even into the smallest niche.

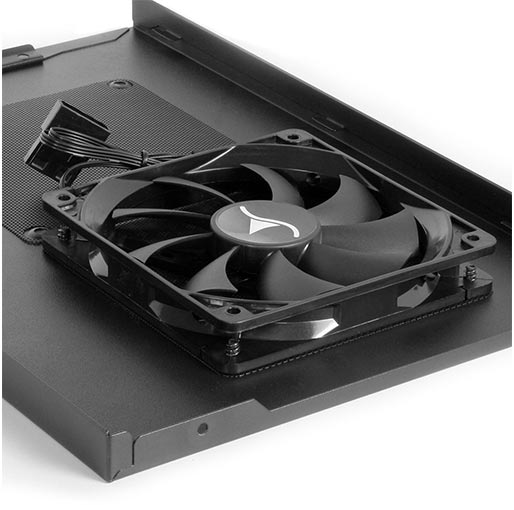

Optimal Airflow. A 120 mm fan is already pre-installed in the top panel. Here, there is the option of installing an additional fan. Alternatively, a 240 mm radiator can be mounted if a water-cooling system is preferred. If this isn’t enough, an 80 mm fan can be installed at the rear. The integrated dust filters protect the installed components from dust and dirt.
Various Possibilities for Installation. The QB ONE offers room for all necessary components with its smart design for arranging space. A dual slot graphics cards with a length of up to 31.5 mm as well an ATX power supply will fit inside. The use of SFX power supplies will provide even more room. In addition, there is room for two 3.5″ HDDs or two 2.5″ SSDs. If a fan is not required at the rear of the case, there is then more room for another 2.5″ SSD.
Quick Connection for Peripherals. The QB ONE has two USB 3.0 and two USB 2.0 ports. For the easy use of headsets, the case also has two audio ports. The ports are always within reach, whether the case has been set up horizontally or vertically.
Mainboard Mini-ITX Max. Length Graphics Cards 31.5 cm Max. Height CPU Cooler 15.0 cm Max. Length Power Supply 14.5 cm Max. Height Radiator incl. Fan 5.0 cm Power Supply SFX/ATX (not compatible with modular ATX power supplies)
