|Interface||PCIe 3.0 x4 with NVMe 1.3|
|Operation Temperature||0˚C ~ 70˚C|
|Storage Temperature||-40˚C ~ 85˚C|
|Performance||Crystal Disk Mark:
1TB Read/Write: up to 3,400/3,000 MB/s
1TB Read/Write: 450K/400K IOPS Max
|Dimensions||80.1(L) x 23.4(W) x 12.9(H) mm|
|Humidity||RH 90% under 40°C (operational)|
|Operating System||1. System Requirements:
Windows 10 / 8.1 / 8 / 7 / Vista
Linux 2.6.33 or later
2. This product has a heat sink, recommended the use of desktop only.
Team T-Force 1TB Cardea II PCIe 3.0 NVMe SSD TM8FP5001T0C110
Out of stock
Out of stock
PCIe Gen3 SSD – A Great Leap Forward In Performance!
The TEAMGROUP T-FORCE series for gaming releases an upgraded gaming M.2 PCIe SSD – CARDEA II. CARDEA II high speed SSD supports the new generation PCIe Gen3 x4 high speed interface and the latest NVMe1.3 protocol. Besides its powerful superior read/write speed, with its outstanding performance of sequential read/write speed up to 3,400/3,000 MB/s(read speed is 25% higher than last generation), and random read/write speed up to 450K/400K IOPS, it is still able to reduce operating delays of the operating system and game/software, and delivers the finest and smoothest gaming experience and an extreme high speed performance without any lag even reading/writing large amounts of game data, complex 3D graphics and motion processing algorithms with fancy special effects, or loading heavy duty video/graphics editing software.
Patent Module Increases Radiating Performance By 15%

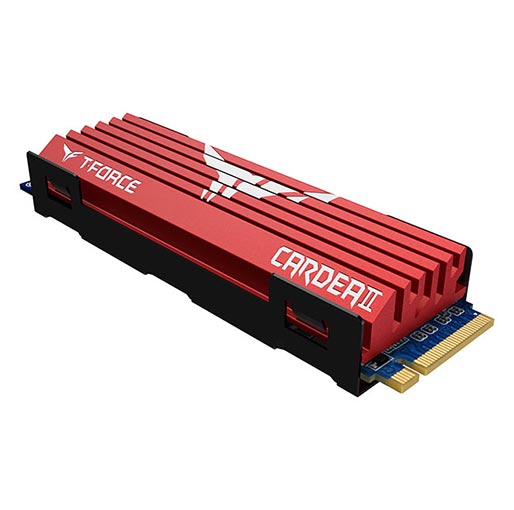

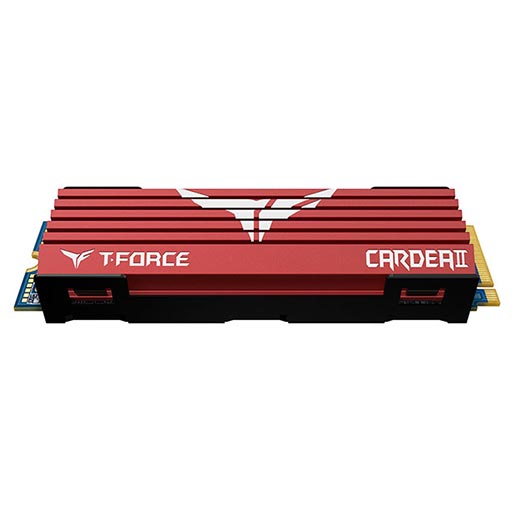

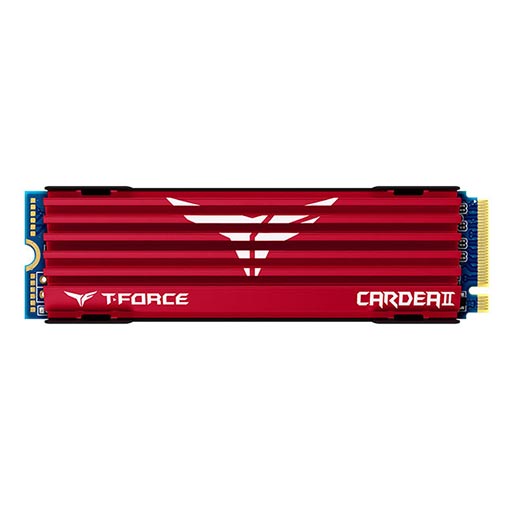

The T-FORCE M.2 PCIe SSD – CARDEA II is a high performance M.2 PCIe SSD product that is specifically designed for gaming and high performance computer. Using TEAMGROUP’s cooling module with patent gaming fin type design, it allows natural convection or forced air cooling (e.g. fan) to enhance radiating. Therefore, when gaming/high performance computer operating at full speed, users don’t have to worry about the heat generated will affect the system performance anymore.
The T-FORCE M.2 PCIe SSD – CARDEA II has passed our long and rigorous internal laboratory tests and burn-in test. Computer using TEAMGROUP’s cooling module with patent gaming fin type design can be cooled down about 30℃ in an open space, and 10℃ in a closed space. The exceptional radiating performance offers the T-FORCE M.2 PCIe SSD – CARDEA II a more stable performance and prolongs the service life effectively.
Superconductivity – Instantaneous Heat Transfer
When the transfer speed is higher than 1,000MB/s, the controller of the M.2 PCIe SSD will endure 70℃ of temperature while the center of the heat of the SSD is located at the controller. The T-FORCE M.2 PCIe SSD – CARDEA II uses superconductivity – thermally conductive adhesive, which has a higher cooling coefficient than ice. The heat at the controller can be averagely transferred to the cooling module through superconductivity – thermally conductive adhesive to speed up the radiating process.
The thermal conductivity of general heat spreaders’ adhesive in the market are K=0.6~0.8. To pursue perfection, and regardless of the cost, The T-FORCE M.2 PCIe SSD – CARDEA II has brought in high coefficient thermally conductive adhesive which researched and produced by Canada. It can enhance cooling module’s performance and make K value above 2; therefore, SSD’s radiating performance can be pushed to the extreme with instantaneous heat transfer.
NVMe – No More Lag
The T-FORCE M.2 PCIe SSD – CARDEA II supports the latest NVMe 1.3 protocol. The system communicates with it through PCI-e bus and connects to the built-in PCI-e controller of the chipset or processor, so the signal transfer is as simple and precise as point to point. The T-FORCE M.2 PCIe SSD – CARDEA II offers you a pleasant high-performance transfer experience, without a bit of lag or delay.
Transfer Speed Is 5 Times Higher Than The SATA III Interface
The T-FORCE M.2 PCIe SSD – CARDEA II uses PCIe Gen3 x4 high speed transfer interface. With the support of PCIe bus bandwidth, it can offer consumers a stable transfer speed of up to 3,400MB/s. The transfer speed is 5 times higher than SATA 6GB/s interface and allows consumers to enjoy the high speed multimedia entertainment experience.
Smart Technology – Dependable Reliability
T-FORCE M.2 PCI-e SSD – CARDEA II supports S.M.A.R.T function and its built-in smart algorithm management mechanism has functions such as GC (garbage collection) and TRIM command which are able to ensure operation efficiency, prolong the service life of the SSD and bring it to its maximum performance. Meanwhile, the powerful Wear-Leveling technology and ECC (Error Correction Code) function improve the accuracy and reliability of data transfer.
