|TYPE||Intel ATX 12V 2.31 & SSI EPS 12V 2.92|
|MAX. OUTPUT CAPACITY||1500W|
|PEAK OUTPUT CAPACITY||1800W|
|PFC (POWER FACTOR CORRECTION)||Active PFC|
|POWER GOOD SIGNAL||100-500 msec|
|HOLD UP TIME||> 16msec at 70% of full load (115Vac/ 230Vac input)|
|INPUT CURRENT||16A – 8A|
|INPUT FREQUENCY RANGE||60Hz – 50Hz|
|INPUT VOLTAGE||100V – 240V|
|OPERATING TEMPERATURE||0 ℃ to +50℃|
|OPERATING HUMIDITY||10% to 90%,non-condensing|
|STORAGE TEMPERATURE||-20 ℃ to +90 ℃|
|STORAGE HUMIDITY||5% to 95%, non-condensing|
|COOLING SYSTEM||14cm RGB Fan|
|EFFICIENCY||MEET 80 Plus Titanium at 115Vac input.|
|MTBF||120,000 hrs minimum|
|SAFETY APPROVAL||CE/FCC/UL/ Bauart Mark+CB/ EAC|
|PCI-E 6+2PIN||PCI-E 6+2pin/ 8pin X10|

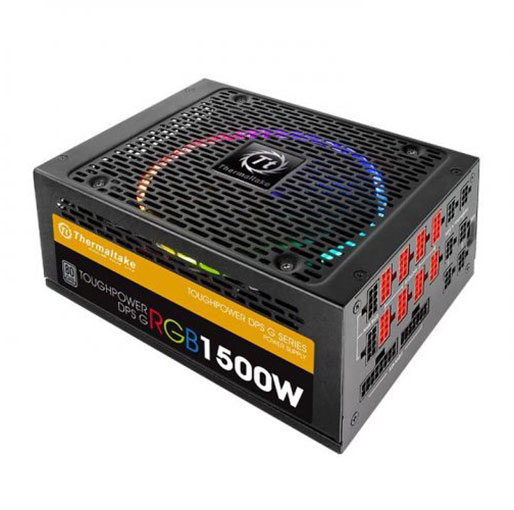

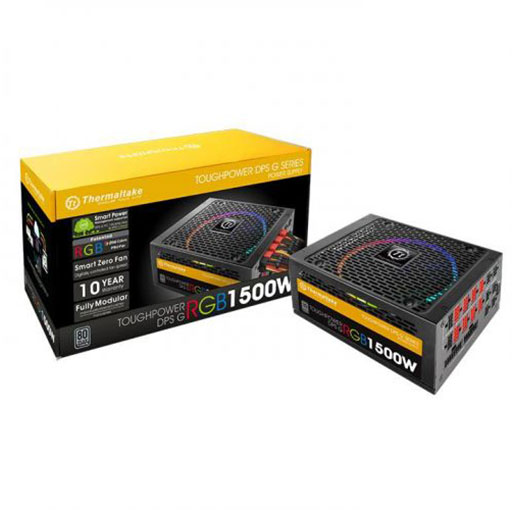

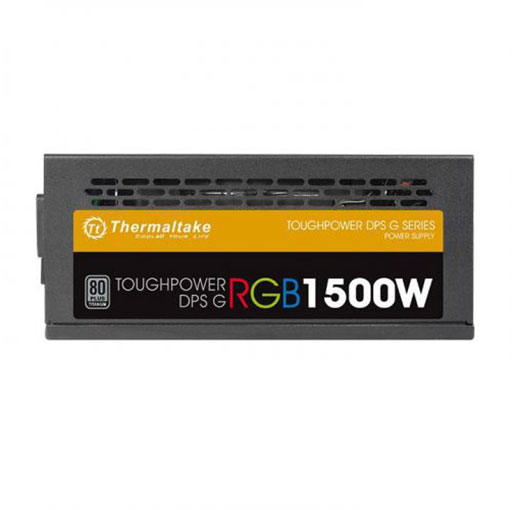

Thermaltake Toughpower DPS G RGB 1500W 80 PLUS TITANIUM Certified Full Modular Active PFC Power Supply
Only 1 left in stock
Only 1 left in stock
Thermaltake Toughpower DPS G RGB 1500W Titanium
The Thermaltake Toughpower DPS G RGB 1500W Titanium is the world’s first PSU pre-installed with a patented RGB fan that incorporate various high-tech components, leading technology and Eco-friendly commendations. Featuring 80 PLUS Titanium certification with individually sleeved cable and flat cable, Toughpower DPS G RGB Titanium Series adopts the highest quality components and fully modular design that always accommodate any mainstream build under any circumstance.
The combination of Toughpower DPS G RGB Titanium and three intelligent platforms – DPS G PC APP 3.0, DPS G Smart Power Management (SPM) Cloud 1.0, and DPS G Mobile APP 1.0 helps users not just monitor smart power supply units, but also save the energy, reduce CO2 emission, and eventually protect the Earth.
DPS G PC APP 3.0 for Digital PSU
The new digital PSU solution DPS G PC APP 3.0 enhances the Smart Power Management(SPM) platform. It allows users for a more comprehensive PSU/PC monitoring and control through an even more user-friendly interface to help you manage and reduce your power consumption.
Real-Time PSU Status Monitoring
Enables users to digitally monitor the key parameters of the power supplies, including efficiency, wattage, voltage, ampere and temperature while using computer.
Pick any colors you like from the Color Palette to show your personality, style and attitude. Change and set LED brightness to fit different occasions.
Real-Time CPU/RAM/Multi-VGA Status
Keep an eye on multiple key parameters in real-time simultaneously- CPU: temperature/loading/fan speed/clock/wattage
Multiple VGA Graphics Cards: temperature/loading/fan speed/clock/wattage of each VGA Graphics Cards RAM: Usage tracking
Hard Disk: Capacity of each hard disk
Smart Zero Fan
Toughpower DPS G RGB Series comes with Smart Zero Fan, which is activated through DPS G PC APP 3.0 and will turn on the fan on around 30% of rated load to minimize the audible noise of your PC and optimize the thermal performance.
The SPM platform comes with real-time warning alert function, which will appear on your DPS G Mobile APP/DPS G Smart Power Management Cloud and also your email when fan failure, PSU over temperature (over 140℉/60℃), or abnormal voltage level (over/under 5% of normal level) occurs. Then users can shut down their PC remotely to avoid further damage.
Save PC energy and electricity cost by scheduling your PC to shutdown at any time you want through DPS G Mobile APP or DPS G Smart Power Management Cloud.

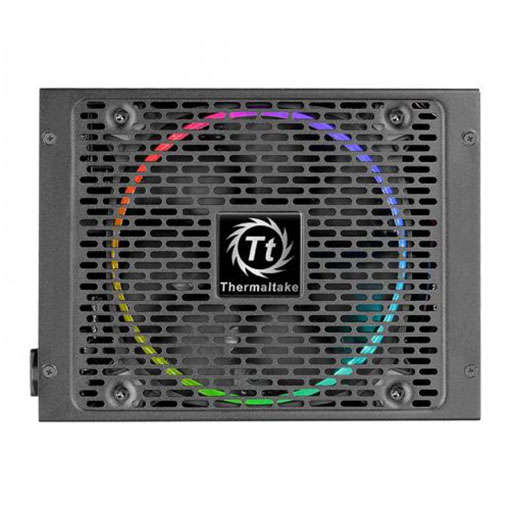

Patented RGB Fan
The first RGB PSU series introduced by Thermaltake install with a patented RGB multi-colored 140mm fan. Users can freely adjust fan speed as well as fan colors digitally through DPS G PC App. The app features four lighting modes: Single Color, Random Color, RGB Cycle, and Blink. The color and brightness uniformity of the multicolored LED ring is visible from all directions and adds style to the chassis.
Power Supply Fan Face-Up Placement for Better Cooling
With the face-up placement of the fan, users can freely gaze upon their patented RGB fan and at the same time obtaining additional performance by using the fan as a additional exhaust mechanism, repelling unwanted heat from your chassis. As the thermal image testing shown, the temperature of PSU and computer system will decrease around 3°C (5.4 °F) by placing PSU face-up.
Concentrated Compression Fan Blade
The fan blade is designed for high static pressure requirements of demanding applications; the concentrated compression blade is engineered to focus the weaker, inner circle of air outward, allowing the outer section to pressurize the air. The fan blades are optimized to enhance static pressure for an impressive cooling performance. Hydraulic bearings for silent operation guarantee ultra-low noise, and the anti-vibration mounting system strengthens the product’s stability during operation. Moreover, In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners.
100% High Quality Japanese Capacitors
The Toughpower DPS G RGB 1500W Titanium features 100% high quality Japanese brand capacitors, which greatly improves the durability and offers the highest stability and reliability.
Fully Modular Cable Design
Fully modular power supply offers cable selection for users while powering the system at an advantageous voltage. Individually sleeved cable and flat cable can make cable management easier, reduce clutter and increase airflow inside the chassis.
Core Component: MCU
Toughpower DPS G RGB 1500W Titanium Series comes with a 32Bit Microcontroller Unit (MCU) from STMicroelectronics. The 32Bit MCU is a small computer on a single integrated circuit containing a processor core, memory, and programmable input/output peripherals. MCU can digitally control devices and processes, such as automobile engine control systems and office machines.
Digital Control Board
Digital power supplies support high-efficiency switching transistors that perform only necessary steps and waste less energy given off as heat. In short, digital power supplies do not dissipate power, which creates waste, and incorporate smaller, lighter transistors. Using smaller parts that work more efficiently enables Thermaltake to craft smaller and lighter power supplies, typically one of the bulkiest components in any PC.
Massive and Dedicated +12V Output
Toughpower DPS G RGB 1500W Titanium is equipped with a powerful single +12V rail.
80 PLUS Titanium-Certified and Kaby Lake-Ready
Toughpower DPS G RGB 1500W Titanium Power Supply with DPS G software delivers up to 94% efficiency under real-world load conditions, promising the lowest power losses. Additionally, Toughpower DPS G RGB 1500W Titanium has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.
TT Power VR Ready
Toughpower DPS G RGB Series power supplies offer stable and sufficient output voltage for multiple VGA cards and high Capability of different VGA cards for VR system.
