|Max. Output Capacity||850W|
|Peak Output Capacity||1020W|
|Dimension ( W / H / D )||150mm(W) x 86mm(H) x 160mm(D)|
|PFC (Power Factor Correction)||Active PFC|
|Power Good Signal||100-500 msec|
|Hold Up Time||> 16msec at 100% of full load|
|Input Frequency Range||50Hz – 60Hz|
|Input Voltage||100V – 240V~|
|Operating Temperature||0°C to + 50°C|
|Operating Humidity||20% to 90%,non-condensing|
|Storage Temperature||-20°C to + 70°C|
|Storage Humidity||5% to 95%, non-condensing|
|COOLING SYSTEM||14cm hydraulic bearing fan|
|Efficiency||Meet 80 PLUS®Gold at 115Vac input.|
|MTBF||120,000 hrs minimum|
|Safety Approval||CE/cTUVus/TÜV SÜD/FCC/BSMI/EAC|
|Protection||OCP, OVP, UVP, OPP, SCP, OTP|
Thermaltake Toughpower GF1 850 Watt Power Supply
Out of stock
Out of stock
Order now & Get it delivered Today!!

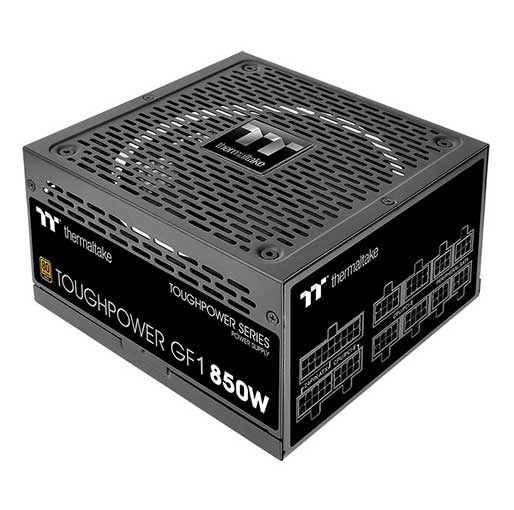

Toughpower GF1 850W – TT Premium Edition
The fully modular Toughpower GF1 series is available in 650W – 850W models and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.
Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.
＜30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.
Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
