|Max. Output Capacity||850W|
|Peak Output Capacity||1020W|
|Dimension ( W / H / D )||150mm(W) x 86mm(H) x 160mm(D)|
|PFC (Power Factor Correction)||Active PFC|
|Power Good Signal||100-500 msec|
|Hold Up Time||> 16msec at 100% of full load|
|Input Frequency Range||50Hz – 60Hz|
|Input Voltage||100V – 240V~|
|Operating Temperature||0°C to + 40°C|
|Storage Temperature||-40°C to + 70°C|
|Storage Humidity||20% to 95%, non-condensing|
|COOLING SYSTEM||14cm hydraulic bearing fan|
|Efficiency||Meet 80 PLUS®Gold at 115Vac input.|
|MTBF||100,000 hrs minimum|
|Protection||OCP, OVP, UVP, OPP, SCP, OTP|

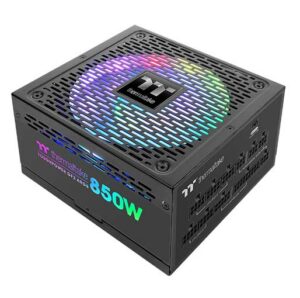

Toughpower GF2 ARGB 850W Gold
Toughpower GF2 ARGB 850W Gold is constructed with premium components and advanced technology which makes this PSU become a reliable and stable power supply unit. The patented 16.8 million-color Riing Duo 140mm RGB fan with 18 LEDs preinstalled helps deliver brighter and richer lighting. The meticulously designed RGB side panels allow the light to glow through from every angles. The Toughpower GF2 ARGB 850W Gold supports synchronization with motherboard RGB software from ASUS, GIGABYTE, MSI, and ASRock for various illumination poossibilities. With an ample 10-year warranty, the Toughpower GF2 ARGB 850W Gold is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.

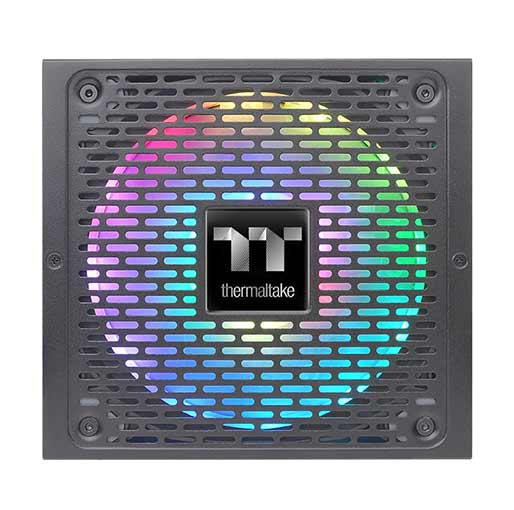

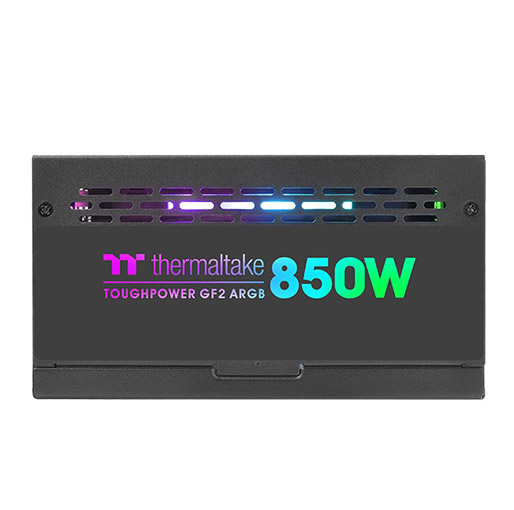

ARGB Side Panels and Riing Duo 140mm RGB Fan
Show off the glamorous illumination through the unique ARGB Side Panel design, enables you to enjoy the RGB glory from every angel. Moreover, the built-in Riing Duo 140mm RGB Fan features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors.
Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

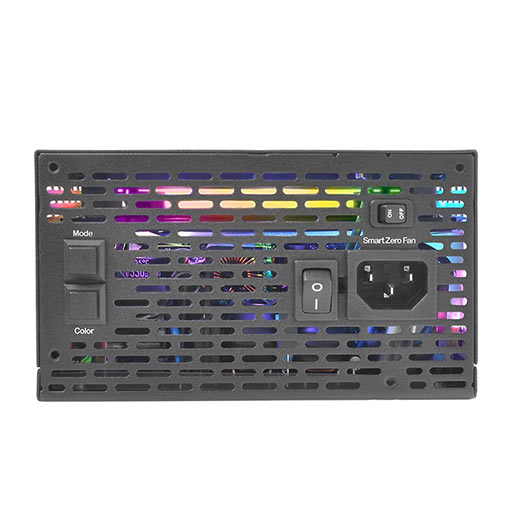

Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
＜30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

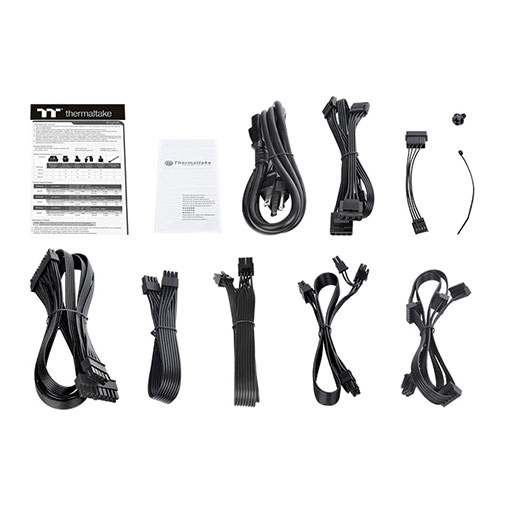

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF2 ARGB 850W Gold saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
CYBENETICS – EFFICIENCY LEVEL CERTIFICATION – PLATINUM & GOLD
Toughpower GF2 ARGB 850W is certified to CYBENETICS PLATINUM in 115V input and GOLD in 230V input in terms of efficiency level. The overall efficiency rating is defined as ≥89% & <91% of 115V input and ≥89% & <91% of 230V input. There are six ETA certifications, covering an efficiency range from 82%. Besides the overall efficiency of a PSU, ETA also takes into account its overall Power Factor readings along with the efficiency of the 5VSB rail and the power that the unit consumes in standby (also called phantom power).
CYBENETICS – NOISE LEVEL CERTIFICATION – STANDARD++
Toughpower GF2 ARGB 850W Gold is certified to CYBENETICS STANDARD++ in terms of noise level. There are seven noise level certifications, covering from dead silent PSUs (<15db[A]) to quiet noisy ones(>40 db[A]). We use a solid methodology and states of the art equipment to measure the noise that a PSU outputs throughout its entire operation range, from almost zero noise output to full load
