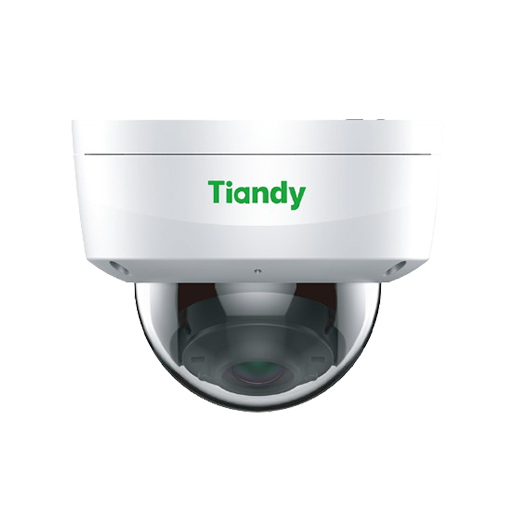

Tiandy 8MP Fixed Starlight IR Dome Camera
, ,

Tiandy 8MP Fixed Starlight IR Dome Camera

SKU: TC-C38KS

Categories: , ,
Add to Wishlist
  • Brand:Tiandy
  • Colour:White
  • Metal+Plastic Housing
  • Up to 3840×2160@20fps

QAR 409

Order By Whatsapp Order By Call

Order now & Get it delivered Tomorrow!!

Camera
Image Sensor1/2.8″Cmos
Min. IlluminationColor:0.002lux@(F1.6,Agc On),B/W:0lux With Ir
Shutter Time1s-1/100000s
Day&NightIr-Cut Filter With Auto Switch (Icr)
Wdr120db
S/N>42db
Angle Adjustment0-330°;0-75°;0-350°
Lens
Lens TypeFixed
Focal Length2.8mm
Lens MountM12
Aperture RangeF1.6,Fixed
Field Of View105.3°(H);56.9°(V);119.7°(D)
Dori DistanceDetect:77m
Observe:30.5m
Recognize:15.5m
Identify:7.5m
Illuminator
Ir Leds8
Ir Distance30m
Wavelength850nm
White LedsN/A
Whitelight DistanceN/A
Compression Standard
Video CompressionS+265/H.265/H.264b/H.264m/H.264h/Motion Jpeg
Video Bit Rate32k-16mbps
Audio CompressionG.711a/G.711u/Adpcm_D/Aac_Lc
Audio  Sampling Rate8khz/32khz/48khz
Max. Resolution3840×2160@20fps
Main StreamPal:20fps(3840×2160,3072×2048),25fps(2560×1440,2304×1296,1920×1080,1280×720)
Ntsc:20fps(3840×2160,3072×2048),30fps(2560×1440,2304×1296,1920×1080,1280×720)
Sub StreamPal:25fps(704×576,704×288,352×288,640×360)
Ntsc:30fps(704×480,704×240,352×240,640×360)
Third StreamPal:25fps(704×576,704×288,352×288,640×480)
Ntsc:30fps(704×480,704×240,352×240,640×360)
BlcYes
HlcYes
AgcYes
3d DnrYes
White BalanceAuto/Semi-Auto/Manual/Sunny/Natural Light/Warm Light/Sodium Lamp/Incandescent Lamp/Locked White Balance
Roi8 Regions
Corridor ModeYes
EisN/A
Osd5regions;16*16/32*32/48*48/64*64/96*96
Picture Overlay1 Region
Privacy Mask4 Regions
DefogYes
Feature
Alarm TriggerMotion Detection;Mask Alarm;Voltage Alarm;Disk Full;Disk R/W Error;Ip Address Conflict;Mac Address Conflict;Ftp Server Exception
Linkage MethodSend Email;Trigger Recording;Trigger
Capture;Notify Surveillance Center
Video AnalyticsHuman/Vehicle Classification;Tripwire;Perimeter
Rules Of Behavior Analyse In 1 Scene8
Early Warning(Ew)N/A
Auto-TrackingN/A
Face ModeN/A
Face Detection PerformanceN/A
Network
AnrAnr
ProtocolsHttp;Https;Tcp/Ip;Udp;Upnp;Icmp;Igmp;Snmp;Dhcp;Dns;Ddns;Easy Ddns;Ntp;Smtp;Ssl;802.1x;Qos;Ipv4;Ipv6;Pppoe;Ssh;Unicast;Multicast;Rtcp;Arp;Srtp;Rtsp;Ftp;Sftp;Nas
System CompatibilityOnvif Profile S/T/G;Cgi;Mil Stone;Rtmp
Remote Connection≤2
ClientEasy7 Smart Client
Moblie ClientEasylive Plus
WebIe10+;Firefox52+;Edge89+;Safari11+;Chrome57+
Interface
Communication Interface1 Rj45 10m/ 100m Self Adaptive Ethernet Port
Audio I/ON/A
Alarm I/ON/A
Built-In MicYes
Built-In SpeakerN/A
Reset ButtonYes(Built-In)
On-Board StorageBuilt-In Micro Sd Card Slot, Up To 512 Gb
Additional InterfacesN/A
General
Web Client Language19languages
Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature-40℃-65℃
Operating Humidity0-95%
Storage Temperature-40℃-65℃
Storage Humidity0-95%(Non-Condensing)
Power SupplyDc12v±25%,Max 6w;Poe 802.3af,Max 7.5w
ProtectionSurge Protection 2000v;Lightning Proof 6000v;Ip66;Ik10
Boundary Dimensions120(L)120(W)90(H)Mm
Package Dimensions140(L)140(W)120(H)Mm
Grossweight0.61kg
Netweight0.41kg



Tiandy 8MP Fixed Starlight IR Dome Camera

  • Metal+Plastic Housing
  • Up to 3840×2160@20fps
  • S+265/H.265/H.264/M-JPEG
  • Min. illumination Color: 0.002Lux@F1.6
  • 120dB WDR
  • Smart IR, IR Range: 30m
  • Support tripwire and perimeter
  • Built-in Mic, support max 512G Micro SD Card
  • Operating Conditions -40℃~65℃, 0~95% RH
  • DC12V,POE
  • IP66, IK10
