|Interface||1 × 10/100/1000 Mbps LAN/WAN Port
3 × 10/100/1000 Mbps LAN Ports
1 × Micro SIM Card Slot
|Button||WPS/Reset Button, WiFi On/Off Button, Power On/Off Button|
|External Power Supply||Power Adapter: : Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 1.5A
|Dimensions ( W x D x H )||202 × 141 × 33.6 mm (7.95 × 5.55 × 1.32 in)|
|Antenna||2 × Detachable 4G LTE Antennas|
|Wireless Standards||IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz|
|Frequency||2.4 GHz and 5 GHz|
|Signal Rate||300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz|
|Reception Sensitivity||5 GHz: 11a 54M: -77 dBm
11ac HT20: -73 dBm
11ac HT40: -68 dBm
11ac HT80 : -64 dBm
11n HT20: -77 dBm
11n HT40: -73 dBm
2.4 GHz: 11g 54M: -74 dBm
11n HT20: -72 dBm
11n HT40: -69 dBm
|Transmit Power||< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)|
|Wireless Functions||Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics|
|Wireless Security||64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions|
|Network Type||4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)Carrier Aggregation:
|Quality of Service||Bandwidth Control|
|Security||DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control|
|WAN Type||Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)|
|Management||TP-Link Cloud, Local Management, Remote Management|
|DHCP||Server, DHCP Client List, Address Reservation|
|Port Forwarding||ALG, Virtual Server, Port Triggering, UPnP, DMZ|
|Dynamic DNS||TP-Link, DynDns, NO-IP|
|VPN||PPTP VPN, OpenVPN|
|Access Control||Parental Control, Local Management Control|
|Guest Network||2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1|
|Package Contents||4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router Archer MR600
RJ45 Ethernet Cable
Quick Installation Guide
|Environment||Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Enjoy 4G+ Speed Sharing Everywhere

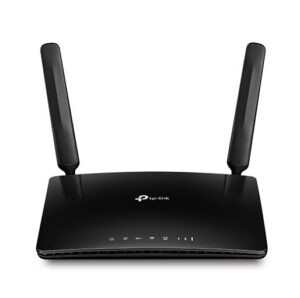

4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

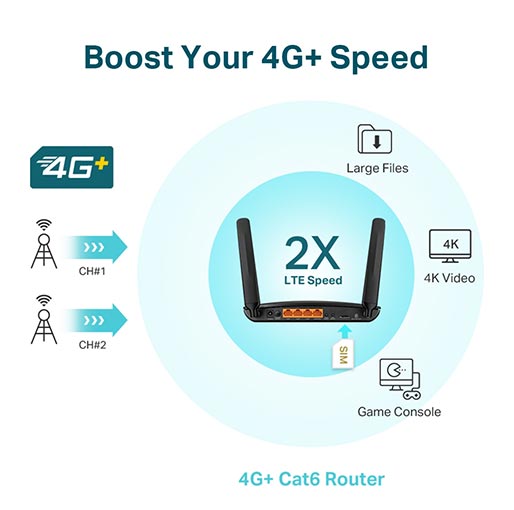

Archer MR600 Boost Your 4G+ Speed
Supports the 4G+ Cat6, which used Carrier Aggregation technology to boost the data speeds of up to 300 Mbps. Plug your SIM card and enjoy HD movies without interruption, downloading files in seconds, and smooth online gaming.
Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remote.
Reliable Network with MU-MIMO:
More Data Streams, More Speeds for Devices
MU-MIMO technology has multiple devices connect to the Internet at the same time, reducing waiting time, increasing WiFi throughput for every device and boosting the efficiency of each data stream. With MU-MIMO supported, Archer MR600 provides users with faster network, less interference and lower latency.
Support TP-Link OneMesh™
Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
*OneMesh Range Extender or Powerline Adapter sold separately.

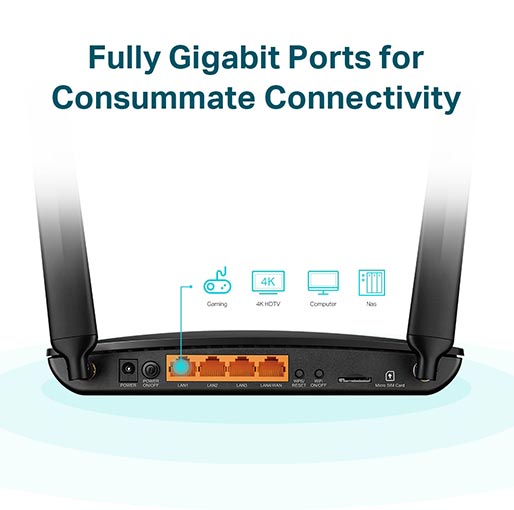

Fully Gigabit Ports for Consummate Connectivity
Fully gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices
such as your smart TV, game console, NAS, and more.
Reliable Access for Up to 64 Devices Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same
time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.
Easy Setup and Management
Set up the Archer MR600 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
