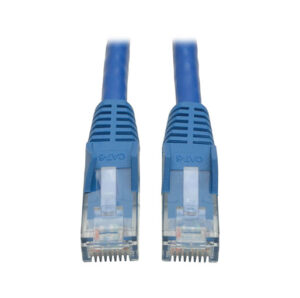

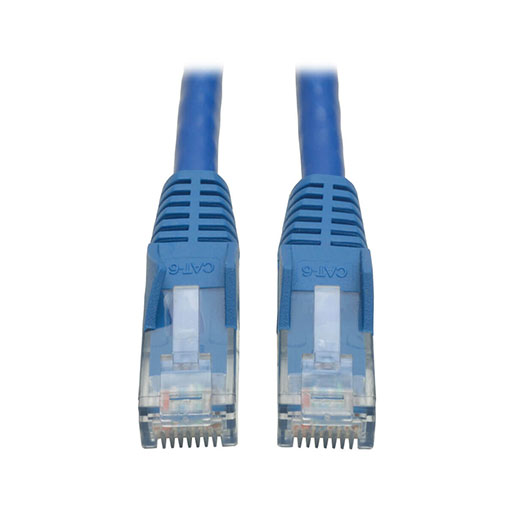

Tripp Lite Cat6 Gigabit Snagless Molded (UTP) Ethernet Cable (RJ45 M/M), Blue, 5 ft. (1.52 m)

QAR 39

Availability:

Out of stock


  • Meets Category 6 cabling standards.
  • Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, and ETL (Category 6, draft 11)
  • Drastically reduce impedance and structural return loss compared to standard 100Mhz wire.
  • Snagless boots protect the locking tabs on the RJ45 connectors from being damaged during installation
  • Feature molded connectors with integral strain relief. Rated for 550 MHz/1 Gbps communication.
  • Meets Category 6 cabling standards.
  • Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, and ETL (Category 6, draft 11)
  • Drastically reduce impedance and structural return loss compared to standard 100Mhz wire.
  • Snagless boots protect the locking tabs on the RJ45 connectors from being damaged during installation
  • Feature molded connectors with integral strain relief. Rated for 550 MHz/1 Gbps communication.

QAR 39

Out of stock

UPC Code 037332099839
Technology Cat6
PHYSICAL
Color Blue
Cable Shielding UTP
Cable Jacket Material PVC
Cable Jacket Rating CM
Number of Conductors 4 Pair
Conductor Material Stranded Copper
Conductor Gauge 24 AWG
Cable Length (m) 1.5
Cable Length (cm) 152.4
Shipping Dimensions (hwd / cm) 17.78 x 22.86 x 1.27
Shipping Weight (kg) 0.09
COMMUNICATIONS
Bandwidth per TIA Standard 250 MHz
Maximum Bandwidth as Tested 500 MHz
Maximum Data Rate 1Gbps
Network Speed 1Gbps
CONNECTIONS
Side A – Connector 1 RJ45 (MALE)
Side B – Connector 1 RJ45 (MALE)
Connector Type Molded; Snagless
Wiring Configuration EIA/TIA 568B
FEATURES & SPECIFICATIONS
Cable Style Unshielded; Molded; Snagless
SPECIAL FEATURES
IP68 Rated No
Snagless Connector Yes
Antibacterial No
STANDARDS & COMPLIANCE
Certifications RoHS-Compliant
Approvals IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801, and ETL (Category 6, draft 11)

Features

  • Meets category 6 cabling standards
  • Premium cabling for category 6, category 5e and category 5 applications
  • Length: 5 ft./Color: blue/Connectors: RJ45 male
  • Drastically reduce impedance and structural return loss compared to standard 100MHz wire
  • High-quality copper wire and a staggered-pin plug design to keep near-end crosstalk levels to a minimum

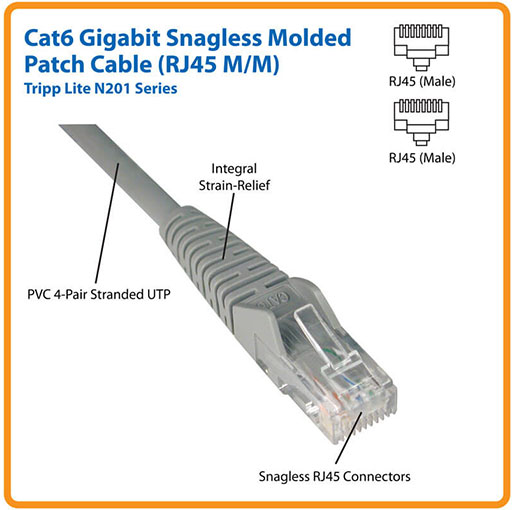

  • Feature molded connectors with integral strain relief
  • Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation
  • PVC 4-pair stranded UTP
  • Deliver stable performance up to 550MHz/1 Gbps communication
  • Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)
  • Available in other colors and lengths

System Requirements

  • For 1000 Base-T (1Gbps Ethernet), 10/100 Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring TYPE 3 applications as well as EIA/TIA applications.

Package Includes

  • 5-ft. Cat6 Blue Gigabit Patch Cord Snagless Molded
