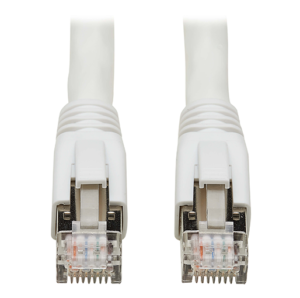

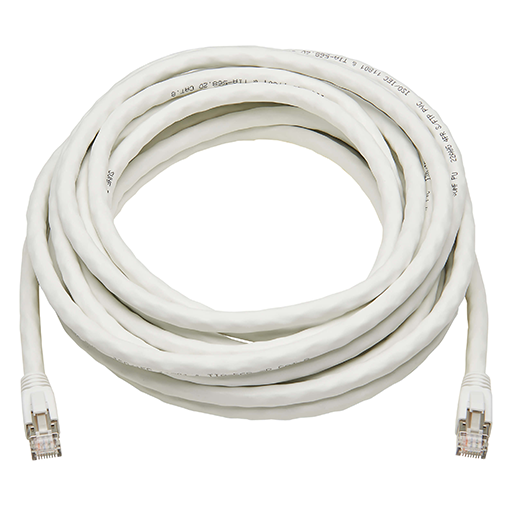

Tripp Lite Cat8 25G/40G-Certified Snagless Shielded S/FTP Ethernet Cable (RJ45 M/M), PoE, White, 30 ft. (9.14 m)

QAR 379

Availability:

In stock

SKU: N272-030-WH

Categories: ,

  • Certified Cat8 S/FTP Ethernet cord rated for 40 Gbps networks—4x faster than Cat6a
  • Supports PoE to save you expense and effort of powering PoE devices individually
  • Dispels EMI/RFI line noise that can destroy data and affect equipment performance
  • Snagless RJ45 connectors prevent tabs from being damaged during installation
  • White PVC jacket allows fast, easy identification in a crowded rack or workstation
  • Certified Cat8 S/FTP Ethernet cord rated for 40 Gbps networks—4x faster than Cat6a
  • Supports PoE to save you expense and effort of powering PoE devices individually
  • Dispels EMI/RFI line noise that can destroy data and affect equipment performance
  • Snagless RJ45 connectors prevent tabs from being damaged during installation
  • White PVC jacket allows fast, easy identification in a crowded rack or workstation

QAR 379

In stock

Order By Call

Order now & Get it delivered Today!!

PHYSICAL

Cable Jacket Color White
Cable Jacket Material PVC
Cable Jacket Rating CM
Cable Shielding S/FTP
Cable Outer Diameter (OD) 8.0mm
Number of Conductors 4 Pair
Conductor Material Solid Copper
Conductor Gauge 22 AWG
Cable Length (ft.) 30
Cable Length (in.) 360

ENVIRONMENTAL

Operating Temperature Range 14 to 122 F (-10 to 50 C)
Storage Temperature Range -5 to 140 F (-15 to 60 C)
Operating Humidity Range 0% TO 90% RH, Non-Condensing
Storage Humidity Range 0% TO 90% RH, Non-Condensing

COMMUNICATIONS

Bandwidth per TIA Standard 1000 MHz
Maximum Bandwidth as Tested 1200 MHz
Network Compatibility 40 Gbps
IEEE Standards Supported 802.3bt

CONNECTIONS

PoE Capability 60W (802.3bt)
Side A – Connector 1 RJ45 (MALE)
Side B – Connector 1 RJ45 (MALE)
Crossover Wiring No
Connector Plating Nickel
Contact Plating Gold
Connector Type Snagless
Wiring Configuration EIA/TIA 568B

FEATURES & SPECIFICATIONS

IP68 Rated No
Snagless Connector Yes

STANDARDS & COMPLIANCE

Product Compliance RoHS; IEEE 802.3bt PoE++; REACH

High-Speed Cat8 S/FTP Ethernet Cable Up to 4 Times Faster Than Cat6a
This certified Cat8 cable transmits 40 Gbps data, voice and audio/video through high-speed 40G equipment, including network switches, modems, routers, adapters, hubs and patch panels. Not only is its 40 Gbps data transfer speed four times that of Cat6a cable, but this Cat8 cable also supports bandwidth up to 2 GHz (2000 MHz) for carrying information and streaming video with no lag.

Supports Power over Ethernet (PoE) to Cut Down on Power Supplies
Because this Cat8 shielded cable supports PoE, it can supply the power to operate compatible PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
EMI (electromagnetic interference) and RFI (radio frequency interference) line noise is a common cause of performance problems. The 22 AWG S/FTP (shielded foiled twisted pair) cable’s foil shielding blocks disruptive line noise that can disturb your electronics and inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Near-end crosstalk (NEXT) levels are practically eliminated, so you don’t have to worry about keeping your cables separated in crowded pathways or spend valuable time on field testing.

Snagless RJ45 Male Connectors Add Extra Protection During Installation
The RJ45 connectors’ snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief provides extra flexibility, reduces stress and helps the cable move freely without cracking or breaking loose from the connector.

Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
This Cat8 Ethernet cable features a durable white PVC jacket. The color-coding allows easy, fast identification in a crowded rack, patch panel or workstation, preventing the cable from becoming accidentally disconnected.
