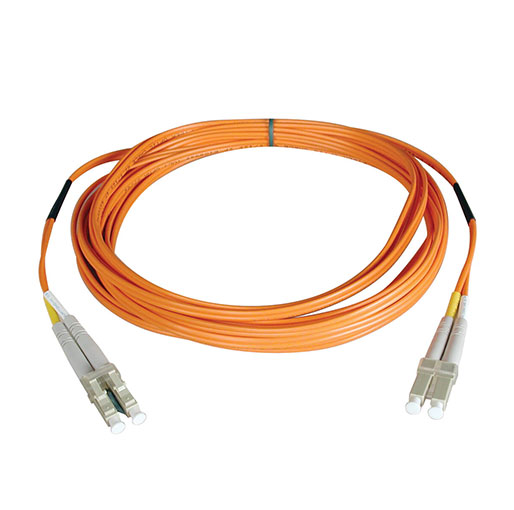

Tripp Lite Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 5M (16 ft.)
,

Tripp Lite Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 5M (16 ft.)

QAR 79

Availability:

In stock

SKU: N520-05M

Categories: ,
Add to Wishlist
  • Premium PVC multimode patch cables
  • Attenuation loss meets or exceeds the latest industry standards
  • Higher bandwidth optimized for gigabit and 10Gbps networks
  • Backward compatible with 62.5 micron fiber
  • Built-in headroom for future applications
  • Premium PVC multimode patch cables
  • Attenuation loss meets or exceeds the latest industry standards
  • Higher bandwidth optimized for gigabit and 10Gbps networks
  • Backward compatible with 62.5 micron fiber
  • Built-in headroom for future applications

QAR 79

In stock

Order By Call

Order now & Get it delivered Today!!

  Ask a Question
UPC Code 037332119506
Technology Multimode
Optical Mode
OM2
PHYSICAL
Cable Jacket Color Orange
Connector Color Gray
Cable Jacket Material LSZH
Cable Jacket Rating OFNR
Clad Diameter (microns) 125
Core Diameter (microns) 50
Number of Fibers 2
Cable Length (ft.) 16.4
Cable Length (in.) 196.9
Minimum Bend Radius 20MM (Dynamic); 10MM (Static)
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (lbs.) 0.07
ENVIRONMENTAL
Operating Temperature Range -4 to 140 °F (-20 to 60 °C)
Storage Temperature Range -4 to 140 °F (-20 to 60 °C)
Operating Humidity Range 5% to 85% RH, Non-Condensing
Storage Humidity Range 35% to 65% RH, Non-Condensing
COMMUNICATIONS
Network Compatibility 1 Gbps (Gigabit); 10 Gbps; 25 Gbps
Attenuation @ 850NM 3.0dB/Km
Insertion Loss
≤0.20dB
CONNECTIONS
Side A – Connector 1 LC DUPLEX (MALE)
Side B – Connector 1 LC DUPLEX (MALE)
Endface Polish PC
STANDARDS & COMPLIANCE
Product Compliance RoHS; REACH



  • Constructed with 50/125 micron cable
  • Length – 5M
  • Use on fiber and fibre channel installations
  • LC male to LC male connectors
  • Higher bandwidth optimized for gigabit and 10Gbps networks
  • Backward compatible with 62.5 micron fiber
  • Built-in headroom for future applications
  • Number of fibers: 2
  • Fiber type: all glass graded index
  • Core diameter: two 50+/-3 microns
  • CLAD diameter: 125+/-2 microns
  • Primary coating diameter: 245+/-15 microns
  • Primary coating material: acrylate
  • Secondary coating diameter: 900+/-50 microns
  • Secondary coating material: PVC
  • Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
  • Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
  • Numeric aperture: .275 nominal
  • Proof test level: 100,000 PSI
  • Insertion loss testing performed on every connector (0.2db typical) and provided with cable
  • Beveled edge on ends of glass makes insertion of plug a breeze
